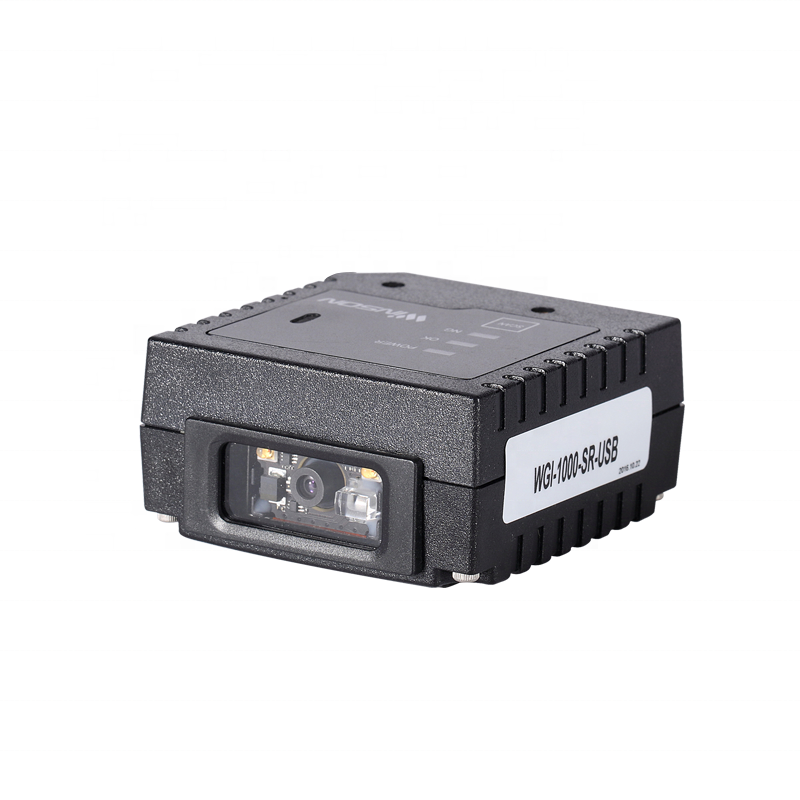

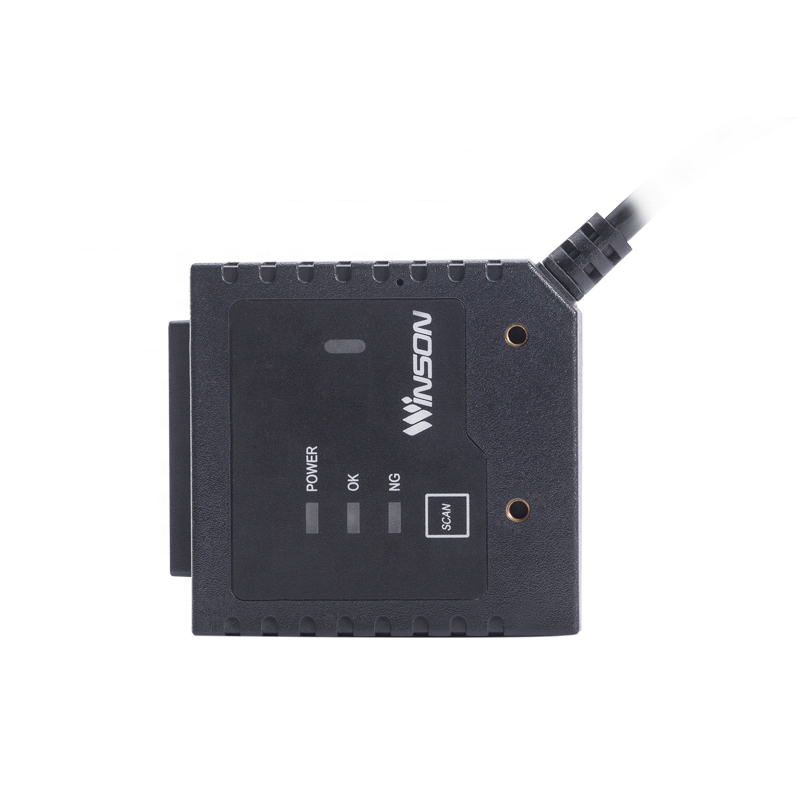

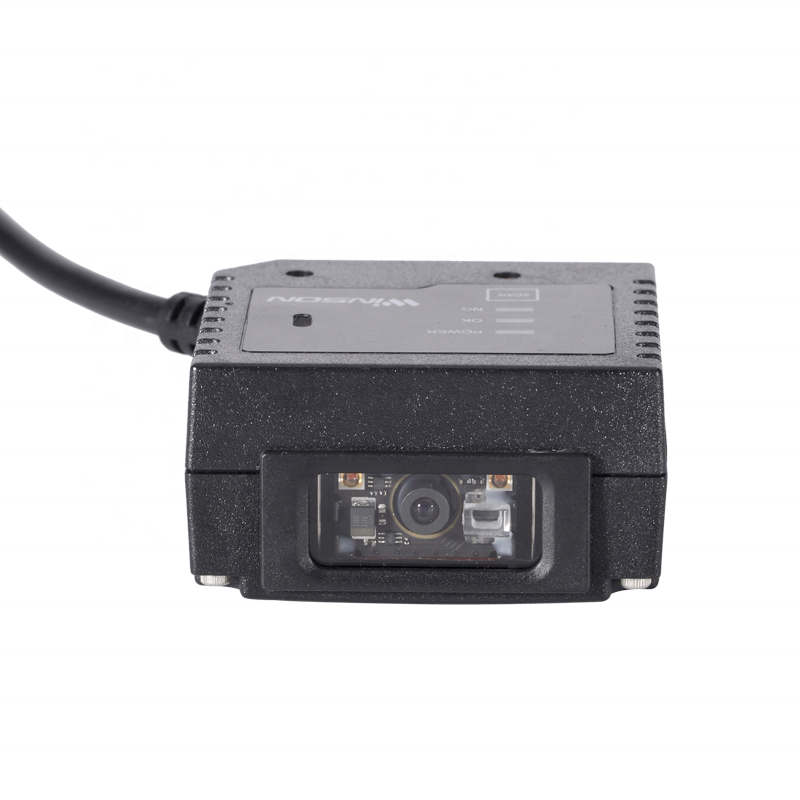

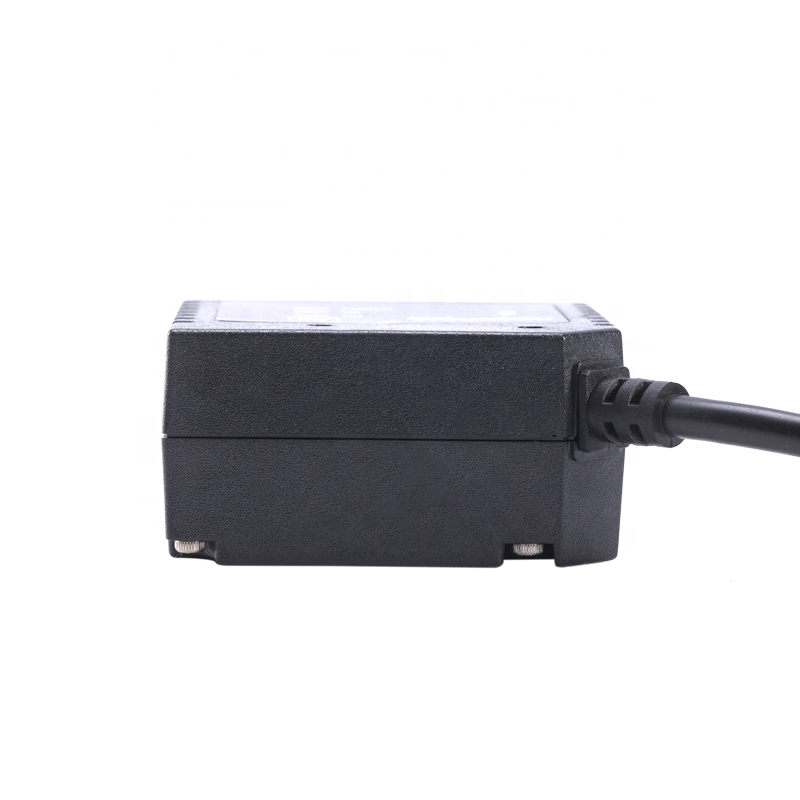

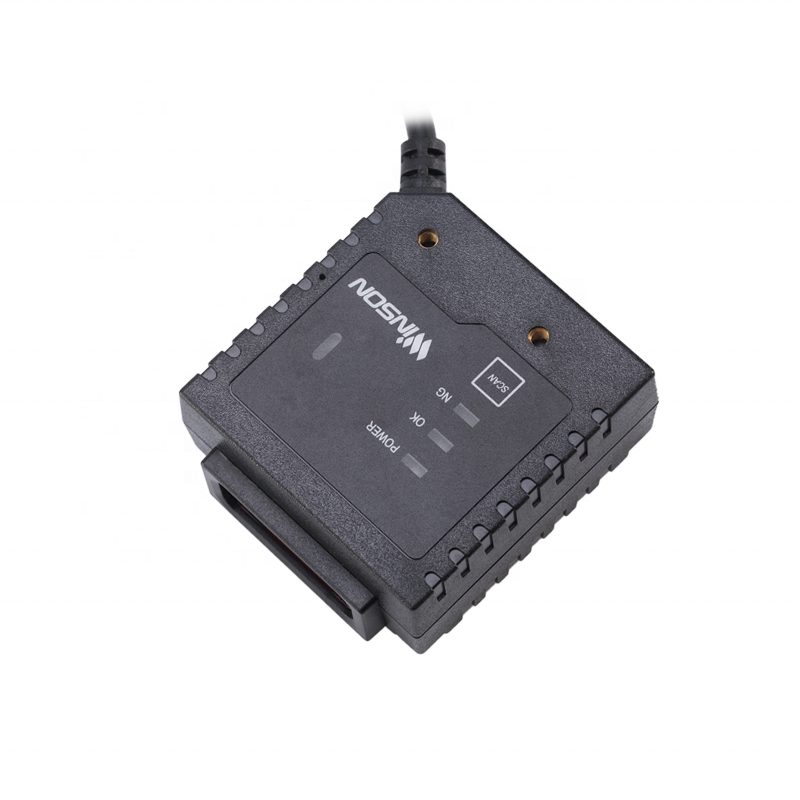

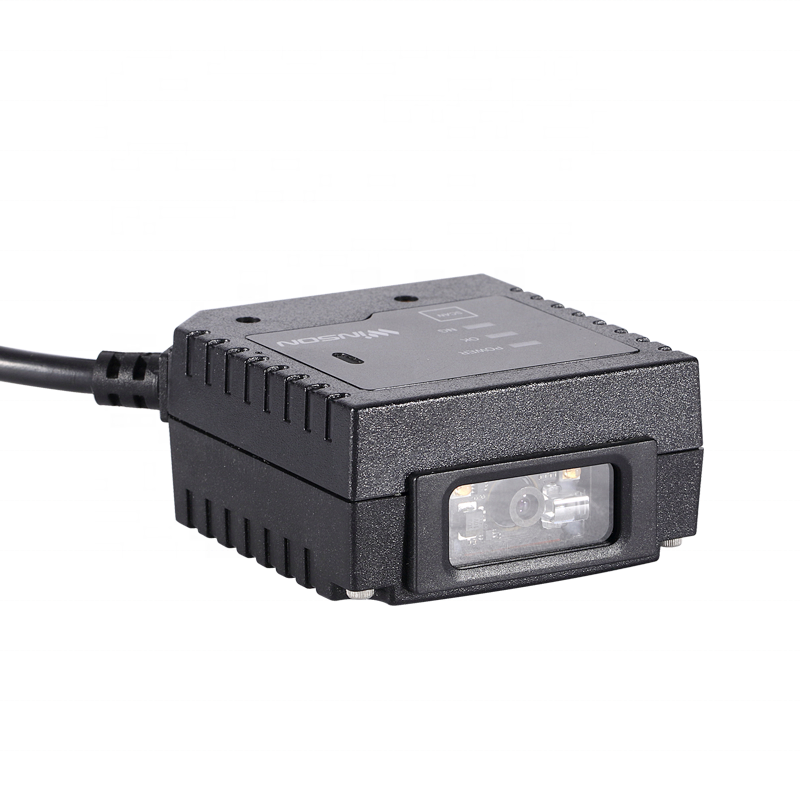

Portable Fixed Mount Engine QR Code Module

$242.00

≥1 Others
$212.00

≥50 Others
$170.00

≥200 Others

Options:

WGI-1000

Get Latest Price

You might also like

Fixed Barcode Scanner mini barcode Scanner

Communication barcode scanner module

Fixed Mounted Scanner 2d scanner

Auto Scanning 2D CMOS Engine Passport

Portable Fixed Mount Engine QR Code Module

Basic Info

Model No.	WGI-1000
Brand Name	winson
Certification	Ce
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Products Status	Stock
Type	QR Code Scanner Module
Scan Element Type	CMOS Scanner Module
Colour Depth	32 Bit
Interface Type	Usb
Max Paper Size	N/A
Optical Resolution	752X480 pixels
Scan Speed	Up to 60fps
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Product Name	Fixed Mount Engine
Product Type	QR Code Scanner Module
Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	DC 5V±10%
Current Consumption	Max:260mA
Photo sensor	COMS array sensor
Field of view	39°(H) x 25°(V)
Min.PCS value	>15%UPC/EAN 13(13mil)
Dimensions	57mm63mm32mm(LWH)
Weight	USB/USB VCP:125g
Certification	Ce, Rohs

Product description

Excellent quality cheap price CMOS Bar code Reader 2D Fix-Mounted Barcode Scanner

Rugged Barcode Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

Barcode Scanner Cable Powerful decoding capacity for most 1D and 2D codes,can read incomplete and fuzzy codes.

Barcode Scanner Usb Cable Plug and play, driver-free, convenient for usage.

barcode scanner

Superior reading performance 32-bit CPU,Winson barcode scanner is reading in high efficient, precise and sensitive. Accurate scanning The error rate is 1 / 5,000,000


Compatibility Compatible with the current system used by the general public, such as Windows,Android, Mac OS,IOS,Linux,and so on.	Mechanical Shock After 1.2m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

With the Winson WGI-1000, high-volume, hands-free scanning from retail POS and stations to self-service equipment to manufacturing lines can be achieved. With comprehensive data collection, your staff can scan almost any barcode - including one-dimensional and two-dimensional. It can also be used as a standalone fixed-mount scanner.

1.The superior performance
Industial design, the scanning speed is up to 2m/s, suiable for applications.
2.High detection accuracy
Using the new image decoding and intelligent lighting technology that can quikly scanning all kinds of 1D and 2D barcode.

Technical parameters
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP
Voltage requirement	DC 5V±10%
Current consumption	Max: 260mA
Optical Characteristics
Photo sensor	CMOS array sensor
SENSOR RESOLUTION	752X480 pixels
light source	Super-bright Red LED*2
Aim light source	Green Bar LED
Performance Characteristics
Decode angle	Pitch angle:±50° Skew angle:±50° Tilt angle:±180°
Min resolution	SR:5mil(0.127mm) HD:3mil(0.076mm)
Min.PCS value	>20%UPC/EAN 13(13mil)
Field of View	41o (H, pictured), 26o (V)
Language	multiple languages
Identification	1D codes: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey ? Postal codes: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code ? 2D codes: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF41, QR & Micro-QR Code, PDF417
Physical Characteristics
Dimensions	57 mm H x 63 mm W x 32 mm D
Weight	USB/USB VCP:125g RS-232:162g
Environmental Characteristics
Temp	-30 to 60 °C / -22 to 140 °F (operation) , -40 to 70 °C / -40 to 158 °F (storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Regulatory
Electrical Safety	IEC62471:2006 Exempt Group
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmental	RoHS
