Basic Info

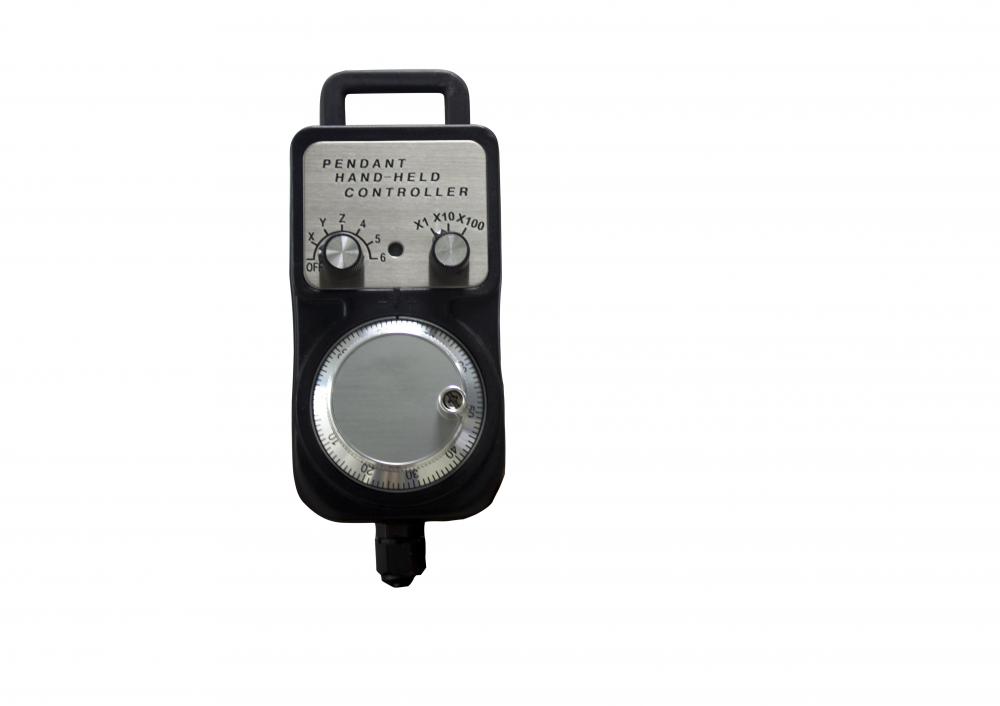

Model No.	HSC-3(2)
Brand Name

Product description

Rotary encoder refers to an encoder that converts mechanical displacement during rotation into electrical signals, and then processes the signals to detect position and speed. The switch that detects the linear mechanical displacement is called a linear encoder

Electrical parameters
Resolution	25/100P/R	25/100P/R	25/100P/R	25/100P/R
Circuit characteristics	Current type(C)	Voltage type(E)	Push-pull(F)	Differential(L)
Voltage	DC5V,DC8-24V	DC5V,DC8-24V	DC5V,DC8-24V	DC5V,DC8-24V
Current consumption	80mA Max.	100mA Max.	125mA Max.	80mA Max.
Signal high level	VH＞Vcc-0.7V	VH＞Vcc-0.7V	VH＞Vcc-0.7V	VH＞2.5V
Signal low	VL＜0.5V	VL＜0.5V	VL＜0.5V	VL＜0.5V
Output signal	A B	A B	A B	A A B B
Response frequency	20KHz Max.	20KHz Max.	20KHz Max.	20KHz Max.
Insulation resistance	50MΩ以上 (DC500V Megohmmeter)	50MΩ以上 (DC500V Megohmmeter	50MΩ以上 (DC500V Megohmmeter)	50MΩ以上 (DC500V Megohmmeter)

Mechanical parameters
Protection level	Ip54
Shaft speed	100rpm Max.
Shaft load	Radial: 10N Axial: 10N
Impact resistance	980m/s (3 times each in X, Y, and Z directions, each lasting 6ms)
Vibration resistance	50m/s (10～200Hz X Y Z each direction for 2 hours)
Starting torque	0.1N.m（25℃）
Moment of inertia	2×10^-5 kgm 2
Product weight	About 0.5Kg
Working humidity	35～85%RH (no condensation)
Operating temperature	-20～85℃
Storage temperature	-20～85℃
Angular acceleration	500rad/s 2
