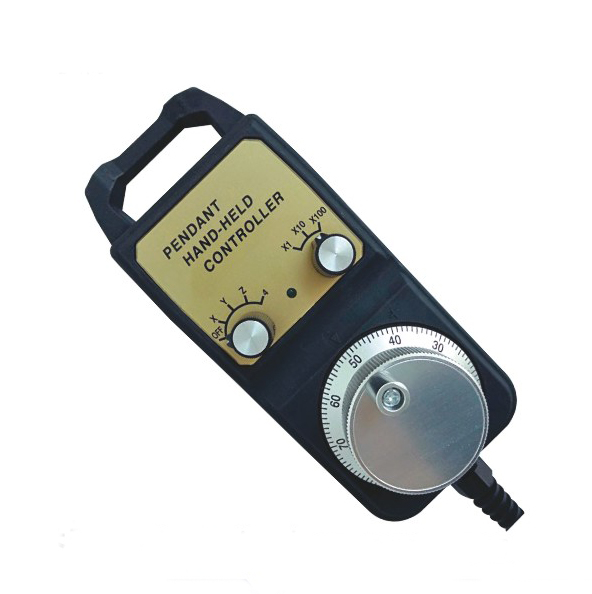

Pulse generator plc encoder
Basic Info
| Model No. | HSC-4(1) |
|---|
Product description
As a sensor for speed and displacement feedback, rotary encoders are mainly used in servo motors, asynchronous motors, stepping motors, elevator traction machines, elevator door machines and even mechanical shafts that require automatic control of motion speed and displacement information feedback. Ensure the high-precision and stable operation of machinery, thereby improving production efficiency and ensuring safe operation
| Electrical parameters | ||||
| Resolution | 25/100P/R | 25/100P/R | 25/100P/R | 25/100P/R |
| Circuit characteristics | Current type(C) | Voltage type(E) | Push-pull(F) | Differential(L) |
| Voltage | DC5V,DC8-24V | DC5V,DC8-24V | DC5V,DC8-24V | DC5V,DC8-24V |
| Current consumption | 80mA Max. | 100mA Max. | 125mA Max. | 80mA Max. |
| Signal high level | VH＞Vcc-0.7V | VH＞Vcc-0.7V | VH＞Vcc-0.7V | VH＞2.5V |
| Signal low | VL＜0.5V | VL＜0.5V | VL＜0.5V | VL＜0.5V |
| Output signal | A B | A B | A B | A A B B |
| Response frequency | 20KHz Max. | 20KHz Max. | 20KHz Max. | 20KHz Max. |
| Insulation resistance | 50MΩ以上 (DC500V Megohmmeter) | 50MΩ以上 (DC500V Megohmmeter | 50MΩ以上 (DC500V Megohmmeter) | 50MΩ以上 (DC500V Megohmmeter) |
| Mechanical parameters | |
| Protection level | Ip54 |
| Shaft speed | 100rpm Max. |
| Shaft load | Radial: 10N Axial: 10N |
| Impact resistance | 980m/s (3 times each in X, Y, and Z directions, each lasting 6ms) |
| Vibration resistance | 50m/s (10～200Hz X Y Z each direction for 2 hours) |
| Starting torque | 0.1N.m（25℃） |
| Moment of inertia | 2×10^-5 kgm 2 |
| Product weight | About 0.5Kg |
| Working humidity | 35～85%RH (no condensation) |
| Operating temperature | -20～85℃ |
| Storage temperature | -20～85℃ |
| Angular acceleration | 500rad/s 2 |
