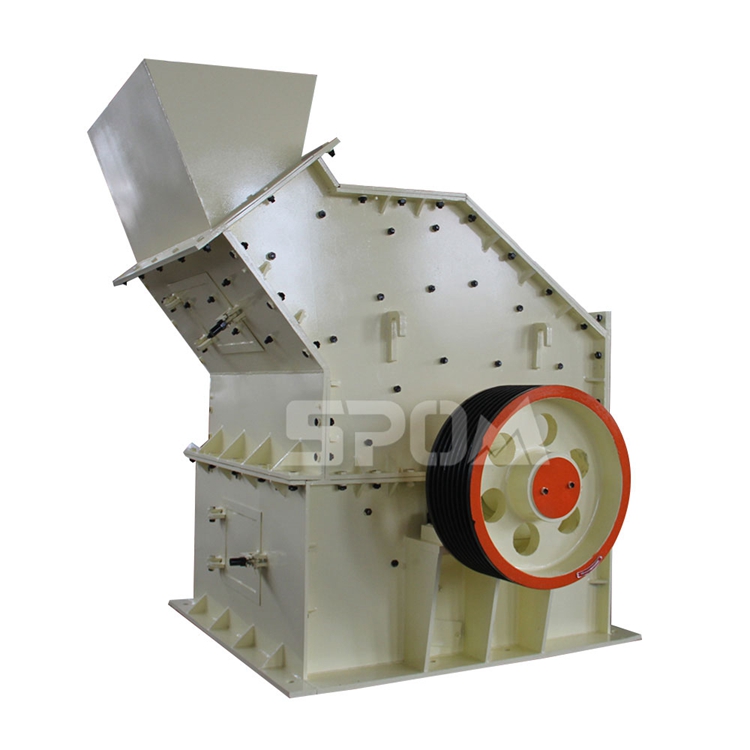

PXJ Series High Efficiency Fine Stone Crusher Sand Making Machine
$6550.00
≥1 set
$4200.00
≥3 set
Options:
- 45-110kw
- PXJ800*800
- PXJ1200*1200
- PXJ1010*1010
Get Latest Price
You might also like
Basic Info
| Type | Hammer Crusher |
|---|---|
| Application | Sand Making |
| Motor type | Ac Motor |
| Capacity(t/h) | 20-310 |
| Place of Origin | Henan, China |
Show More
Product description
This tertiary impact crusher is ideally suited to crush medium-hard, non-abrasive materials down to a cubical, well graded product size of 0-5 mm (60% passing) in a single pass. Due to its added control over the upper product sizes and high reduction ratios, it can efficiently operate in closed circuit on smaller product fractions.
Parameter
Model | Feeder Size(mm) | Feeder Opening Size(mm) | Discharging Size(mm) | Adjustable Size of Discharge Opening(mm) | Capacity(t/h) | Power(kw) |
PXJ800×400 | ≤120 | 400×185 | ≤5 | 5-20 | 20-45 | 37-45 |
PXJ800×600 | ≤180 | 500×250 | ≤5 | 5-20 | 35-55 | 45-55 |
PXJ800×800 | ≤180 | 550×330 | ≤5 | 5-20 | 35-65 | 45-55 |
PXJ1010×1010 | ≤180 | 1000×350 | ≤5 | 5-20 | 45-75 | 55-75 |
PXJ1200×1000 | ≤180 | 1200×400 | ≤5 | 5-20 | 70-110 | 90-110 |
PXJ1200×1200 | ≤180 | 1200×450 | ≤5 | 5-20 | 90-120 | 110-132 |
PXJ1400×1400 | ≤190 | 1500×500 | ≤5 | 5-20 | 100-150 | 160 |
PXJ1600×1600 | ≤190 | 1600×550 | ≤5 | 5-20 | 170-250 | 250 |
PXJ1800×1800 | ≤190 | 1800×800 | ≤5 | 5-20 | 250-310 | 315 |
Details Images
Fine crusher combines the advantages of hammer crusher and impact crusher
PXJ High-Efficiency Fine Impact Crusher at run time, the material into the cavity, in the hammer and counterattack plate between the role of the initial break. After the initial broken material falls below the rejection of the material plate, was high-speed counterattack counter to counter, broken, grinding. In the material after a number of composite crushing, erosion and grinding to achieve ultra-fine effect.
Working site
Fixed sand making plant
Material : Limestone
Material : construction waste
Max feeding size : 340mm
Final product size : 0-25mm
Capacity : 30-40t/h
Final product size : 0-25mm
Capacity : 30-40t/h

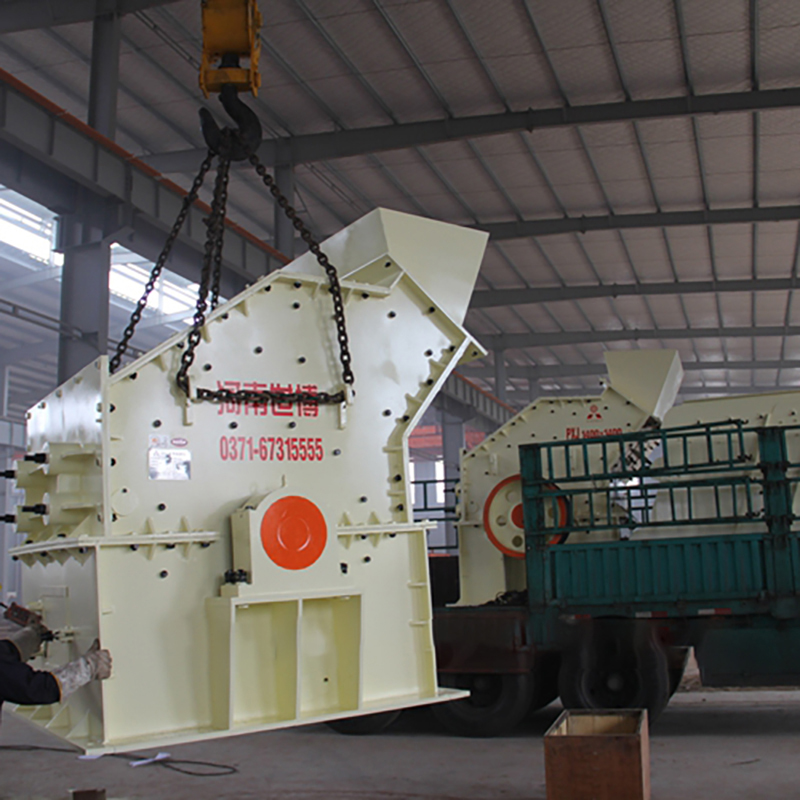

Packing and delivery
The main machine is nude packing , motor , V-belt ,??Anchor bolt are packing in wooden box ,we will test the machine three times to make sure it is 100% qualified before the machine leave factory .
Our company is located in Wulong Industrial Park, Zhengzhou, China, It has a total area of approximately 350,000 square meters with professional cutting and welding workshop,a large spraying workshop, a high-standard assembly workshop, a variety of large and medium-sized metal processing, riveting,welding, assembly equipment, etc.
Customer Photos
After more than 30 years development , now we have more than 100 world markets and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.
Q: what is the payment terms ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the fine crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to crush ? such as granite ? limestone ?
2. what's the size of your stone before crush ? how many inch or mm ?
3. what's your requirements of final product size ? how many inch or mm ?
4. what's your requirements of production capacity ? how many ton per hour ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .
Q: How long do you need to produce the fine crusher?
A: Most model are in stock, can delivery within 10 days.
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to crush ? such as granite ? limestone ?
2. what's the size of your stone before crush ? how many inch or mm ?
3. what's your requirements of final product size ? how many inch or mm ?
4. what's your requirements of production capacity ? how many ton per hour ?
