Rolling Pipe Bending Machine

$3000.00 ~ $10000.00 / Set/Sets

Get Latest Price

You might also like

pipe rolling machine 3 rollers

1 (MOQ)

Hydraulic Three Roller Conical Plate Rolling Machine

1 (MOQ)

3 Roller Profile Bending Machine hydraulic

$2000.00

1 Set/Sets (MOQ)

3 roller 360 degree pipe profile bending machine

$3000.00

1 Set/Sets (MOQ)

Semi automatic Pipe Roller Machine for Sale

$3000.00

1 Set/Sets (MOQ)

Rolling Pipe Bender Machine

$3000.00

1 Set/Sets (MOQ)

Rolling Pipe Bending Machine

$3000.00

1 Set/Sets (MOQ)

Basic Info

Model No.	GY50
Brand Name	heshun
Machinable material	Alloy, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
Old and new	New
place of origin	China
degree of automation	Semi-Automatic
Additional features	End Forming
Certification	Ce
warranty period	1 Year
Out-of-warranty service	Video Technical Support, Online Support
Core selling point	Easy To Operate
Applicable industry	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works, Energy &Amp; Mining, Other
Where to provide local services (in which countries are there overseas service outlets)	None
Showroom location (in which countries are there sample rooms overseas)	None
Marketing type	Ordinary Product
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1 Year
Core components	Bearing, Motor, Pump, Gear, Plc, Pressure Vessel, Engine, Other, Gearbox

Product description

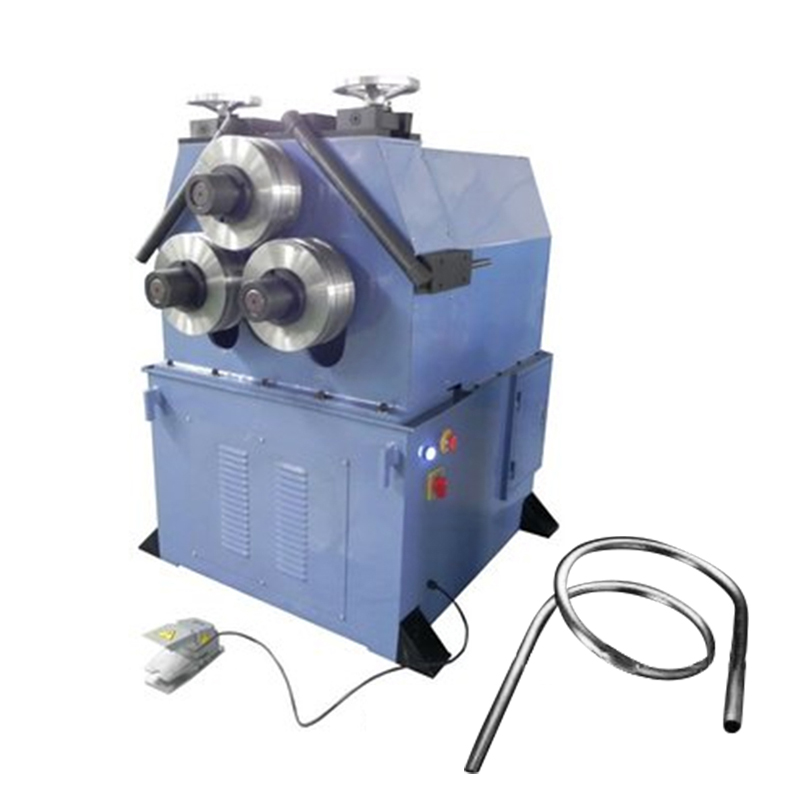

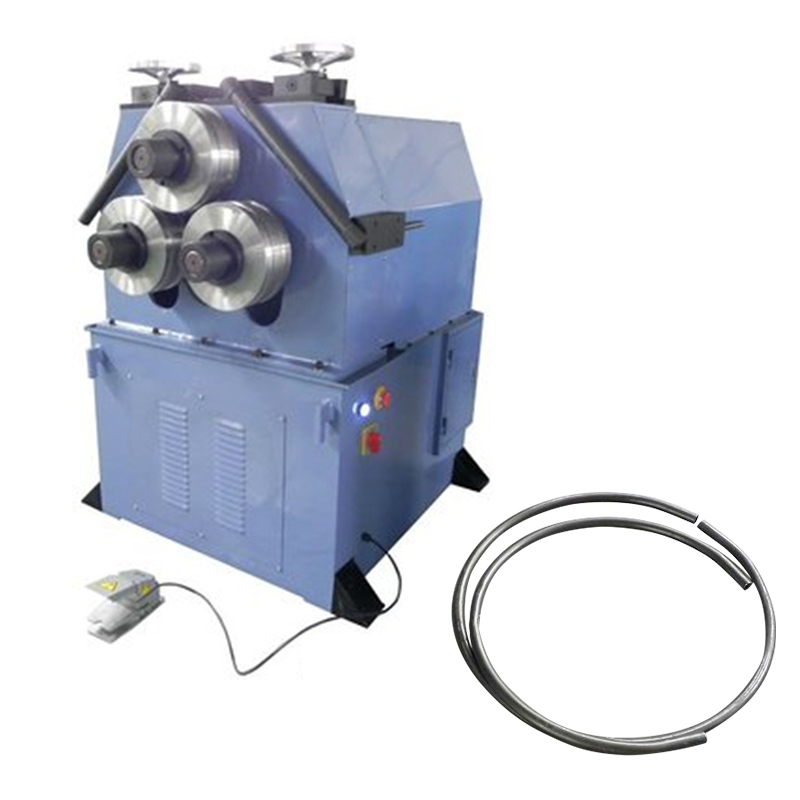

3 Roll Pipe Bending Machine

1.Product Introduction:

We are a manufacturer of pipe processing machines. Including pipe bending machine, pipe cutting machine,pipe chamfering machine and pipe end forming machines.

This machine is 3 roll pipe bending machine which is also called pipe rolling machine.It is a mechanical equipment used for rounding metal materials. It consists of three rollers, with one roller located above and two rollers located below. The upper roller can apply pressure through hydraulic or mechanical force to compress the metal material between the two rollers below.

This 3 roll pipe bending machine is mainly used for rounding metal plates, pipes, shafts, etc., to form circular or elliptical sections. It can achieve processing of metal materials such as bending, flattening, and elongation, thereby changing the shape and size of the material.

2.Main Characteristics:

1.Full mechanical drive,compact construction, high reliability.
2.Three wheels drive, anti-skid, thin walled material can be bended.
3.Two wheels are asymmetric distribution which reduce the straight line section.
4.The side of two wheels both side can feed pipe.
5.Plus foot switch and emergency stop which easy to operate.
6.The machine transmit steadily. it only needs to adjust the distance of between up wheel and down wheel. different curvature can be obtained circular arc or spiral.
7.Change the geometry of mould, operator can process various metal profiles, sucha as angle steel, flat steel, round steel and other special shaped cross section profiles.
8.Bending large diameter profiles, to avoid the drawbacks of making large bending pipe mould, is a necessary complement series for single, double bending machine can not reach.

9.The machine is in suit to produce in enormous quantities, with high speed and efficiency.

3.Technological parameters:

Item	GY50	GY100
Max. pipe diameter	Φ50*3.0	Φ100*4.0
Min. bending radius	R250	R500
Bending speed	3m/min	2m/min
Mould diameter	Φ250	Φ300
Motor Power	4KW	7.5KW
Weight	1200kg	2000kg
