Rubber Extrusion and Calendering Line for Sheets and Conveyor Belts

$200000.00

≥1 set
$199500.00

≥10 set

Options:

xjdy-200

Get Latest Price

You might also like

Wide Width Rubber Sheet Extrusion and Calendering Line

1 set (MOQ)

Rubber Extrusion and Calendering Line for Sheets and Conveyor Belts

1 set (MOQ)

Basic Info

Model No.
Brand Name
Place of Origin	Shandong, China
Brand Name	everfine rubber machine
Type	Rubber Extruder
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Gearbox, motor
Voltage	220V~660V
Dimension(LWH)	50000x5000x3000MM
Warranty	1 Year
Key Selling Points	good quality and price
Power (kW)	30 kW
Weight (KG)	60000 KG
Screw diameter	200mm
Roller diameter	450mm
Roller working length	1200mm
Condition	New
Warranty of core components	1 Year
Applicable Industries	Manufacturing Plant
Showroom Location	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria
Year	2023

Product description

Roller die process/rubber extrusion and calendering line for producing rubber sheet or covering conveyor belt

rubber extrusion and calendering line for rubber sheet or conveyor belt/roller die process

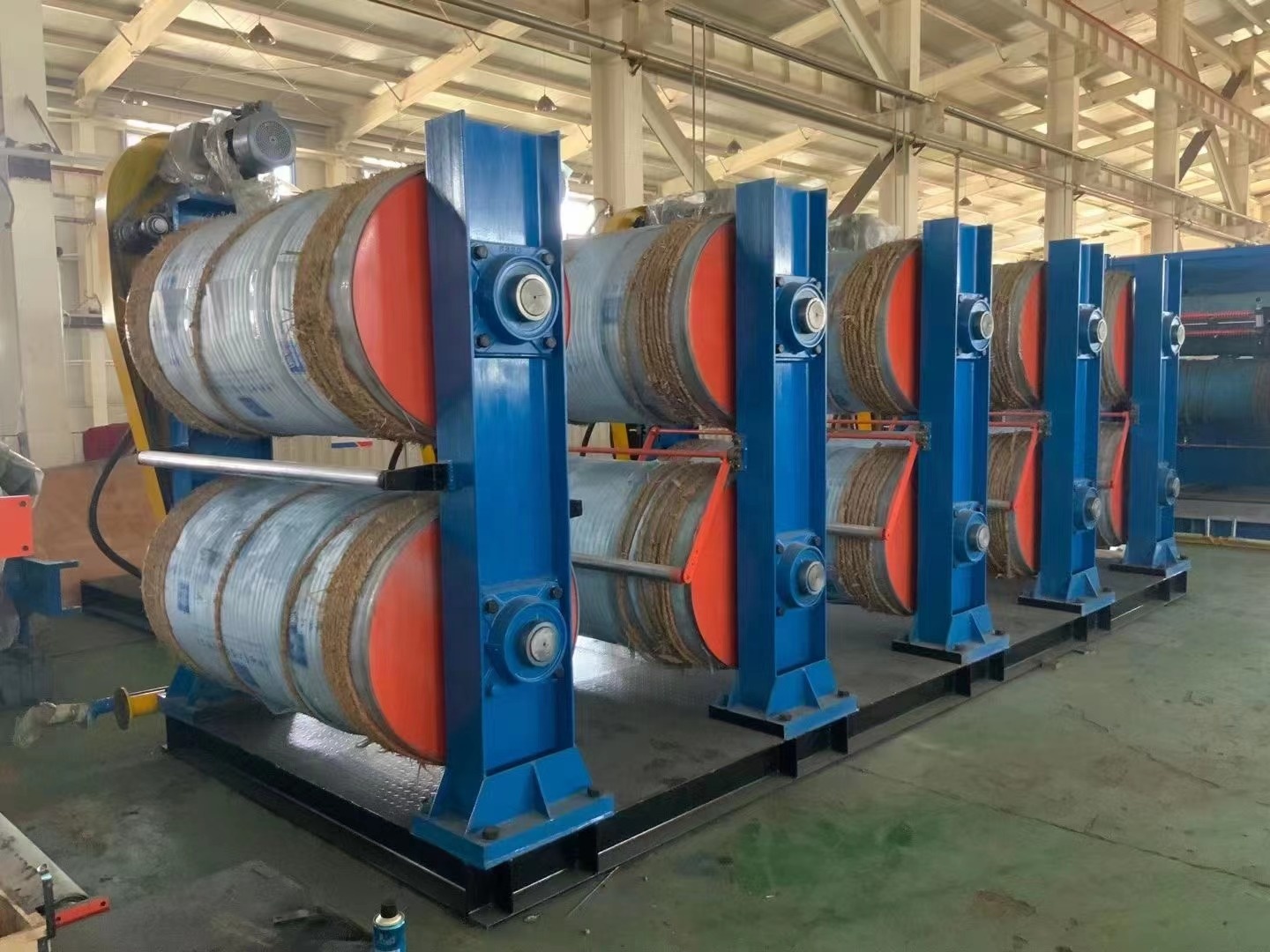

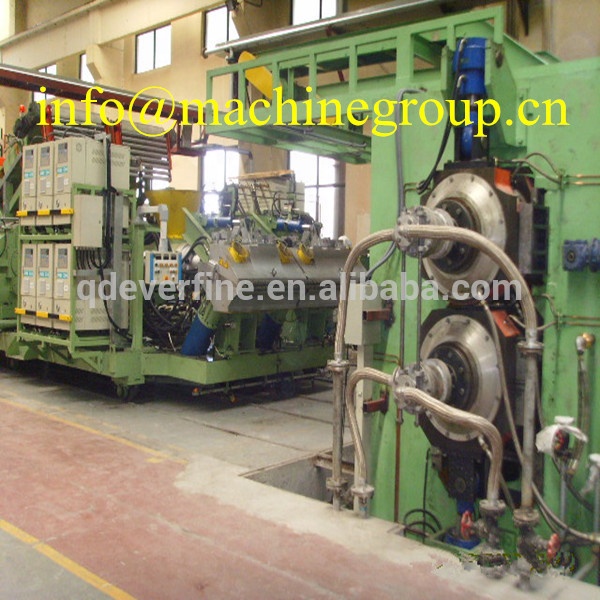

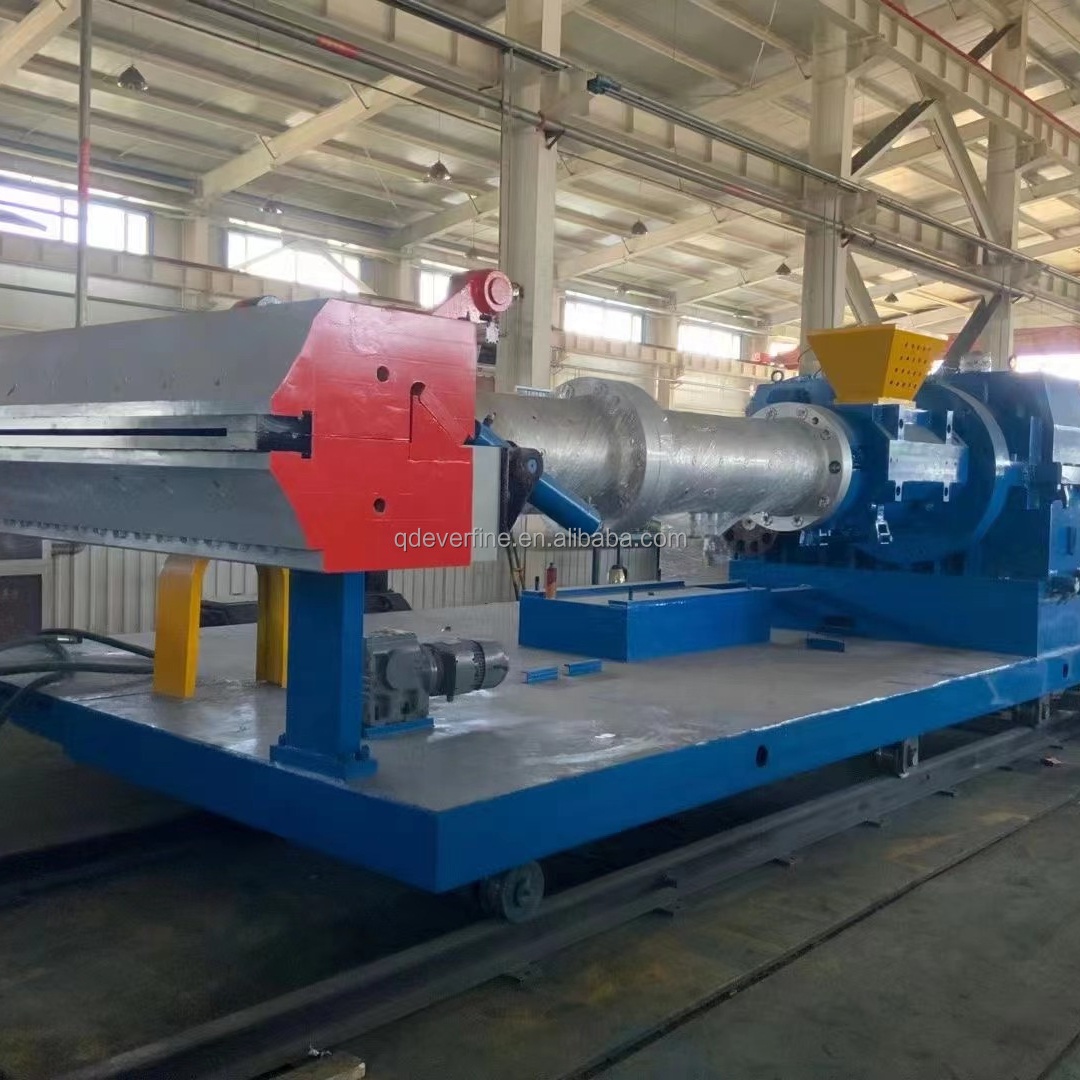

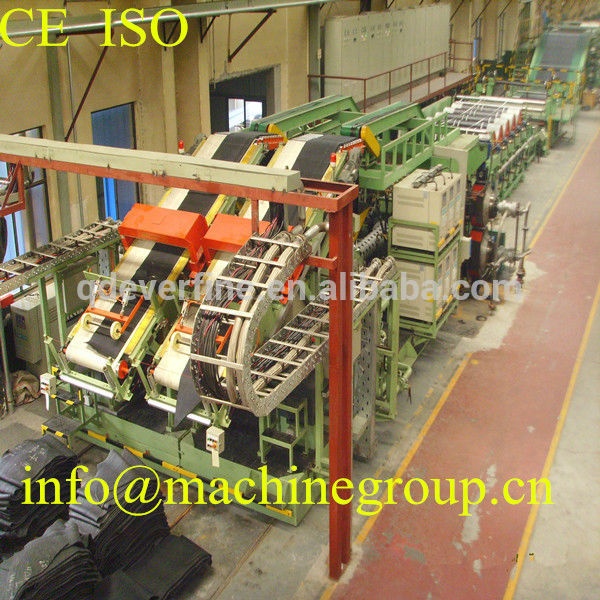

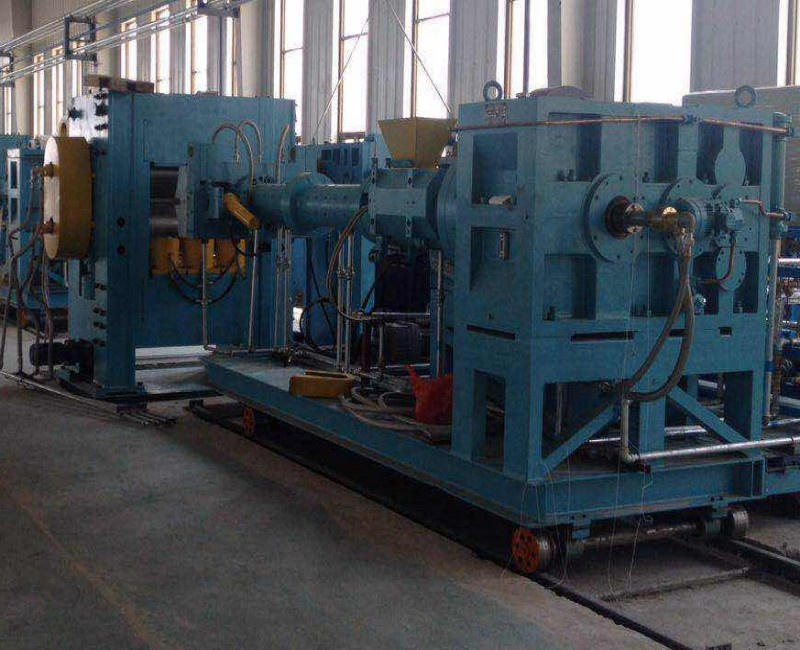

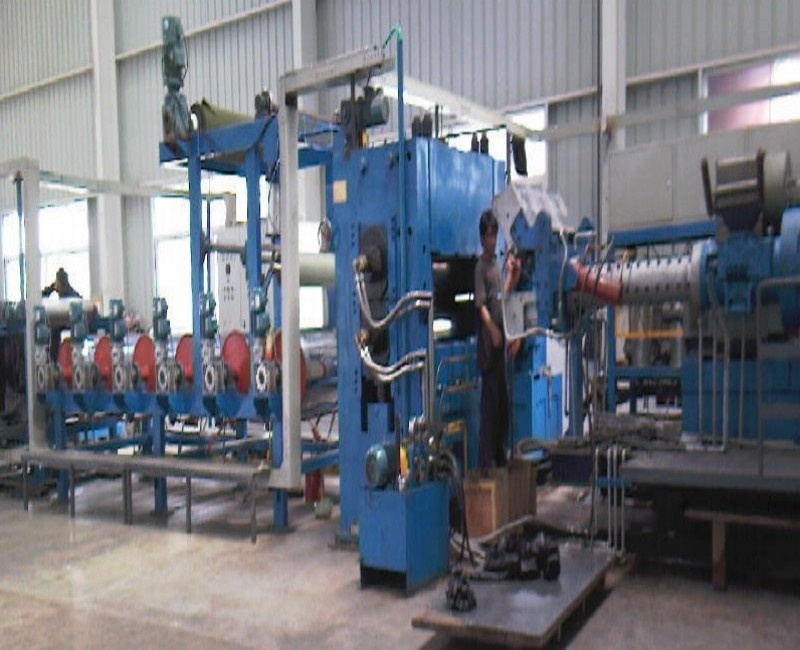

The extrusion calendering?line for rubber sheet with wide width, is mainly composed of cold-feeding pin barrel?extruder, rubber sheet extruding head, two roller calender system, the six-roller cooling system, the rubber sheet combining system, double-station packing system, etc. The rubber cover of conveyor belt is produced in the following procession, the fully plasticating in the pin-extruder, and then the passing from the extruding die with the help of the double-roll calendering system. The cover wide width of less than 2600mm and thickness of 1.5~1.8mm, is produced without the problem of bubble and fish scale in this procession. And also the additional function, such as rubber covering on the flame retardant belt, can be realized if the production line is equipped with other necessary device.

?Model?		XJD-45	XJD-60	XJD-75	XJD-90	XJD-120	XJD-150	XJD-200	XJD-250
Screw?diameter???(mm)		45	60	75	90	120	150	200	250
L/D?ratio		8-12	8-12	8-14	12-16	12-16	12-18	12-18	12-18
Screw?RPM (r/min)		~70	~80	60	~60?(55)	~50	~45	~33	~26
Production?capacity(kg/h)		15-25	80~150	100-180	250~350	600~800	1000-1500	1600-2500	2800-3500
Main?motor?power(KW)		12~22	18.5~22	37-45	45~75	75~110	160~250	220~355	355~450
overall dimension	L	2165	2200	2300	3360	3750	5200	7150	~8,500
	W	1100	1310	1150	1150	1600	1650	1950	~2,450
	H	1600	1400	1600	1450	1550	1600	2300	~2,600
Total?weight?(kg)		1200	1800	2100	3000	4200	5350	9800	~15,000
