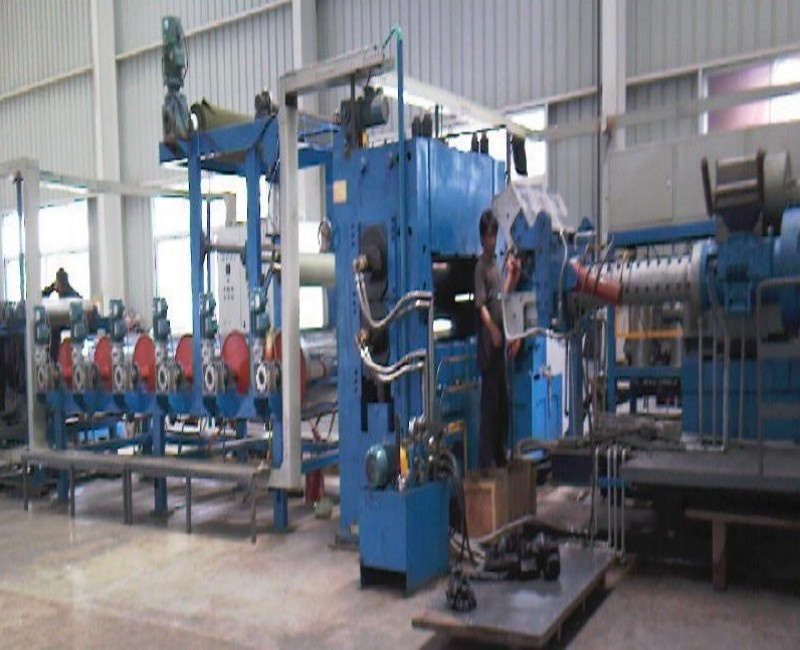

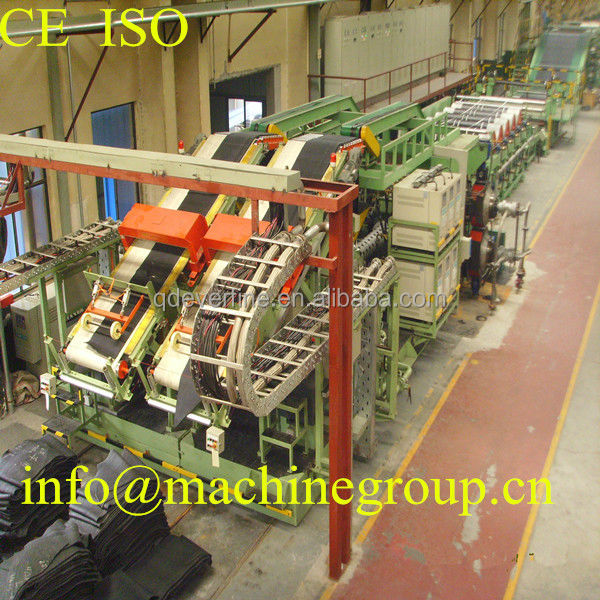

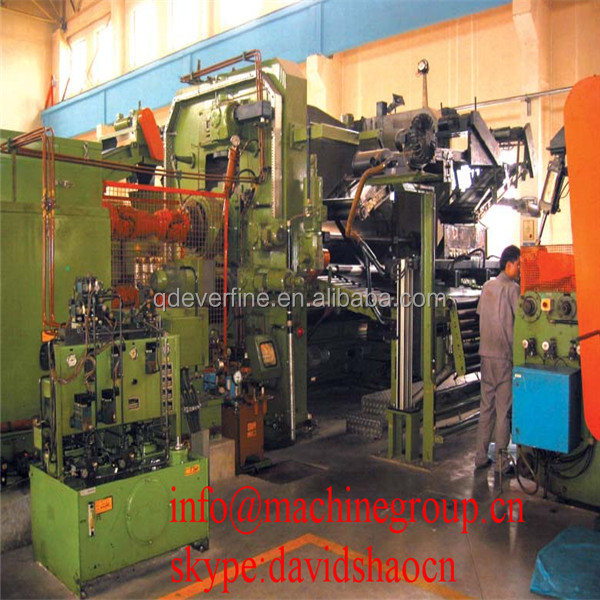

Wide Width Rubber Sheet Extrusion and Calendering Line
$200000.00
≥1 set
$190000.00
≥10 set
Options:
- xjdy-2500
Basic Info
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | Everfine |
| Type | Rubber Extruder |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
Product description
The extrusion calendering?line for rubber sheet with wide width, is mainly composed of cold-feeding pin barrel?extruder, rubber sheet extruding head, two roller calender system, the six-roller cooling system, the rubber sheet combining system, double-station packing system, etc. The rubber cover of conveyor belt is produced in the following procession, the fully plasticating in the pin-extruder, and then the passing from the extruding die with the help of the double-roll calendering system. The cover wide width of less than 2600mm and thickness of 1.5~1.8mm, is produced without the problem of bubble and fish scale in this procession. And also the additional function, such as rubber covering on the flame retardant belt, can be realized if the production line is equipped with other necessary device.
|
?Model? |
XJD-45 |
XJD-60 |
XJD-75 |
XJD-90 |
XJD-120 |
XJD-150 |
XJD-200 |
XJD-250 |
|
|
Screw?diameter???(mm) |
45 |
60 |
75 |
90 |
120 |
150 |
200 |
250 |
|
|
L/D?ratio |
8-12 |
8-12 |
8-14 |
12-16 |
12-16 |
12-18 |
12-18 |
12-18 |
|
|
Screw?RPM (r/min) |
~70 |
~80 |
60 |
~60?(55) |
~50 |
~45 |
~33 |
~26 |
|
|
Production?capacity(kg/h) |
15-25 |
80~150 |
100-180 |
250~350 |
600~800 |
1000-1500 |
1600-2500 |
2800-3500 |
|
|
Main?motor?power(KW) |
12~22 |
18.5~22 |
37-45 |
45~75 |
75~110 |
160~250 |
220~355 |
355~450 |
|
|
overall dimension |
L |
2165 |
2200 |
2300 |
3360 |
3750 |
5200 |
7150 |
~8,500 |
|
W |
1100 |
1310 |
1150 |
1150 |
1600 |
1650 |
1950 |
~2,450 |
|
|
H |
1600 |
1400 |
1600 |
1450 |
1550 |
1600 |
2300 |
~2,600 |
|
|
Total?weight?(kg) |
1200 |
1800 |
2100 |
3000 |
4200 |
5350 |
9800 |
~15,000 |
|

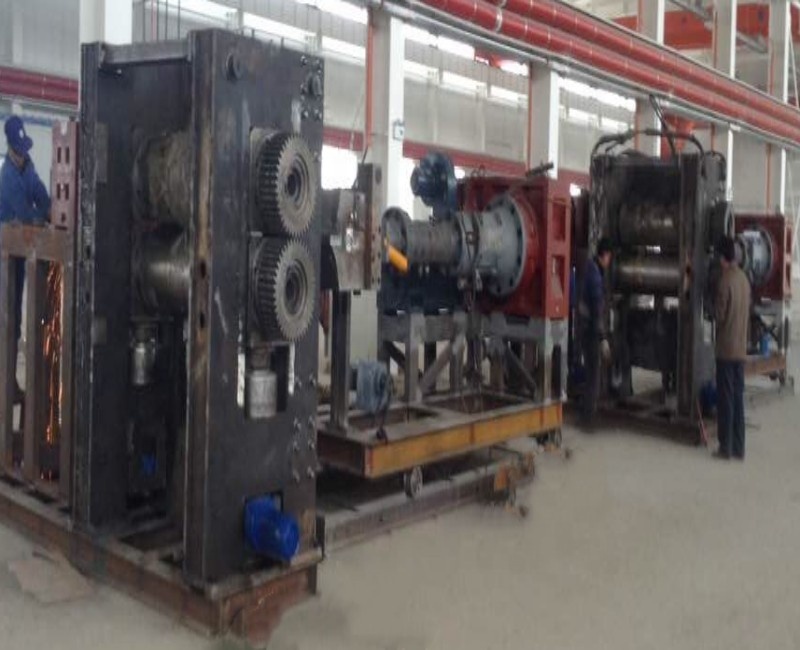

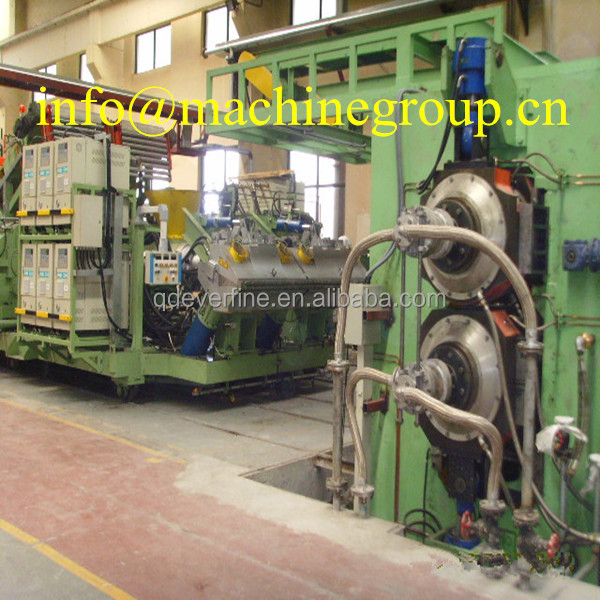

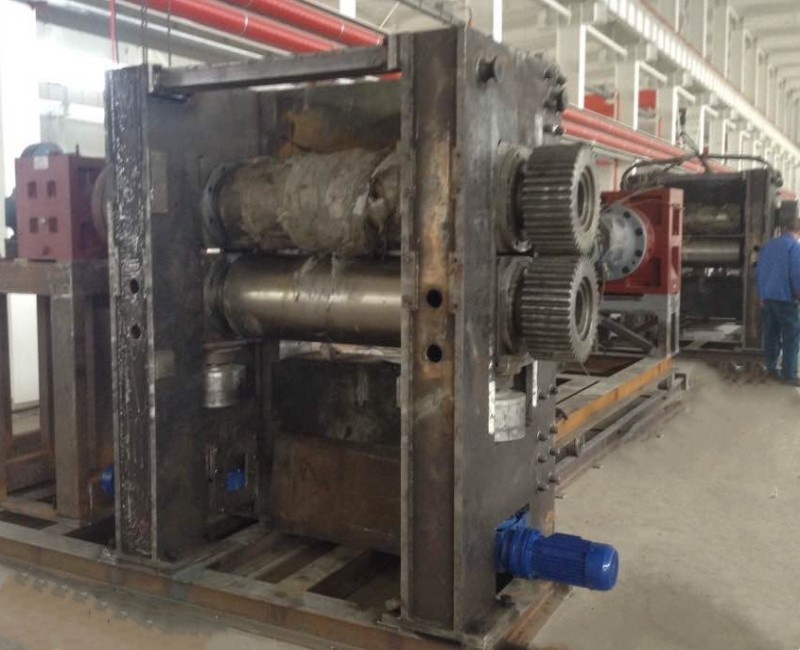

Rubber sheet Extruder head to calender

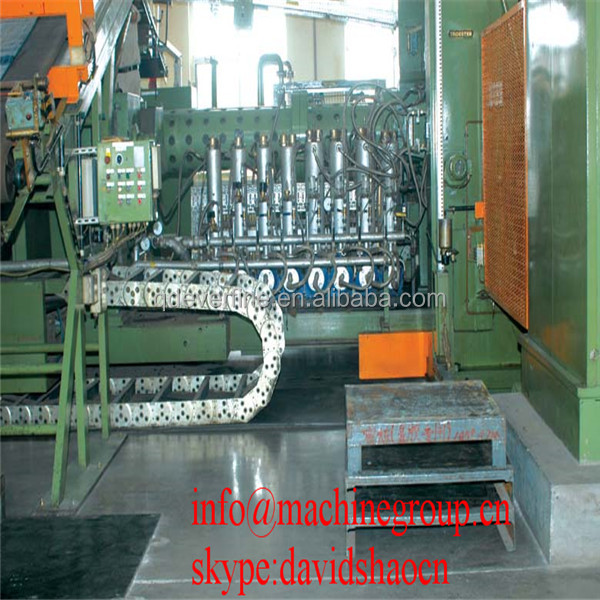

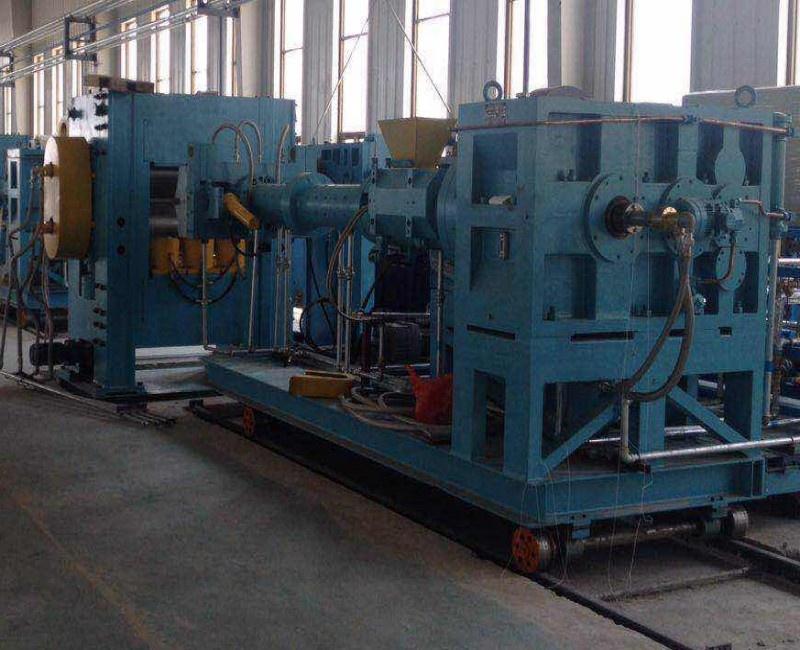

Pin-barrel cold feeding rubber extruder

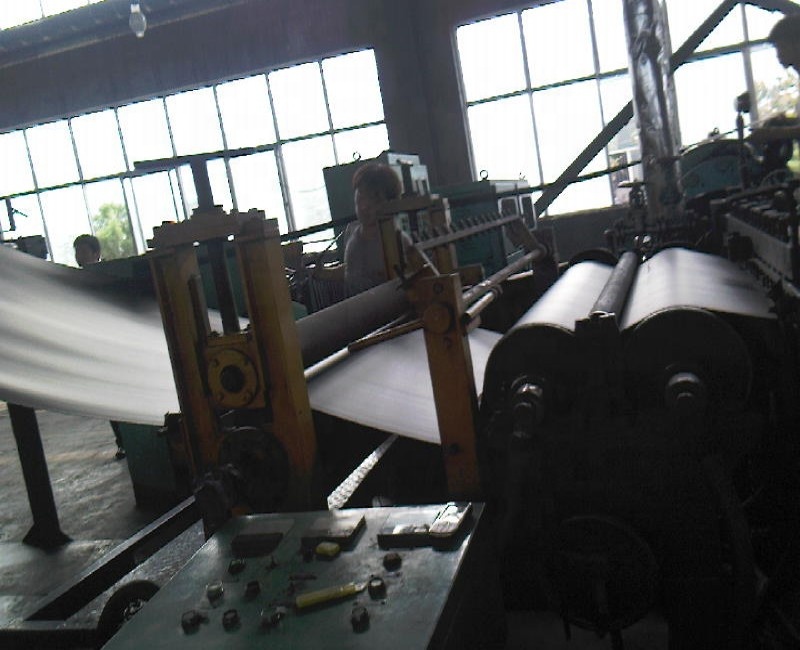

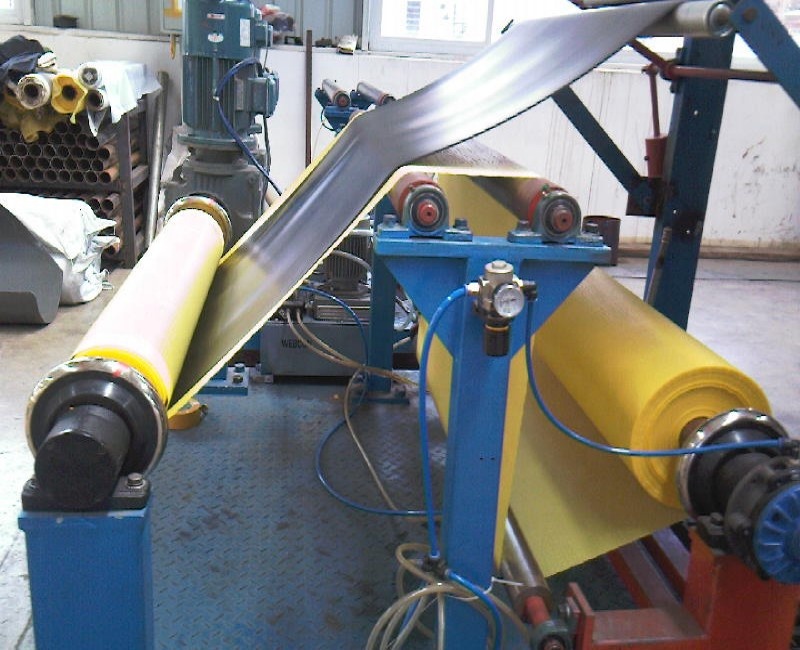

The extruding rubber sheet
We may design and produce this line according to customer's specific requirements.? Please feel free to contact us.
