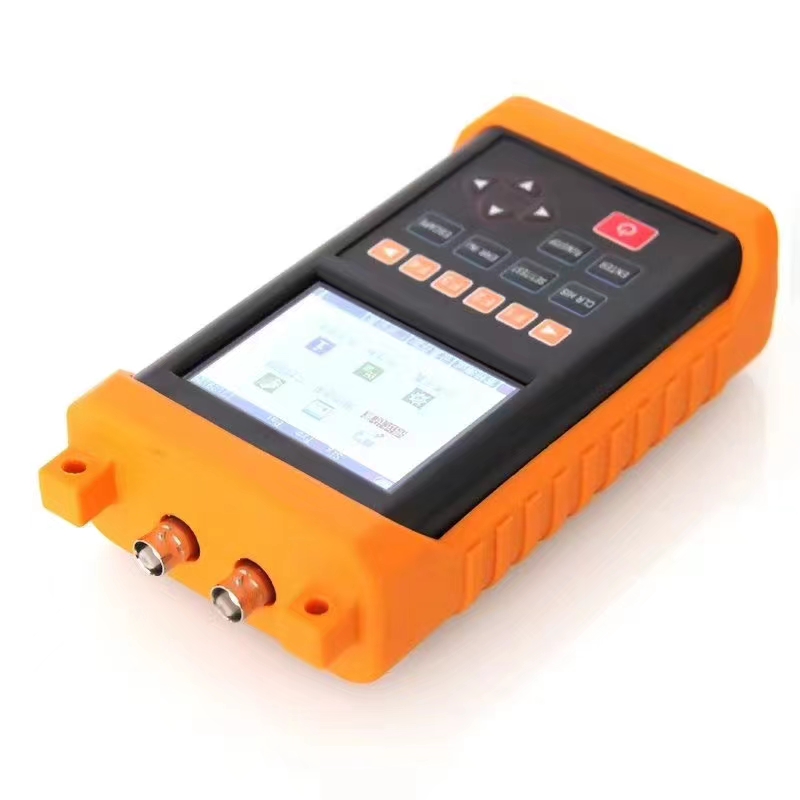

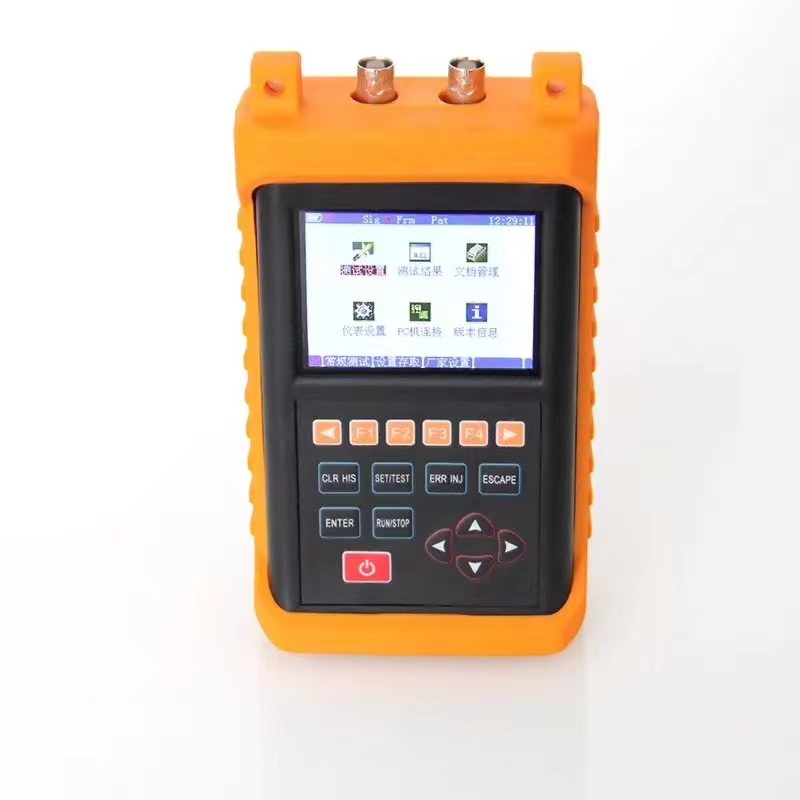

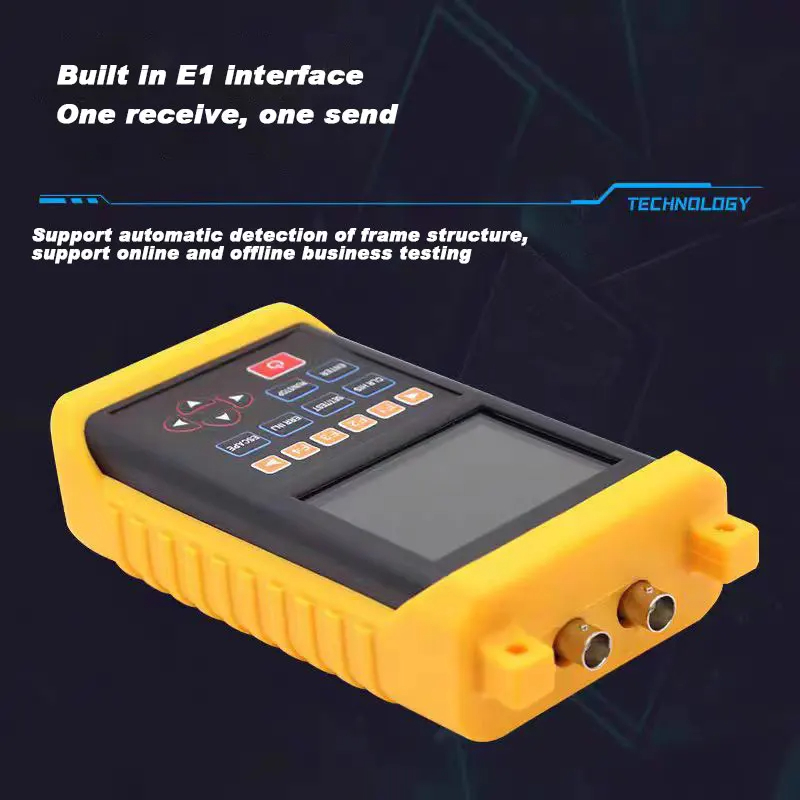

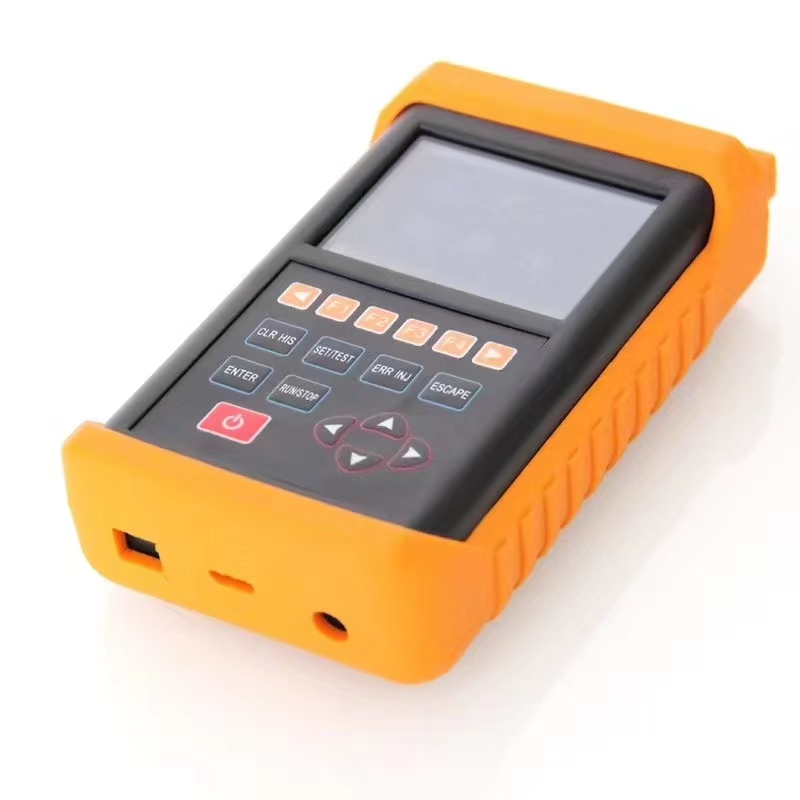

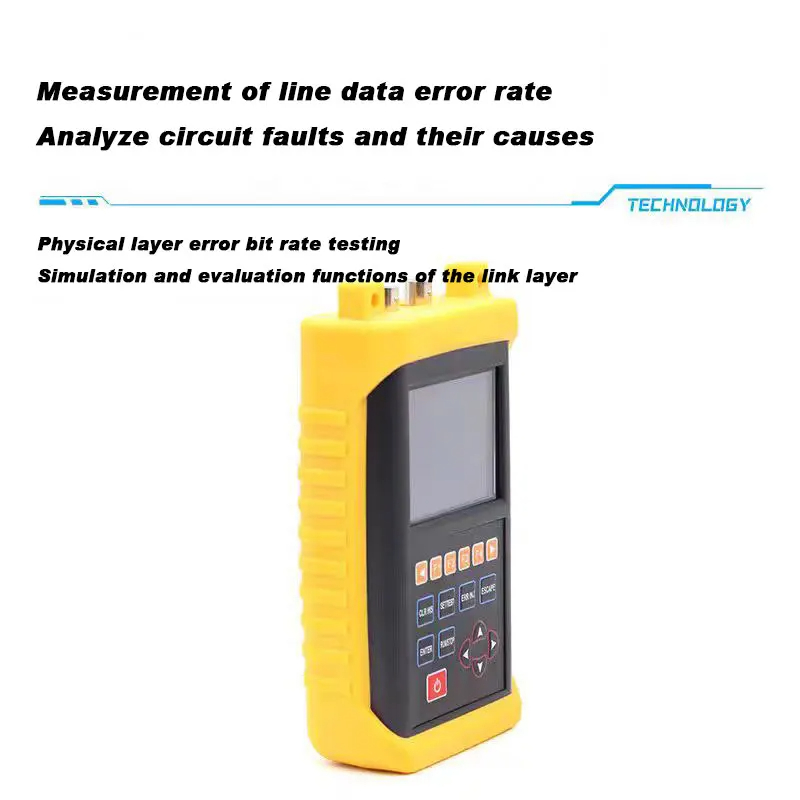

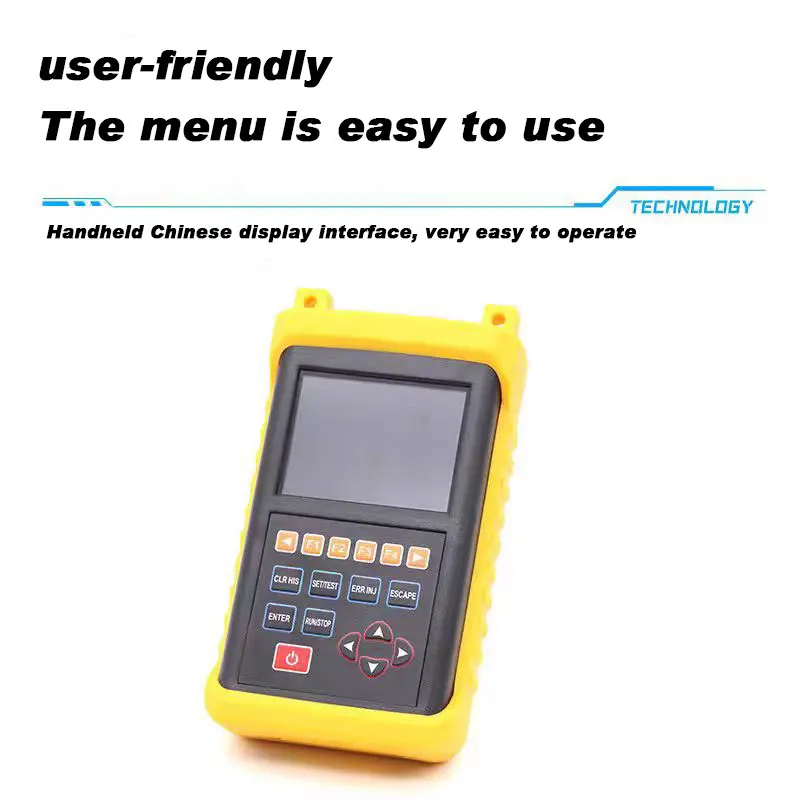

2Mbit/s Tester?is a multi-functional and full- featured digital transmission system test device, designed for the installation test, engineering check and acceptance, daily maintenance of digital networks, mainly performing channel test, alarm analysis, fault finding and signaling analysis.

?

1.?Features

Handheld design and easy-to-use; High resolution backlight color TFT LCD screen

Save/Recall of 7 user-defined setups and 7 sets of results

Run and stop testing can be controlled automatically by timer

Histograms analysis of alarm and error events

?

2. Functions

2M measurement

75w and 120w line interfaces

HDB3 and AMI line codes

Out-of-service 2Mb/s, N×64kb/s BER testing

In-service framed and unframed double-channel testing

“PCM simulator” mode testing

Frame data control and monitoring

Timeslot activity monitoring, FAS, N-FAS, TS16MFO analysis

Built-in 64kb/s tone channel listen capability

CAS and CCS signaling generation and monitoring

Extensive error and alarm generation

Level measurement

Frequency and offset measurement

Clock slip measurement

Up to ±999ppm transmit clock deviation

Clock source: Internal, Interface or External 2M clock/signal

3.?Accessories List
