RY1200 2M Data Transmission Error Code Tester

$600.00

≥1 piece
$550.00

≥10 piece
$500.00

≥20 piece
$450.00

≥50 piece

Options:

RY1200

Get Latest Price

You might also like

RY1100 2M Data Transmission Error Code Tester

1 piece (MOQ)

RY1200 2M Data Transmission Error Code Tester

1 piece (MOQ)

Basic Info

Model No.
Brand Name
Model Number	RY1200
Type	Testers &Tools
Place of Origin	Jiangsu, China
Brand Name	FFS
Use	Ftth
Warranty Time	1 Year
Network	Wireless Lan, bluetooth, Wired LAN, ONVIF
Internal Clock	2048kb/s ±10ppm
Frequency Deviation	±999ppm
Line Code	HDB3, AMI
Receive Sensitivity	≤-27dbm
Pulse Mask Measurement	Comply with G.703
Frequency Measurement	Accuracy: ±1Hz
Performance Analysis	ITU-T G.821, G.826 and M.2100
Display	320x240 pixel backlit monochromatic LCD
Storage Temperature	-20℃~+70℃
Serial Port	RS-232C

Product description

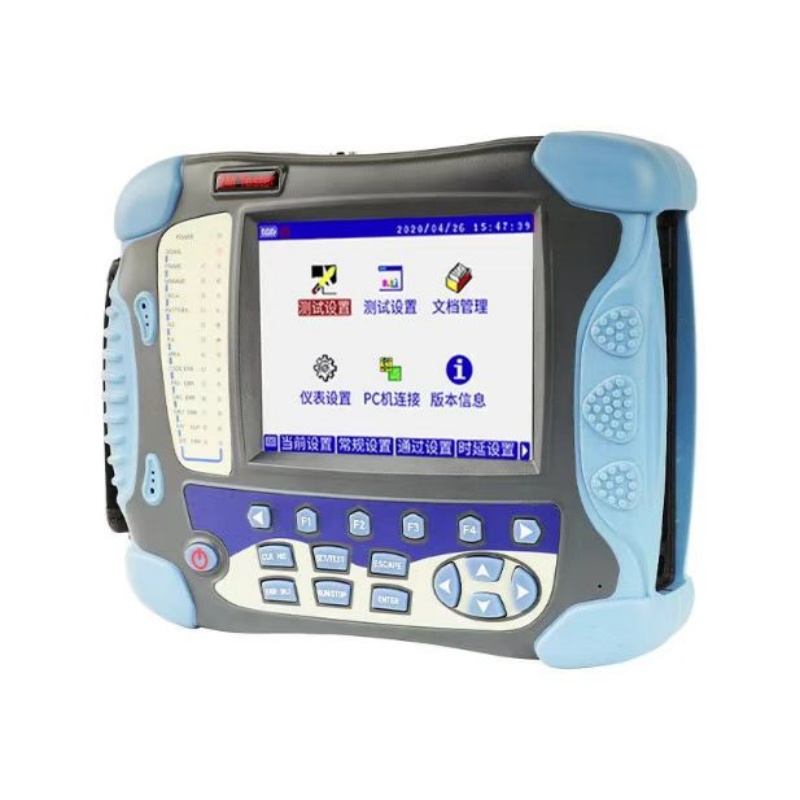

RY1200?2M Transmission Analyzer is a multi-functional and full-featured digital transmission system test device, designed for the installation test, engineering check and acceptance, daily maintenance of digital networks, mainly performing channel test, alarm analysis, fault finding and signaling analysis. In addition, this instrument further provides various protocol converters with one-way and bi-directional bit error test function. These capabilities make it ideal for field use.
Basic Functions
2M testing
HDB3 and AMI line codes
Out-of-service 2Mb/s, N×64kb/s BER testing
“PCM simulator” mode testing
Frame data control and monitoring
Timelot activity monitoring, FAS, N-FAS, TS16MFO analysis
Built-in 64kb/s tone channel listen capability
CAS and CCS signaling generation and monitoring
Round trip delay measurement
APS delay measurement
Extensive error and alarm generation
VF tone generation and measurement
Pulse mask measurement
Jitter measurements to ITU-T standard O.172
Frequency and offset measurement
Clock slip measurement
Up to ±999ppm transmit clock deviation
Clock source: Internal, Interface or External 2M clock/signal
Real-time transmit circuit open/short indication
Datacom testing
Datacom (V.24, V.35, V.36, X.21, RS-449, RS-485, EIA-530 and EIA-530A) interfaces BER Testing
ASYNC BER testing with baud rate 300b/s~38.4Kb/s
SYNC BER testing with data rate 300b/s~8Mb/s
DTE or DCE emulation
SYNC clock source and sense selection
Frequency measurement
Handshaking signals control and monitoring
G.703 CO testing
G.703 CO 64kb/s BER testing
Octet timing control and monitoring
Frequency and offset measurement
Clock source: Internal, Interface selectable
Protocol converter testing
2M-Datacom SYNC 64k or N×64kb/s BER testing
2M-G.703 CO SYNC 64kb/s BER testing
Frequency and offset measurement
Handshaking signals monitoring
2M frame data and alarm monitoring
Other functions
Real-time clock
Test pattern: PRBS, Fixed Code and 16-BIT User Word
Error injection: Single and Fixed Rate
Manual and auto-timer measurement
ITU-T G.821, G.826, and M.2100 performance analysis
Features

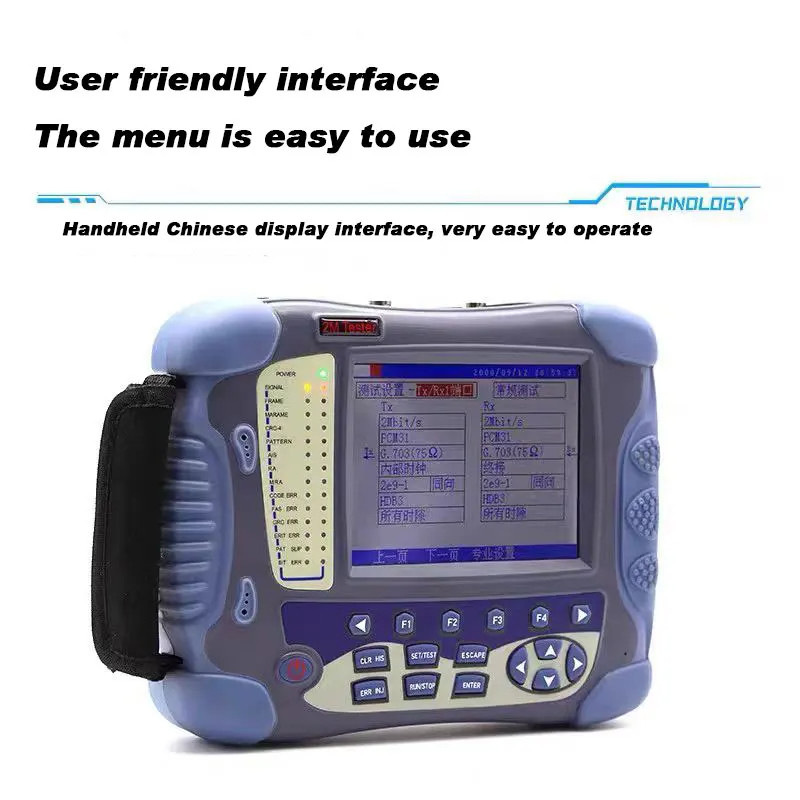

Handheld design and easy-to-use

Full-featured measurements to 2M, Datacom.

High resolution backlight large LCD screen, with adjustable contrast.

Smart navigation mode and multi-language displays

Extensive error and alarm generation, detection and indication.

Histograms analysis of alarm and error events

Up to 99 days continuance test performance

Save/Recall of up to 7 user-defined setups and 70 sets of results

Up to 6 hours operation from a single battery charge

Built-in Li rechargeable battery and smart charger circuit

Can be charged with automobile cigarette lighter battery adapter

Upgrade?software via an integrated RS232C interface

Test results uploaded, conserved and printed by PC Manager software.
Specifications

Item	Description
2M	Internal?Clock	2048kb/s?±10ppm
	Frequency?Deviation	±999ppm

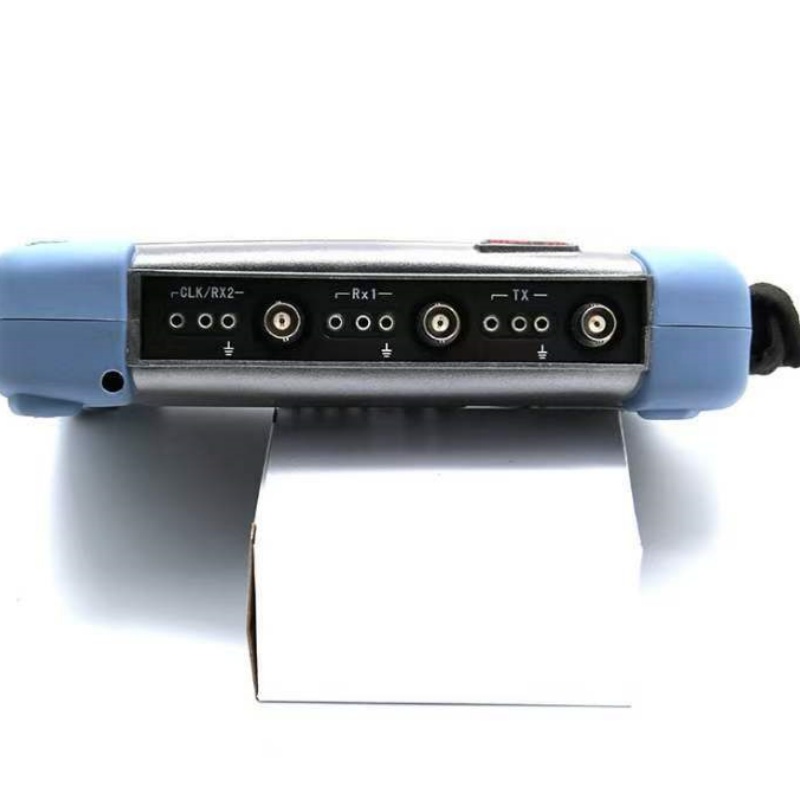

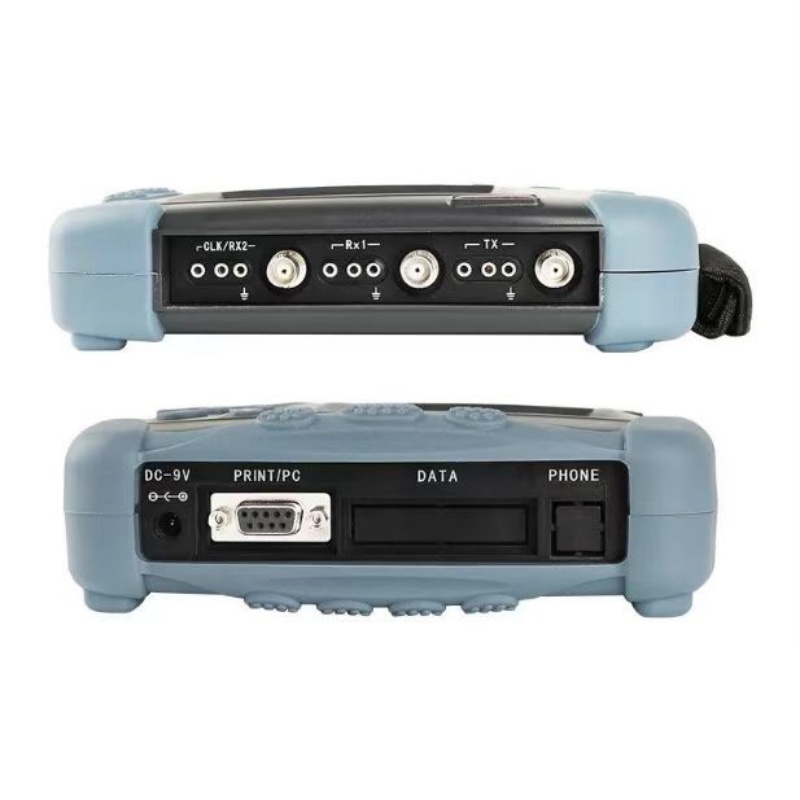

	Line?Interface	75?(Unbalanced),?120?(Balanced);?High?Input?Impedance?>2KW
	Line?Code	HDB3,?AMI
	Framing	Unframed,?PCM30,?PCM30CRC,?PCM31,?PCM31CRC
	Receive?Sensitivity	>-43dB
	Tx?Clock?Source	Internal,?Interface?and?External?2MHz?clock?or?signal
	Pulse?Mask? Measurement	Comply?with?G.703
	Jitter?Measurement	Comply?with?O.172
	Frequency? Measurement	Accuracy:?±1Hz
	Offset?Measurement	Accuracy:?±1ppm Range:?-999ppm~+999ppm
	VF?Injection	Frequency:?200MHz~3400MHz,?Step:?10Hz
		Level:?-60dBm~+3dBm
	VF?Measurement	Frequency:?200MHz~3400MHz Accuracy:?±1Hz
		Level?range:?-60dBm~+3.14dBm -60dBm~-21dBm,?accuracy:?±2.87dBm -20dBm~+3.14dBm,?accuracy:?±0.21dBm
	Delay?Measurement	Accuracy:?±1us
G.703?CO	Line?Rate	64kb/s?±1000ppm
	Line?Interface	120*,?Balanced
	Line?Code	AMI
Datacom	Line?Interfaces	V.24,?V.35,?V.36,?X.21,?RS-449,?RS-485,? EIA-530,?EIA-530A
	Data?Rate	ASYNC	300,?600bit/s,?1.2,?2.4,?4.8,?7.2,?9.6,? 19.2,?38.4kb/s
		SYNC	300,?600bit/s,?1.2,?2.4,?4.8,?7.2,?9.6,? 19.2,?38.4kb/s N×64kb/s?(N=1~32),?4M,?8Mkb/s
Test?Patterns	PRBS	223-1,?220-1,?215-1,?211-1,?29-1,?26-1
	Fixed?Code	1111,?0000,?1010
	16-BIT	User?Programmable?Word

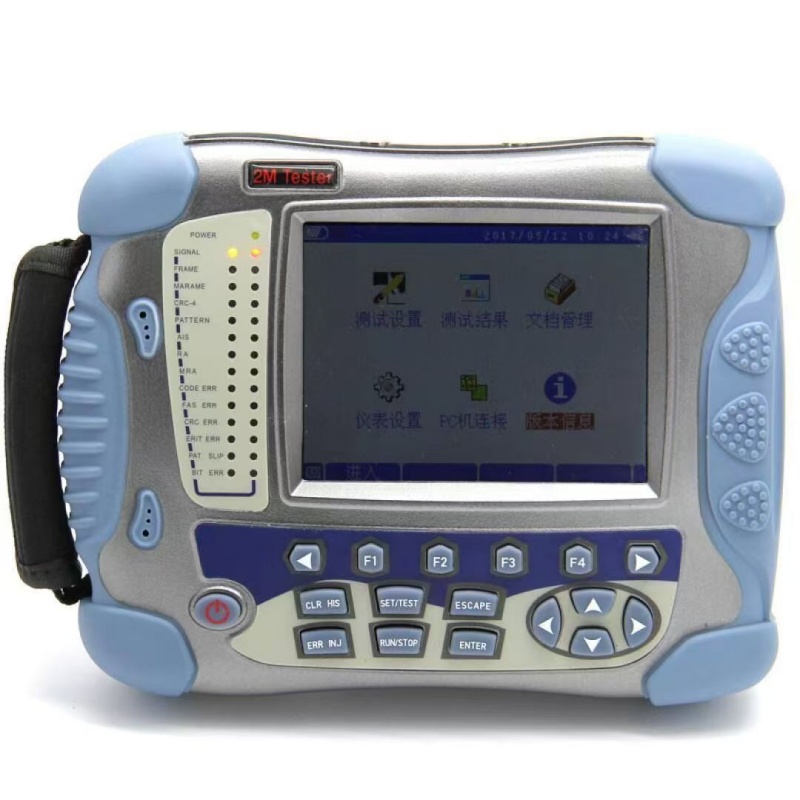

LED?Alarm?Indicators	Signal?Loss,?AIS,?Frame?Loss,?MFrame?Loss,?Pattern?Loss,?Remote?Alarm,? Error,?Clock?Slip.
Error?Injection	Type:?BIT,?FAS,?CRC4,?CODE,?E-BIT
	Single,?Fixed?Rate:?10-2,?10-3,?10-4,?10-5,?10-6,?10-7
Performance?Analysis	ITU-T?G.821,?G.826?and?M.2100
Display	320×240?pixel?backlit?monochromatic?LCD
Serial?Port	RS-232C
Rechargeable?Batteries	5×1.2V?AA?NiMH?batteries,?continuous?working?for?6?hours
Recharge?Time	Approx.?2?hours
AC?Power?Adapter	Input:?100V~240VAC,?50/60Hz?Output:?12VDC/1.5A
TestManager?Pro	WIN98/ME/NT/2000/XP
Dimensions	L×W×H?200mm×160mm×45mm
Operating?Temperature	0℃~50℃
Storage?Temperature	-20℃~+70℃
Humidity	5%~95%?non-condensing

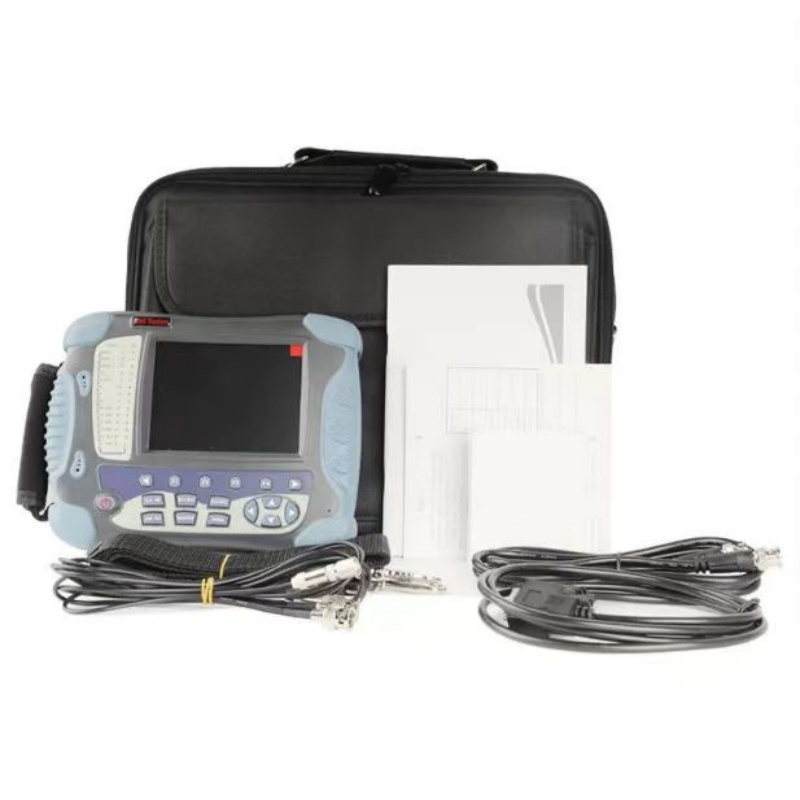

Standard?Accessories

Standard?Items	Quantity	Standard?Items	Quantity
RY1200?2M?Transmission?Analyzer	1pc	Simulation?software	1pc
75*?BNC/L9?E1?test?cable	2pcs	Carrying?case	1pc
BNC/BNC?cable	1pc	User’s?manual	1pc
RS232?serial?upgrading?cable	1pc	Warranty?card	1pc
DATA?converting?line?(36PIN?to?44PIN)	1pc	Certificate?of?conformity	1pc
X.21?testing?line	1pc	V.35?testing?line	1pc
V2.4?testing?line	1pc	V.11?testing?line	1pc
?AC?adapter	?1pc	?	?
