SH-80 Multi-Function Hand Tool Cable Stripping Machine
SH-80 Multi-Function Hand Tool Cable Stripping Machine
SH-80 Multi-Function Hand Tool Cable Stripping Machine
SH-80 Multi-Function Hand Tool Cable Stripping Machine
SH-80 Multi-Function Hand Tool Cable Stripping Machine
SH-80 Multi-Function Hand Tool Cable Stripping Machine
SH-80 Multi-Function Hand Tool Cable Stripping Machine

Video

1 / 7

SH-80 Multi-Function Hand Tool Cable Stripping Machine

$680.00 ~ $1850.00 / Set/Sets
Get Latest Price

Basic Info

Model No. SH-80
Brand Name MARSHINE
Model SH-80
Application Range(mm) 48-80
Max. Stripping Depth(mm) 1.5
Main Insulation Depth(mm) 20
Min. Semiconductor layer Length(mm) 50
Main Materials Aluminum
Net Weight(KG) 2.5
Gross Weight(KG) 5
Dimension(mm) 345*435*165
Customization OEM available
Warranty 1Year
Origin China
Certifications ISO9001
Brand MARSHINE
Lead Time 10-12Days
MOQ 1pcs
Show More

Product description

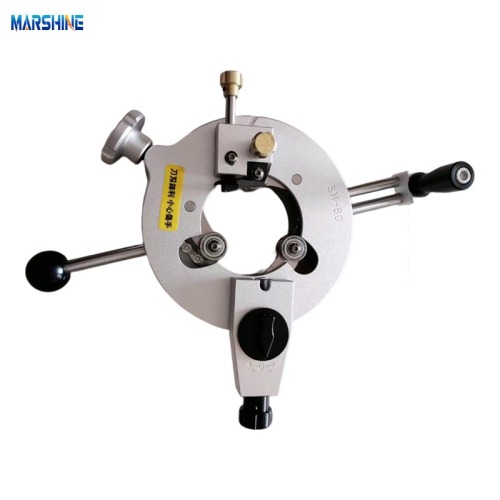

SH-80 Multi-Function Hand Tool Cable Stripping Machine
?
The MARSHINE insists on manufacturing the high-precision tools for the electrical, cable installation and the power-line construction applications. Among it, the SH-80 Multi-Function Hand Tool Cable Stripping Machine as a professional cable preparation device, and it can engineer to strip both the outer semi-conductive layer and the main insulation from the medium to the high-voltage cables. It also provides the users with a rugged and efficient means of the preparing cable ends.
?
This MARSHINE SH-80 Cable Stripping Tool can adjust for the cable diameters ranging from 48 mm to 80 mm.?
The cable stripper supports a maximum semi-conducting layer peel length of 50 mm.?
It maximum peeling depth is 1.5 mm when removing the semi-conductive layer.?
The overall dimensions of the unit are approximately 345*435*165 mm, which can give a compact footprint for the site-use.?
The weight of the device is around 2.5 kg, which make it portable enough for the field engineers.
The change-out blades and the adjustable guides enable the tool to maintain the precision under the long term repeat works across many cable ends.
?
This MARSHINE SH-80 Cable Stripper is an ideal choice for handling the medium size ends of the high voltage power cables in substation construction.
It works effectively for stripping the semi-conducting layer of 48–80 mm diameter cables ahead of the termination installation.
It serves well for the main insulating-layer removing operation when further jointing or connector fitting is required.
It supports the factory-based cable production lines where the large volumes of the cables need the precise end-preparation.
?
Product Parameter

Model

SH-80

Application Range(mm)

48-80

Max. Stripping Depth(mm)

1.5

Main Insulation Depth(mm)

20

Min. Semiconductor layer Length(mm)

50

Main Materials

Aluminum

Net Weight(KG)

2.5

Gross Weight(KG)

5

Dimension(mm)

345*435*165
SH-80 Multi-Function Hand Tool Cable Stripping Machines
