Basic Info
| Model No. | GMS-JT50 |
|---|---|
| Brand Name | GEMS |
| status | New |
| Applicable industry | Hotels, Manufacturing Plant, Retail, Food &Amp; Beverage Shops, Food Shop, Garment Shops, Building Material Shops, Food &Amp; Beverage Factory, Printing Shops, Other, Advertising Company, Construction Works, Farms, Machinery Repair Shops, Restaurant, Energy &Amp; Mining, Home Use |
| Out-of-warranty service | Video Technical Support, Online Support |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
Product description

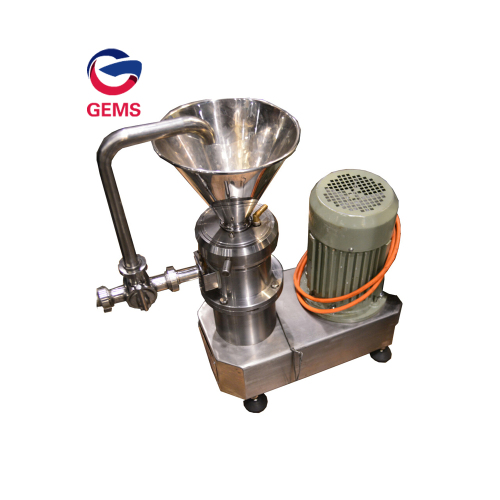

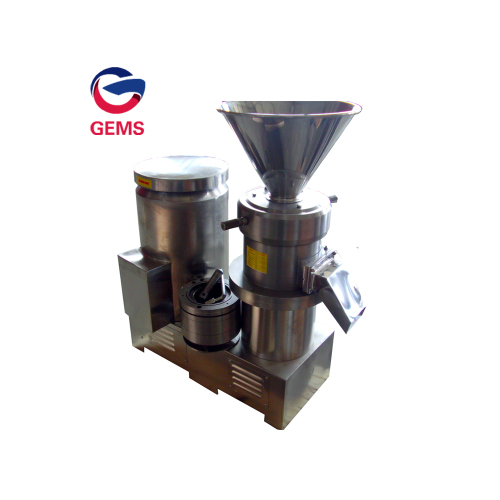

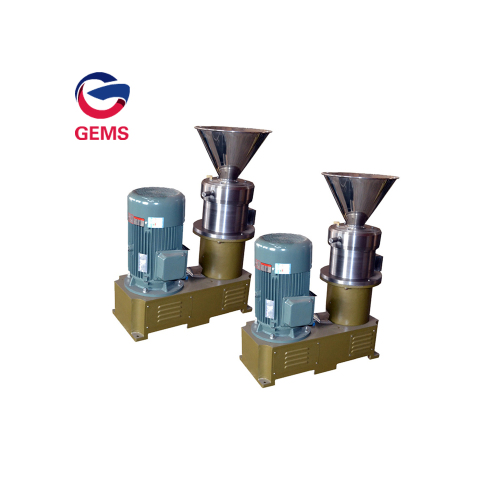

Work Principle for Fresh Ginger Garlic Paste Crusher Making Machine:
This is a machine used in the disintegration of solid particles or droplet size of a liquid present in suspension or emulsion. The machine consists an inlet (which is subjected to a tremendous shearing action that effects a time dispersion of uniform size) and an outlet. Colloid mill works on the rotor-stator principle. The equipment breaks down materials by forming dispersion of material in a liquid. Shearing takes place in a narrow gap between a static cone (the stator) and a rapidly rotating cone (the rotor). To reduce wear, the rotor and stator are constructed using 3Cr13 food grade stainless steel.
Advantages of Garlic Paste Machine:
1) This garlic paste machine adopts 304 stainless steel materials. It is corrosion resistant, non-toxic.
2) The main working parts are stator and rotor. They adopt specially machining and heating technology. So the machine has high machining accuracy and long life.
3) The stator and rotor can be made of different of material according to your application. They have different structures and gear. The user can choose according to their need. It is widely used.
4) The main body and the adjusting ring are equipped with limit device and locking device to ensure the stability of machining gap.
If you want to use this colloid mill into production line, we can provide the horizontal type colloid mill.
Technical Parameters:
| Model |
Power |
Capacity |
Rotation |
Rotor Dia. |
Dimenison |
Weight |
|
GMS-JT50 |
1.1kw |
10-30kg/h |
2820rpm |
50mm |
520*250*555mm |
67kg |
|
GMS-JT80 |
4kw |
70-100kg/h |
2890rpm |
80mm |
685*335*928mm |
173kg |
|
GMS-JT110 |
7.5kw |
200-300kg/h |
2930rpm |
110mm |
700*430*1000mm |
235kg |
|
GMS-JT130 |
15kw |
400-600kg/h |
2930rpm |
130mm |
975*456*1054mm |
330kg |
|
GMS-JT180 |
22kw |
800-1000kg/h |
2930rpm |
180mm |
981*476*1124mm |
420kg |
|
GMS-JT240 |
45kw |
1500-2000kg/h |
2970rpm |
240mm |
1319*500*1276mm |
1000kg |
|
GMS-JT300 |
75kw |
3000-4000kg/h |
2970rpm |
300mm |
1400*620*1400mm |
1600kg |
What is more, we also have the fruit vegetable washing machine, fruit vegetable crusher, fruit vegetable juice extrator and hydraulic press machine to make juice.
Wooden Package & Exporting Cases:
We exported to USA, Portugal, Australia, Ecuador, Chile, South Africa, Panama, Netherlands, Greece, Zambia etc more than 30 countires. We promise export standard free fumigation wooden box.
We also have the different types:
Please contact me for more details:
