Solid-state Laser Light Engine for Illumination

Video

1 / 5

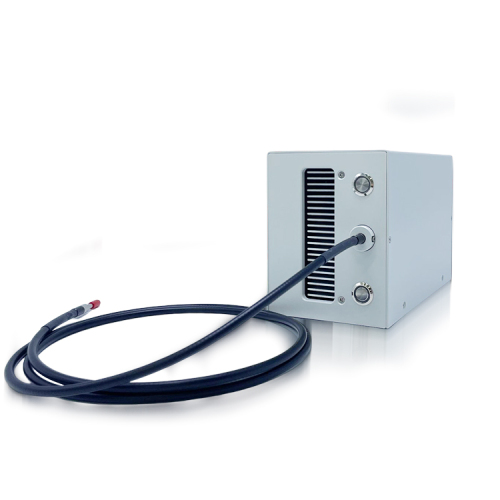

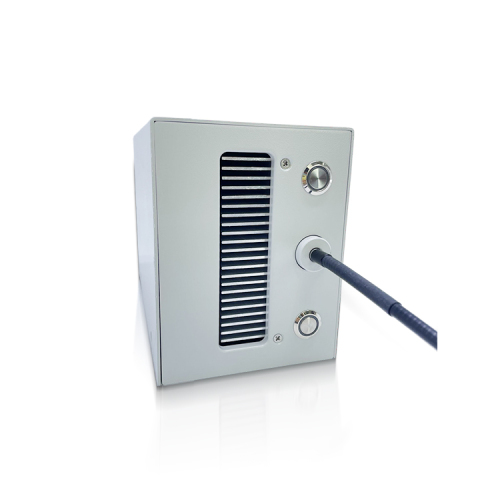

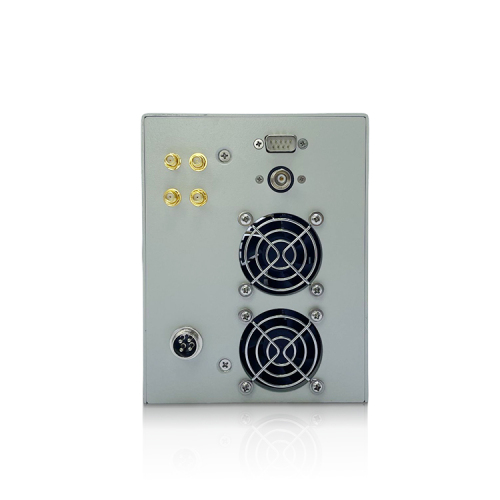

Solid-state Laser Light Engine for Illumination

Get Latest Price

You might also like

1 Piece/Pieces (MOQ)

532nm Green Laser for Microscopy

1 Piece/Pieces (MOQ)

488nm Blue Laser for Microscopy

1 Piece/Pieces (MOQ)

Multi Wavelength Laser For Confocal Laser Scanning Microscopy

1 Piece/Pieces (MOQ)

Laser Source for Confocal Laser Scanning Microscopy

1 Piece/Pieces (MOQ)

Lasers for Confocal Microscopy

1 Piece/Pieces (MOQ)

Basic Info

Model No.	Solid-state Light Engines (SLE)
Brand Name	CNI
status	New
Applied material	Metal, Plastic
Certification	Ce, Iso
Video factory inspection	Provided
Mechanical test report	Provided
Core component warranty period	1 Year
Whether CNC	Yes
place of origin	China
Core selling point	Easy To Operate
warranty period	1 Year
Out-of-warranty service	Video Technical Support, Online Support
Applicable industry	Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Food &Amp; Beverage Factory, Farms, Food Shop, Printing Shops, Advertising Company, Energy &Amp; Mining, Other

Product description

A Solid-State Light Engine (SLE) is an advanced lighting system that utilizes solid-state lighting technology, primarily based on Light Emitting Diodes (LEDs) or Laser Diodes, to generate light, the driver circuit provides a stable power supply to the light source, enabling dimming, color control, TTL and analog control output functions. It integrates multiple components, including the light source, optics, electronics, and thermal management, into a compact and efficient unit. Solid-state light engines are widely used in various applications due to their high efficiency, durability, and versatility.

Solid-state light engines are widely used in modern solid-state illumination markets, such as microscopes and other life science applications. Different SLE models are primarily distinguished by their spectral output. It provides light source output for excitation of GFP/FITC, DAPI,YFP, mCherry, Cy3, Cy5, and spectrally similar fluorophores.

Performance?advantages

Single channel/multi-channel independent control output
High brightness, high efficiency
Precise adjustment of brightness
Support TTL control output
Long Lifespan
Customizable

Application Area

Provides light source output for excitation of GFP/FITC, DAPI, YFP, mCherry, Cy3, Cy5 and spectrally similar fluorophores
photogenetics
Biological sciences
Material science
Microscopic optics

■?Product Catalog - Single Channel

Model


Wavelength

365nm

385nm

405nm

440nm

460nm

470nm

480nm

525nm

SLE-I

Power

1000mW

1900mW

2000mW

1000mW

2300mW

1300mW

400mW

1100mW

Download

Wavelength

555nm

579nm

590nm

630nm

650nm

730nm

White

Power

1000mW

600mW

1000mW

500mW

1300mW

Download

???Model:?SLE-W

Features：

High brightness
Precise adjustment of brightness
Silent operation
Flexible replacement of optical filters

Applications:：

Semiconductor Inspection
Biological Sciences
Materials Science
Micro-optics

Mode	SLE-W
Emitting color	White
Correlated color temperature (typ.)	6500k
Output power	?＞7.5W（?5mm fiber bundle）
Drive method	Constant current mode
Intensity control method	Variable -current control
Control Mode	Power 0-100% adjustable, step length 1%
Power stability	＜1%
Operating mode	CW
Filter?	Equipped with 6 filter holes, automatic switching
Operating temperature(℃)	?10~35
Power Input	100-240V. 50/60HZ
Cooling method	Air Cooled
Size	319.3×204×215.5mm3（Reference）
Weight	7.6Kg（Reference）

??Spectrogram

Dimensions

■?Product Catalog - Multi Channel

Model


classify

Wavelength and Power parameters?per source channel

SLE-IV

(360~730nm)

Standard Product
　

Customized Product
　

SLE-VI

(360~730nm)

Standard Product
　

Customized Product
　
