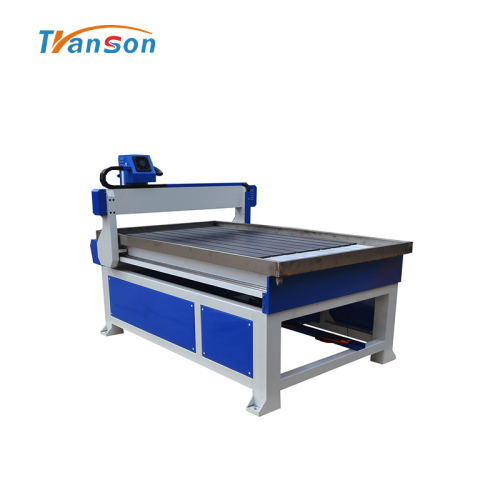

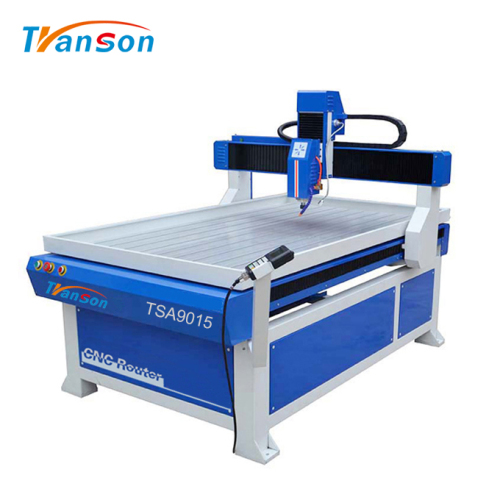

TSA9015 CNC Router for Advertising Industry
Basic Info
| Model No. | TSA9015 |
|---|---|
| Brand Name | Transon |
| Type | Engraving Router |
| Spindle Number | Single-Spindle |
| Controlling Mode | CNC |
| Certification | FDA |
| Customized | Customized |
Product description
This small 9015 advertising CNC router with a cheap price and simple operated DSP control system. It is a good choice for users in advertising industry or hobby CNC router users. Machine standard with water tank and water nozzle, can use as cnc router machine for aluminum, stone, metal.
Parameters:
|
Model |
TSA6090 |
TSA6015 |
TSA9015 |
|
XYZ axis travel distance |
600x900x150mm |
600x1500x150mm |
950x1550x150mm |
|
Feeding height |
150mm |
||
|
Table size |
600x1250mm |
600*1830mm |
1000x1830mm |
|
Spindle power |
2.2kw water cooling(0-24000RPM) |
||
|
Rail type |
linear rails |
||
|
Control system |
Mach3 (USB port) |
||
|
Drive type |
Stepper |
||
|
Transmit |
Ball screw |
||
|
Table type |
Aluminum profile T slot clamping |
||
|
Max travel speed |
12000mm/min |
12000mm/min |
8000mm/min |
|
Working precision |
0.05mm |
||
|
Power |
AC220V±10%/50~60Hz |
||
|
Compatible Software |
Type3/ Artcam/ UG/ Pro-E/ Mastercam/ Ucancam etc |
||
|
Command code |
HPGL, G code |
||
|
Machine/packing size |
1.35*1.1*1.3m/ 1.49*1.24*1.5m |
1.82*1.1*1.32m/ 1.96*1.24*1.54m |
1.8*1.49*1.32m/ 2.13*1.62*1.6m |
|
Net/Gross weight |
300kg / 350kg |
500kg / 550kg |
500kg / 600kg |
Machine details:

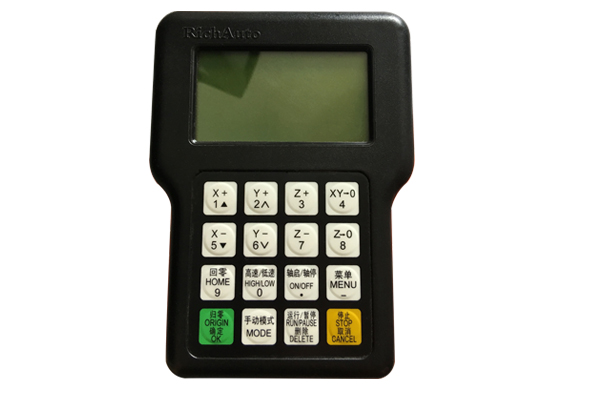

1, DSP control system, easy operate, no need connect cnc router machine to computer, save space.
2, T-slat aluminum worktable fixed with bending kits to ensure work piece is fix firm and no shake during craving. With the features of low cost and flexible method, it is suitable for work pieces with irregular shapes or difficult to fix work pieces. When processing technology, especially for relief, hollowing, cutting, aluminum T-slot working table is the best choice for users.
3, WHD 2.2KW water cooling Spindle(0-24000RPM), optional 3KW, water cooling spindle is use water circulation to cool the heat generated after the spindle rotates at high speed, with the features of low noise, good cooling effect, long service life and high accuracy.
APPLICATION
Application of advertising CNC routers:
Woodworking industry
Processing of three-dimensional wave board, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window, and auxiliary processing of shoe polishers, game machine cabinets and panels, mahjong tables, computer tables and panel furniture.
Advertising industry
Advertising signage, logo making, acrylic cutting, plastic molding, and processing of various advertising materials and decorative products.
Mold industry
It can engrave copper, aluminum, iron and other metal molds, as well as artificial marble, sand and stone, plastic plates, PVC pipes, wooden boards and other non-metal molds.
Craft gift industry
It can carry out a variety of shadow carvings, reliefs, and widely used in crafts industry.
Samples:
