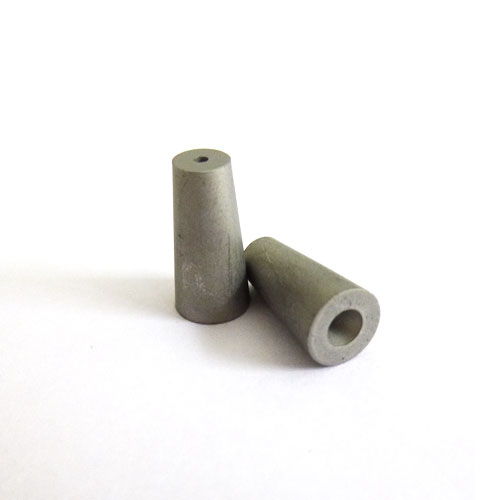

Tungsten Carbide Water Jet Nozzle for Industry

For nozzles, tungsten Carbide nozzle is the most rugged and durable and provides the best value.

A nozzle is a device designed to control the direction or characteristics of a flow (especially to increase velocity) as it exits (or enters) an enclosed chamber or pipe via an orifice. For nozzles, tungsten Carbide nozzle is the most rugged and durable and provides the best value.

Tungsten carbide nozzles are made by the precision machining with the tungsten carbide materials (superhard alloy). The hardness reached over HRA90 degree while the anti-bending degree reached over 2300N/mm2. On machining tungsten carbide nozzle, we do the precision grinding and surface treatment to achieve Ra0.1 of the bore roughness and the Ra0.025 of the R place of both ends. There is a scientific curvature radius design in the both entrance. This design can ensure a smooth transit of the thread. Due to the overall materials processing, and no elevation in the bore, the phenomenon of easy-bending and plugging has been improved comparing with the ruby nozzle.

Tungsten carbide nozzle is made from hot pressing with straight bore and venturi bore type. Due to its hardness, low density and excellent wear and anti-corrosion, Tungsten carbide nozzle has been widely used in sandblasting and shot peening equipment, offering a long life with optimum air and abrasive use.

Cutstar Carbide Standard Grades

Cobalt Binder Grades



Nickel Binder Grades

Types



There are five kinds of the nozzles including cross type(4 slots), Y type(3 slots), hexagonal type, internal hexagonal type and plum blossom type according to the assembling and disassembling with different tools(wrench).

All kinds of the thread including the metric norm, inch norm, and USA norm(thick teeth, fine teeth, and special teeth) can be made, and the accuracy of the thread reaches 3 A of the American standard(the highest accuracy). The size of water jetting holes of the nozzles that we now produce is from 0 to 17.5mm diameters. The quality of the products takes an advanced level in China.
