Introduction

 Variable Hanging Bracket Type E is similar to Type D Variable Spring Hangers for installation location but featured to adjust the installation length via bottom turnbuckle.

Constant spring supports are mechanical devices that are used to support and balance loads that undergo vertical thermal expansion or contraction. They are designed to maintain a constant load on a pipeline or structure despite changes in temperature, preventing damage to the system. Constant spring supports consist of a spring coil that is attached to a load-carrying beam, which is in turn attached to the pipeline or structure. The spring coil is designed to support the load at a constant level, regardless of any thermal expansion or contraction that occurs. These supports are commonly used in industrial applications such as power plants, refineries, and chemical processing plants.

Technical parameters

Displacement range: 0~120mm @ 30, 60, 90,120mm.

Load range: 154~217384N

Operating temperature range: -20~200℃(For out range temperature material to be tailored)

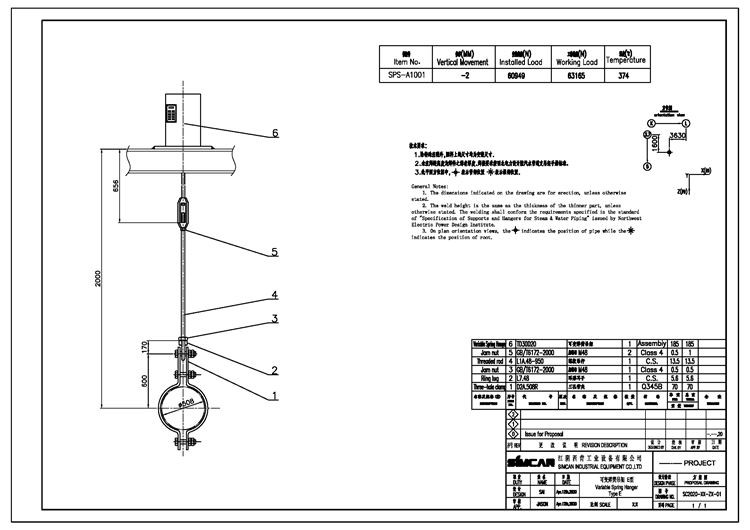

Sample design drawing
