Waste Container Platform Scale Load Cell 100kg
$5.00
~ $7.90
/ Piece/Pieces
Get Latest Price
You might also like
Basic Info
| Model No. | GPB100 |
|---|---|
| Brand Name | GALOCE |
| place of origin | China |
| principle | Resistance Sensor |
| Output | Analog Sensor |
| Amplifier type | Standard, Analog Output |
| Place Of Origin | Shaanxi, China |
Show More
Product description

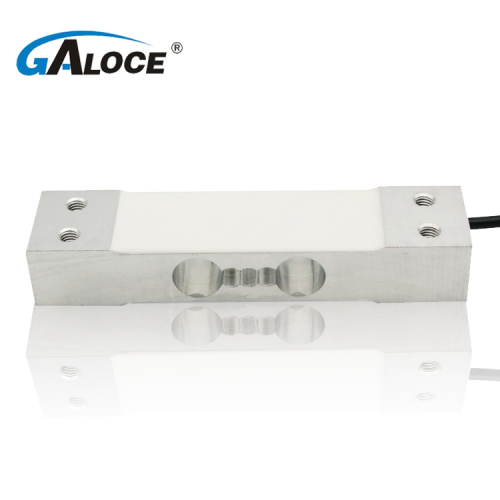

GPB100-C3 single point load cell is high accuracy load cell senosr, hot sales for electronic counting scales, smart shelves, etc which needs high quality weighing condition. GPB100-C3 beam load cell is our new arrival product, has high accuracy, made of aluminum alloy material, and we recommend the max platform of it is 250×350mm. Checked here if you are interested more precision load cell. C4 single point load cell maybe will suitable for your application.
What is GPB100-C3 Single Point Load Cell detail ?
|
Rated Capacity
|
3, 6, 10, 15, 20, 30, 40, 50kg
|
|
|
||
|
Accuracy class
|
C3
|
Compensated Temp.Range
|
-10℃～+40℃
|
||
|
Comprehensive error
|
0.02%
|
Recommended Excitation
|
5～12VDC
|
||
|
Rated output
|
2.0±0.1mV/V
|
Maximum Excitation
|
18VDC
|
||
|
Zero Balance
|
±5%F.S
|
Operating Temp.Range
|
-20℃～+60℃
|
||
|
Linearity Error
|
±0.02%F.S
|
Safe Overload
|
150%F.S
|
||
|
Repeatability Error
|
±0.015%F.S
|
Ultimate Overload
|
200%
|
||
|
Hysteresis Error
|
±0.015%F.S
|
Insulation Resistance
|
≥2000MΩ(50VDC)
|
||
|
Creep
|
0.03%/30min
|
Cable length
|
Φ4mm×0.4m
|
||
|
Input Resistance
|
405±10Ω
|
Cable
|
4-Wire Shielded Cable
|
||
|
Output Resistance
|
350±3Ω
|
Protection Class
|
IP65
|
||
|
Temp.Effect on Output
|
0.03%/10℃
|
Wiring code
|
Exc+：Red Exc-：Black
|
||
|
Temp.Effect on Zero
|
0.05%/10℃
|
|
Sig+：Green Sig-：White
|
||
