wire drawing machine price/steel wire drawing machine

Video

1 / 6

wire drawing machine price/steel wire drawing machine

$5500.00

≥1 Set/Sets

Get Latest Price

You might also like

1 Set/Sets (MOQ)

Automatic Wire ring loop Bending Machine

1 Piece/Pieces (MOQ)

wire circle ring making machine for concrete pile

Automatic Steel Wire Spiral Ring Making Machine

2-8mm Steel bar wire ring machine concrete pole

1 set (MOQ)

Automatic wire ring making machine for concrete pile

1 set (MOQ)

Steel wire ring making machine

1 set (MOQ)

Automatic wire ring making machine

1 set (MOQ)

automatic Steel wire ring making machine

1 set (MOQ)

Basic Info

Model No.
Brand Name
place of origin	China
status	New
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Ordinary Product
Core component warranty period	1 Year
Core components	Engine
warranty period	1 Year
Out-of-warranty service	Video Technical Support, Online Support
Where to provide local services (in which countries are there overseas service outlets)	None
Applicable industry	Manufacturing Plant, Construction Works
Showroom location (in which countries are there sample rooms overseas)	None

Product description

Product Description

Model No.	LW-1-6/650	LW-1-6/560	LW-1-7/450	LW-1-6/350
Max. input dia.	8mm	6.5mm	3.4mm	2.5mm
Min. output dia.	2.5mm	2mm	1mm	0.75mm
Max. drawing pass	N:1-10	n: 1 - 10	n: 1 – 8	n: 1- 8
Tensile strength of wire rod	>100 Kg/mm2	>110 Kg/mm2	128 Kg/mm2	>140 Kg/mm2
Max. average reduction	30%	30%	20%	21%
Designed total reduction	75-85%	78-88.5%	77.9%	78%
Max. speed of block	200 m/min	245 m/min	346.9 m/min	200 m/min
Total power	55 KW	18.5-30 KW	7.5-11 KW	7.5-11 KW
Weight	2500kg	2000 kg	1500 kg	1000 kg
Overall dimensions(LWH)	1900x1300x2300 mm	1800x1150x1750 mm	1520x810x1700 mm	1400x800x1500 mm

1. Usage: Pulley wire drawing machine is an ideal equipment used to draw steel wire material of high, medium and low carbon steel , as well as copper, aluminum and alloy, the machines are applied to drawing wire in the factories and nail, screw and rivet making factories etc.

2. Structure: the equipment consists consist of main reduction box, die casing , wheel frame ,

Wire brace and electrical control system. The spinning drawing blocks are driven by JZT or Y series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body, the gear pair is lubricated with oil.
In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block.

3. The machine runs with crawl or linkage. The safety halt gear is installed by the position of operation block.

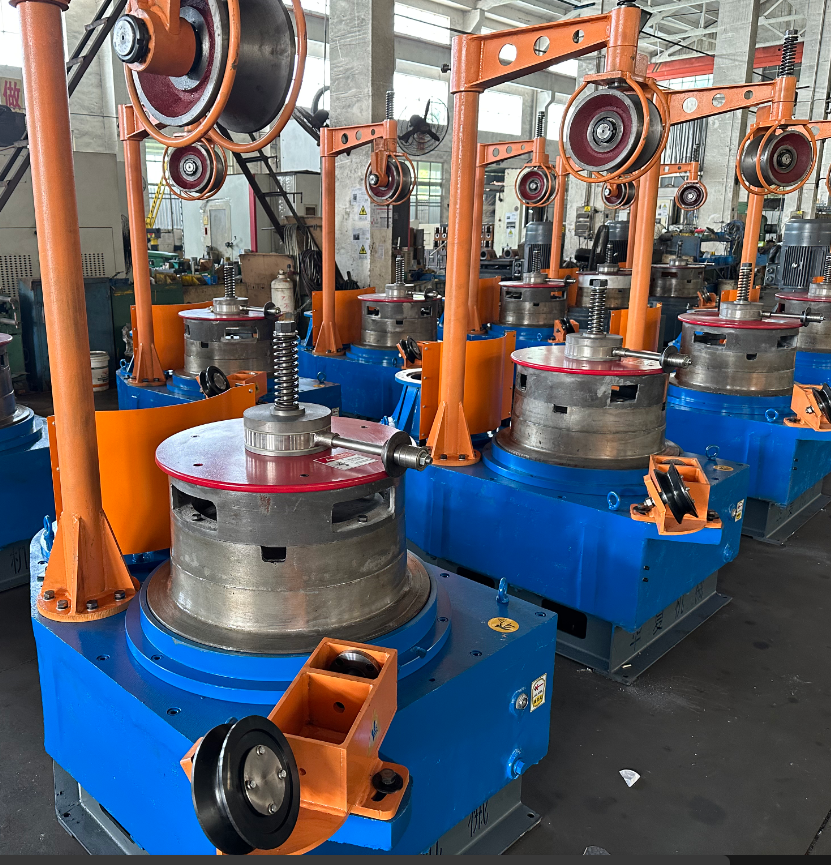

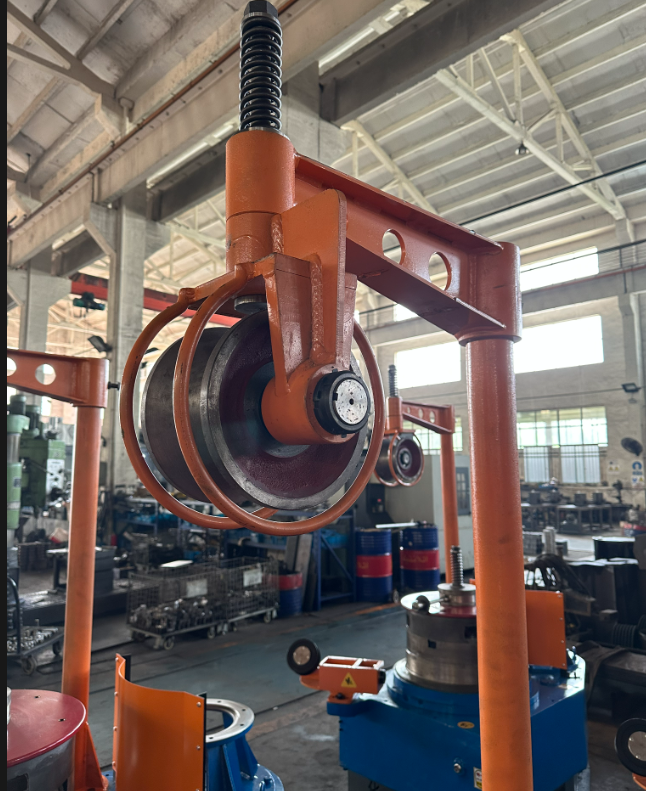

automatic steel Wire Drawing Machine wire drawing machine for steel wire
