wireless qr code reader android handheld

$25.50

≥1 Others
$22.50

≥50 Others
$19.50

≥200 Others

Options:

WNL-6000g

Get Latest Price

You might also like

Products Scanner Code Scanner barcode scan module

wireless qr code reader android handheld

Embedded 1D Barcode Scanner Module 32 Bit

CCD Imaging 1D Barcode Scanner Engine

Basic Info

Model No.	WNL-6000g
Brand Name	winson
Certification	Ce
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd, Cmos
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Call Center And On-Line Technical Support
Products Status	Stock
Type	Laser Handheld Barcode Scanner
Scan Element Type	Laser
Colour Depth	32 Bit
Interface Type	usb, PS/2, RS232
Max Paper Size	N/A
Optical Resolution	5mil
Scan Speed	100±20 scans/second
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Color	Black
Product Name	Portable Barcode Scanner
Product Type	Portable Laser Scanner
Interface	RS-232/RS-485/USB HID KEYBOARD/PS2/USB VCP
Light Source	650nm Visible Laser Diode
Scan method	Bi-directional
Scan rate	100+-20 scans/second
Curvature	R≥15 mm (EAN8),R≥20 mm (EAN13)
Min .PCS value	>30%UPC/EAN 13(13mil)
Voltage	DC5V+-10%
Current	Max 135ma

Product description

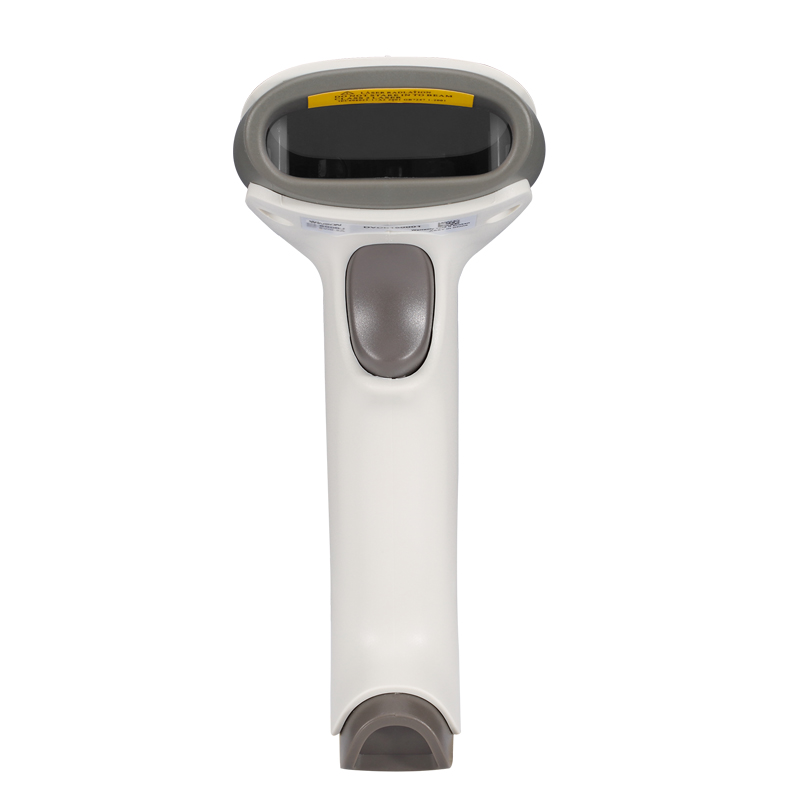

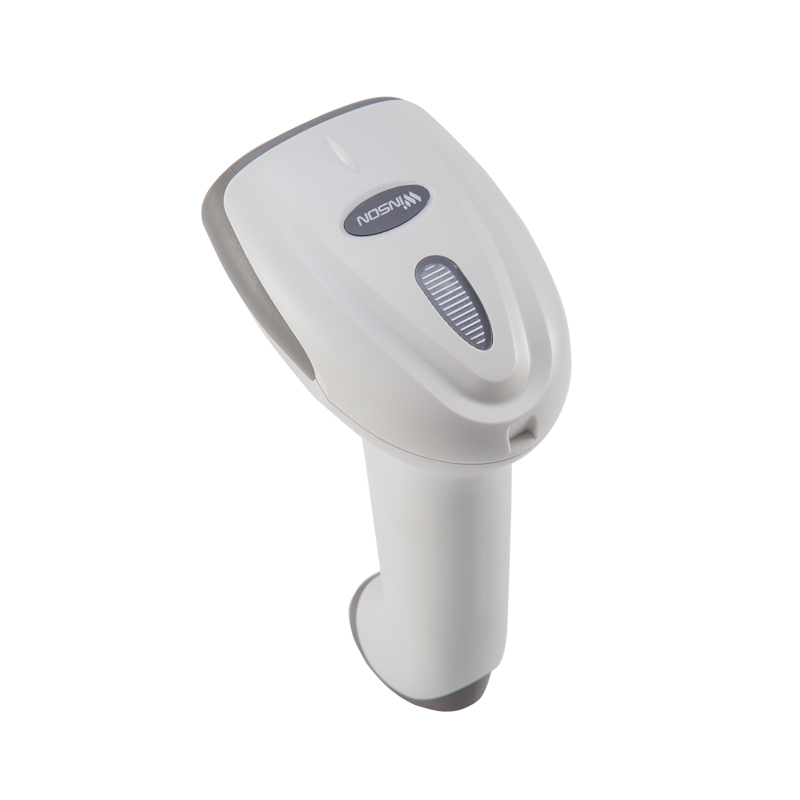

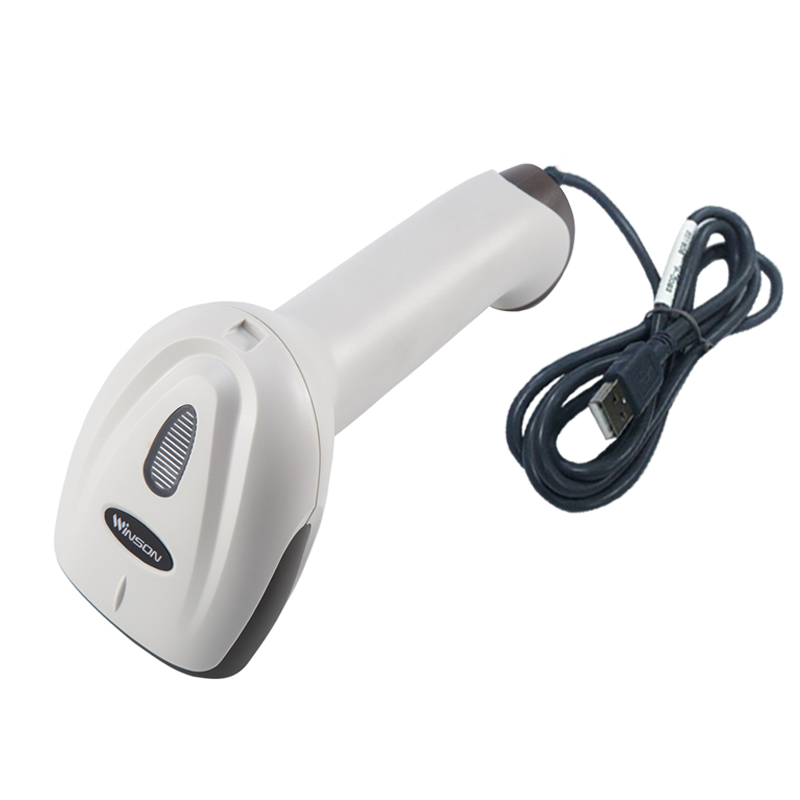

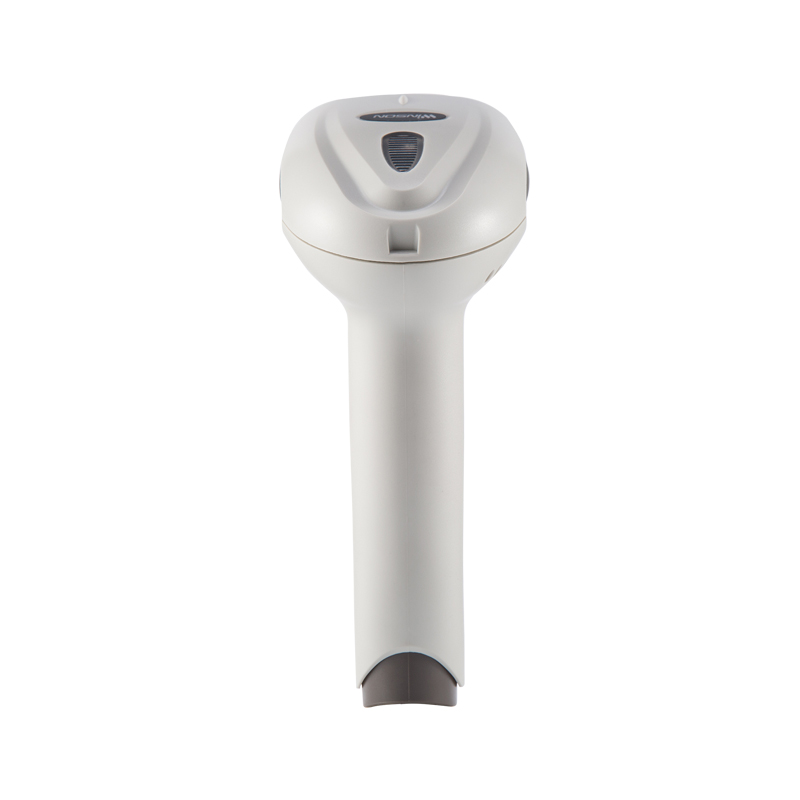

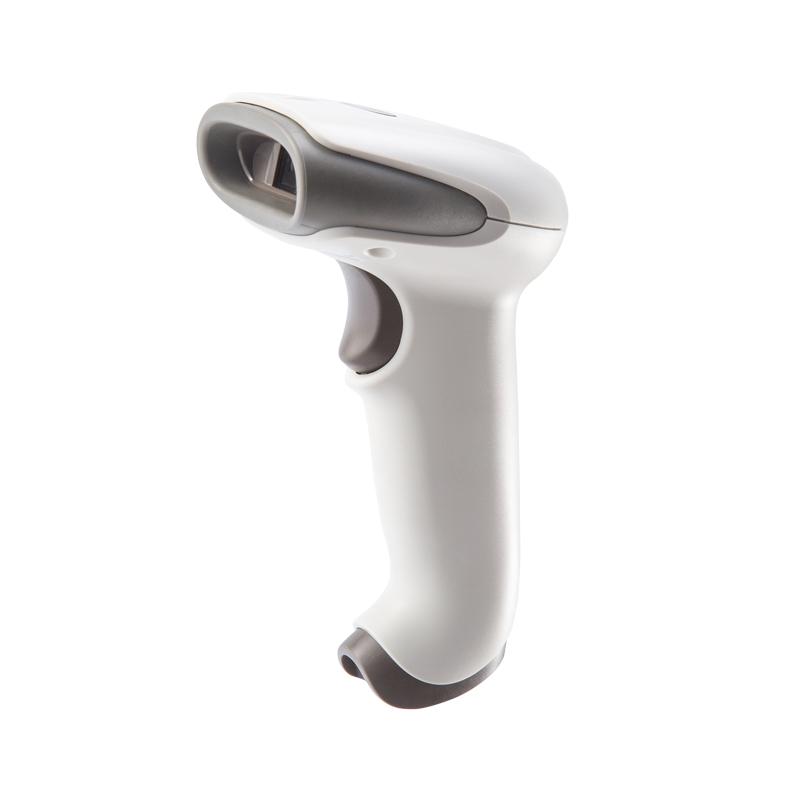

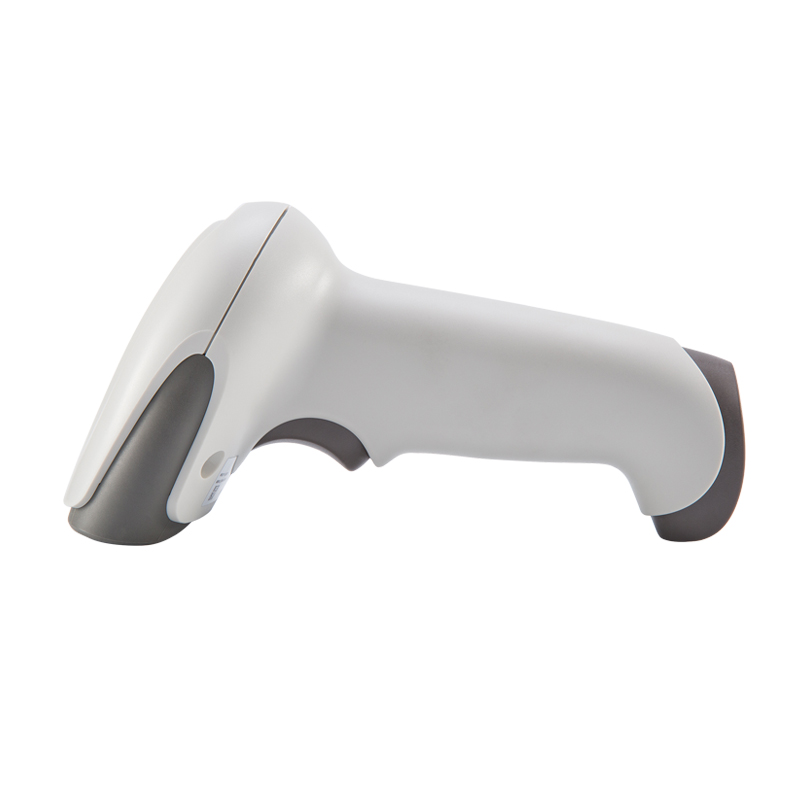

Excellent decoding performance Laser Bar code Reader Portable

1D Embed scan module

Factory direct sale, Low price high performance Barcode Scanner For Warehouse.

With mini USB receiver, plug and play Ccd Fix- Mounted Scanner.

2d Scanner Barcode

Better scanning performance 32-bit CPU, scanning code speed up to 120 scans per second. Support bidirectional scanning Accurate scanning, the error rate is 1 / 5,000,000.


Compatibility Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on.	Mechanical Shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken.

1.Support 1D long barcodes:
Winson WNL-6000 Laser Barcode Scanner can read 1D long barcode which length is beyond 10cm, and it can also read the 1D barcode under the direct sunlight.
2.Install conveniently, operate simply:
Plug and Play: No any driver or app needed, USB 2.0 cable wired connection, just insert the data cable into POS, computer or cash register, you can start to scan.

technical parameters
Electrical Characteristics
Interface	RS-232/USB HID KEYBOARD/USB VCP/RS-485/PS2
Voltage requirement	DC 5V±10%
Current consumption	Max:135mA
Optical Characteristics
light source	650nm visible laser diode
Performance Characteristics
Operating mode	single read multiple read Continuous read
Scan Rate:	100 scans/second± 20 scans/second
Decode angle	Pitch angle:±35° Skew angle:±75° Tilt angle:±40°
curvature	R≥15 mm (EAN8),R≥20 mm (EAN13)(resolution=0.26mm,PCS=0.9)
Min resolution	SR:0.127/5mil(PCS 0.9) HD:0.08/3.2mil(PCS 0.9)
Min .PCS value	>25%UPC/EAN 13(13mil)
error rate	1/500W
Language	multiple languages
Identification	EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST
Physical Characteristics
Dimensions	70mm95mm168mm(LWH)
Weight	132.4g
Environmental Characteristics
Temp	-20°-65°C / -4°- 149°F((operation) ) -30°- 70°C /-22°- 158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Shock drop test	1.5m drop onto concrete surface
MBTF	30,000 hours except laser diode (10.000 hours) and except mirror scan unit (10,000 hours)
Regulatory
Laser Safety	JIS-C-6802 Class 2
Electrical Safety	UL 60950,EN/IEC 60950
EMI/RFI	FCC Part 15 Class B,EN 55024/CISPR 22
Environmental	RoHS
