XT738M XTIOT Barcode Scanner Module Engine for Price Checker
$25.00
~ $40.00
/ Piece/Pieces
Get Latest Price
You might also like
Basic Info
| Model No. | XT738M |
|---|---|
| product status | Stock |
| Types of | Barcode Scanner |
| Scanning element type | Cmos |
| Color point | 32 Bit |
| Interface Type | Usb, Com |
Show More
Product description
|
Performance parameters
|
|
|
Image sensor
|
CMOS
|
|
DPI(W*H)
|
640px*480px
|
|
Floodlight
|
White LED
|
|
Read code type
|
1D
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc
2D
QR, MicroQR, PDF417, MicroPDF, DataMatrix, Aztex, Maxicode, hanxin, etc.
|
|
Accuracy
|
≥5 mil
|
|
Rotation Sensitivity
|
Tilt：±50°
Rotation： 360°
Deflection： ±50°
|
|
Field of view angle
|
Horizontal：40°
Vertical：29°
Diagonal：49.4°
|
|
Data interface
|
USB KBW, USB CDC, USB HID POS, TTL 232
|
|
Electrical parameters
|
|
|
Working voltage
|
3.3VDC±10%
|
|
Working current
|
250mA (Typical)
|
12PIN Interface Definition Table:
|
PIN#
|
Definition
|
I/O
|
Function Description
|
|
12
|
VIN
|
-
|
3.3V power input
|
|
11
|
VIN
|
-
|
3.3V power input
|
|
10
|
GND
|
-
|
power ground
|
|
9
|
RXD
|
I
|
TTL232 level reception
|
|
8
|
TXD
|
O
|
TTL232 level transmission
|
|
7
|
USB_D-
|
I/O
|
USB D-signal
|
|
6
|
USB_D+
|
I/O
|
USB D+ signal
|
|
5
|
GND
|
-
|
power ground
|
|
4
|
BUZ
|
O
|
Buzzer signal output
|
|
3
|
LED
|
O
|
Decoding success indication signal output
|
|
2
|
nRESET
|
I |
Machine reset input
|
|
1
|
nTRIG
|
I |
Code reading trigger signal
|
Video

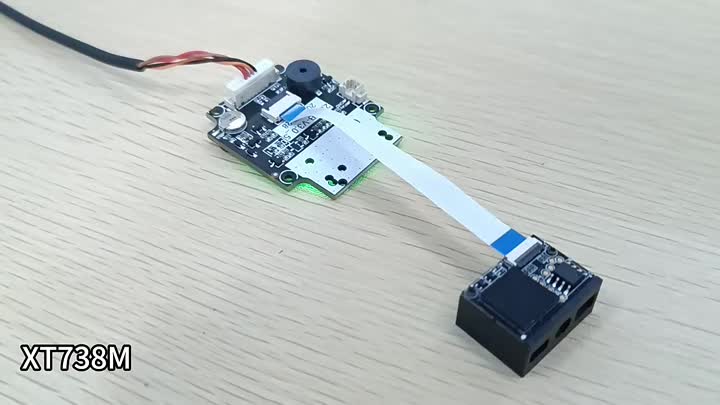

XT738M Barcode Scanner Module
XT738M Barcode Scanner Module
XT738M Barcode Scanner Module
