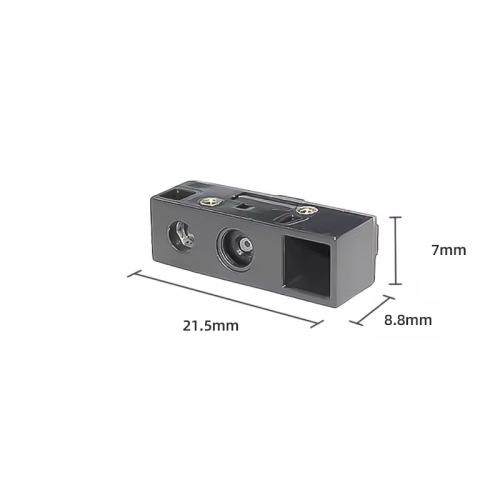

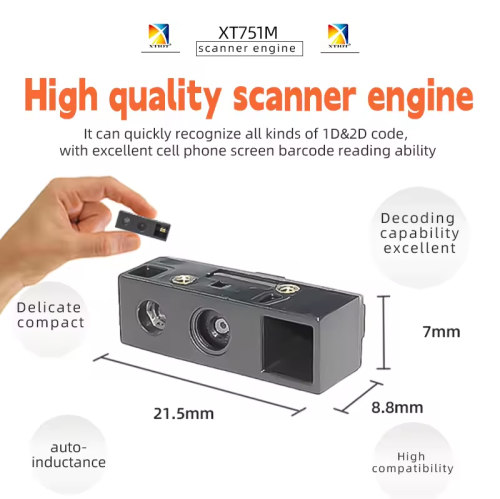

XT751M XTIOT Barcode Module Data Matrix 2D Scanner
$25.00
~ $40.00
/ Piece/Pieces
Get Latest Price
You might also like
Basic Info
| Model No. | XT751M |
|---|---|
| Types of | Barcode Scanner |
| Scanning element type | Cmos |
| Color point | 32 Bit |
| Interface Type | Com, Usb |
| place of origin | China |
Show More
Product description
|
Performance parameters
|
|
|
Image sensor
|
CMOS
|
|
Resolution
|
640px * 480px
|
|
Floodlight
|
White LED
|
|
Focusing
|
Red light LED
|
|
Read code type
|
1D
Code 128（ISBT 128, AIM 128, GS1 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GS1 DataBar, Plessey, Febraban, etc.
2D
QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite, etc.
|
|
Accuracy
|
≥3mil |
|
Sensitivity
|
Tilt ±55°
Rotate 360°
Deflection ±55°
|
|
Field of view angle
|
Horizontal 43°
Vertical 32°
Diagonal 53.6°
|
|
Read mode
|
Trigger mode, Induction mode, Continuous mode, Serial command mode, Batch mode
|
|
Data interface
|
USB, VCOM, HID POS, TTL-232
|
PIN Definition
|
Pin
|
Definition
|
I/O
|
Description
|
|
1
|
GND
|
-
|
The power input is negative
|
|
2
|
nTRIG
|
I
|
Trigger key input signal, and keep low level more than 5 ms can trigger reading code
|
|
3
|
nRST
|
I
|
Reset signal input, low valid. Keep a low level above 100 us can reset the device
|
|
4
|
LED
|
O
|
Indicator output signal, idle output low level
|
|
5
|
BUZZER
|
O
|
Passive buzzer output signal, idle output low level
|
|
6
|
EXT.LED.CTRL
|
O
|
External lighting control signal
|
|
7
|
USB_D+
|
-
|
USB_D + signal
|
|
8
|
USB_D-
|
-
|
USB_D - Signal
|
|
9
|
UART_TX
|
O
|
TTL level transmission
|
|
10
|
UART_RX
|
I
|
TTL level reception
|
|
11
|
GND
|
I
|
The power input is negative
|
|
12
|
VCC
|
I
|
The power input is positive 3.3V
|
|
13
|
VCC
|
-
|
The power input is positive 3.3V
|
