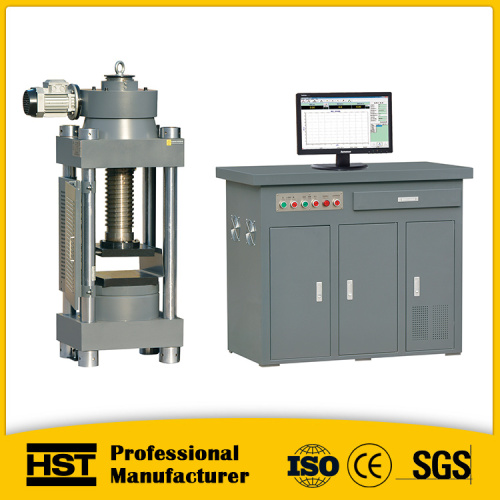

YAW-2000D Computer Control Compression Testing Machine

Get Latest Price

Model No.	YAW-2000D
Brand Name	HST/OEM
Place Of Origin	Shandong,China
Certificate	CE,ISO
Packing	Standard Export Wooden Case
Transportation	Sea, Air , Train
Brand	HST Or OEM
Port	Qingdao,Beijing, Shanghai
Power:	AC380V Or 220V

YAW-2000D Series Computer Control Compression Testing Machine

Product Discription

Used in tensile, compression, bending, shearing, peeling, tearing, low cyclic test for plain round bar, ribbed steel bar, straight steel bar, metallic plate, metallic rod, wire and cables, casting, bolt fastener, metallic tubes, scaffold steel tubes, etc. Support for multi-language user-interface extendibility, pre-installed with American English and Simplified Chinese. Dynamic display of load, displacement, time and real-time testing curve on the screen. Closed loop control of channels such as load, displacement, etc. Smooth switching in between. Constant loading speed test supported.Capable of holding on maximum load or displacement.Support for compression tests on various metal or non-metal materials to inspect their mechanics performances.

Features

Computer control up, down, test, stop and loading progress
Electric screw ball adjust test space
Unibody desktop oil source control cabinet
This machine consist of the host machine, oil source and control system.
Can realize the load rate, such as load or stress rate loading
Can auto printing

Controlling system

This machine is with digital and multi-channel loop of measuring and controlling system. It adopts force closed loop control technique and has the function of constant stress loading and load keeping. Loading speed can be arbitrarily set and the testing curves can be real time displayed.

Software

The software integrate compression resistant test procedure , such as bricks, cement, concrete and mortar.
There is no subsection in all process. (Or classify according to the requirements of customers.)
Complete test in batch automatically and adjust breaking of specimen.
PC will display test force, peak, time and test curves, etc.
Full control process is fully controlled by PC. It is easy to manage and control, collect and calculate.
Record and save testing data automatically.
Customer design testing report

Technical parameters

Model	YAW-2000D	YAW-3000D
Max. Load	2000kN	3000kN
Control method	Computer auto control loading process
Test space adjustment mode	Electric ball screw adjust
Oil source control cabinet structure	One-piece oil source control cabinet
Test class	1 class
Testing range	4%-100%FS
Load display accuracy	Better than ±1%
Piston stroke	50mm		80mm
Distance between upper and lower platen	320mm		340mm
Max space between two columns	260mm		280mm
Size of upper and lower platen	250×250mm		260×260mm
Power supply	2.1Kw/AC380V		2.3Kw/AC380V

YAW Series Digital Display Compression Testing Machine

Certificates:

Factory&Office:

Factory Team

Computerized Universal Testing Machine

FAQ

Q1:Are your company a trading one or a factory?

A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.

Q2:After an order is placed, when to deliver?

A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.

Please be aware that our production lead times depend on specific items and item quantities.

Q3:What about the warranty with after - sales services?

A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest

problems and complaints in a professional and timely.

Q4:What about the product' services and quality?

A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer`s company when you need. Products are widely recognized and trusted by users.
