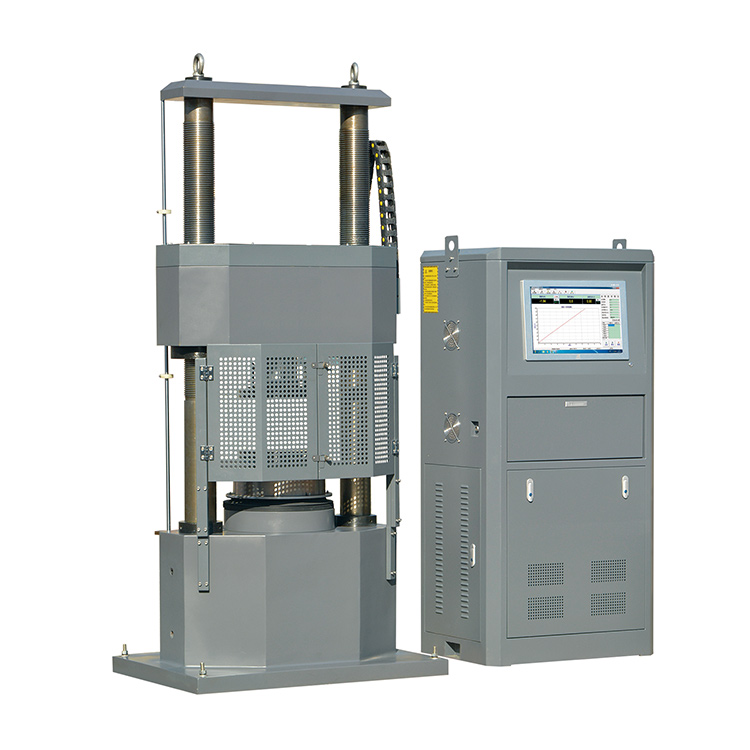

YAW-3000E Computer Control Compression Testing Equipment

Application

YAW-E Series Compression Testing Machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.

This machine has been specifically designed to suit the requirements of Central and Commercial laboratories of the construction industry and Civil engineering in general. This universal tester, in fact, can be used for tensile tests on steel re-bars up to 40 mm dia., flats up to 35x75 mm,  and compression tests on standard concrete specimens. It can also be used, with the appropriate accessory, for transverse and bending test on steel, flexural tests on concrete beams and general compression tests. Specialò accessories are also available for testing steel strands and electro-welded steel  screen.

All the control functions are managed from a standard keyboard and mouse. The frame differ substantially from the old traditional models because of the originality of the design as for example the remote control displacements and gripping systems. The software include a complete suite of programs: tensile, bending, flexure  and compression tests.

Once the specimen has been placed in the machine (using accessories if required) and the specimen data introduced, the test is run completely automatically at the press of a button up to the printout of the test certificate and the storage of the test data.

Features

Computer control up, down, test, stop and loading progress

Double electric screw ball adjust test space

Unibody desktop oil source control cabinet

This machine consist of the host machine, oil source and control system.

Can realize the load rate, such as load or stress rate loading

Can auto printing

Technical parameters

Model	YAW-3000E
Max. Load	3000kN
Control method	Computer auto control loading process
Test class	1 class
Testing range	1%-100%FS
Load display accuracy	Better than ±1%
Piston stroke	150mm
Distance between upper and lower platen	600mm
Piston displacement speed	0-60mm/min
Speed	20mm/min
Distance	480mm
Loading speed	0.02%-2%FS/s
Size of upper and lower platen	Φ300mm
Power supply	2.5Kw/AC380V

Controlling system

This machine is with digital and multi-channel loop of measuring and controlling system. It adopts force closed loop control technique and has the function of constant stress loading and load keeping. Loading speed can be arbitrarily set and the testing curves can be real time displayed.

Software:

The software integrate compression resistant test procedure , such as bricks, cement, concrete and mortar.
There is no subsection in all process. (Or classify according to the requirements of customers.)
Complete test in batch automatically and adjust breaking of specimen.
PC will display test force, peak, time and test curves, etc.
Full control process is fully controlled by PC. It is easy to manage and control, collect and calculate.
Record and save testing data automatically.
Customer design testing report

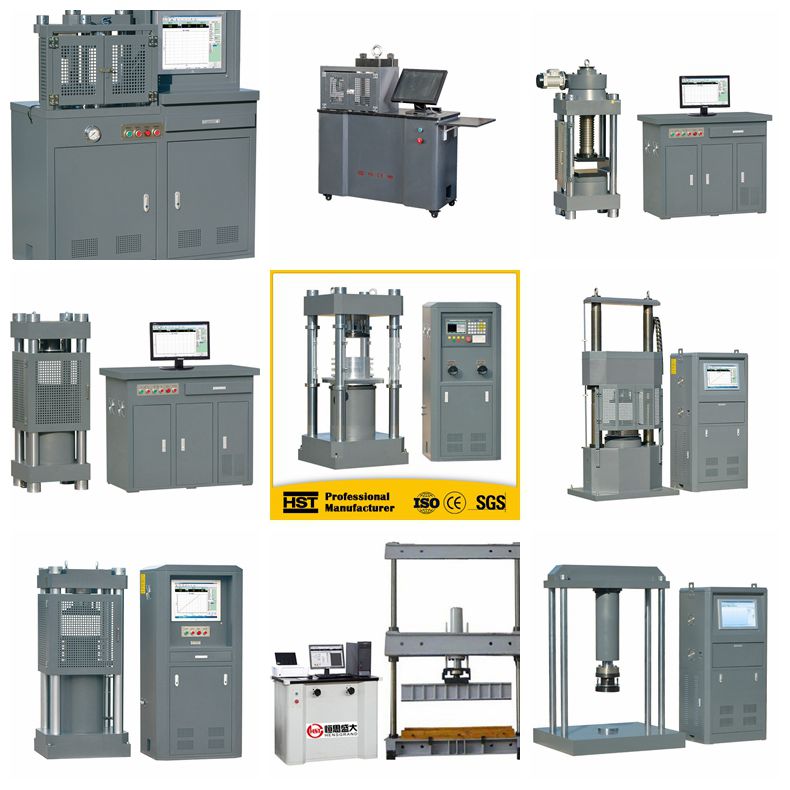

YAW Series Digital Display Compression Testing Machine
