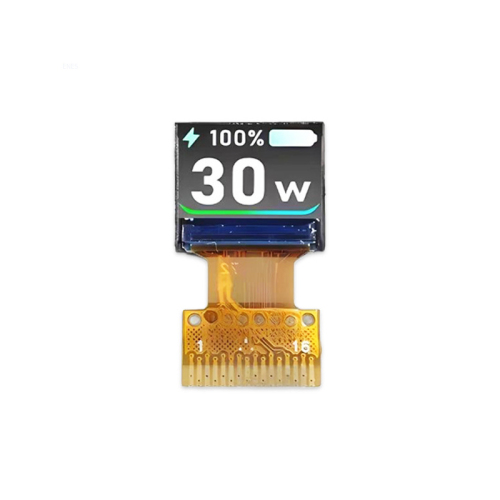

ESEN presents the 0.42'' Mini TFT Display (Model: T042B008) — an ultra-compact TFT LCD Screen engineered for space-critical applications. As one of the smallest color TFT displays on the market, it combines a 96x54 resolution, full IPS viewing angles, and the reliable ST7735P3 driver IC, all packed into a 12.32×12.09×1.5mm module. Originating from Shenzhen, China, this industrial-grade Small TFT LCD adheres to RoHS standards, making it suitable for global markets with strict environmental requirements.

Designed with a 4SPI interface and 16-pin soldering FPC, the display enables seamless integration into tiny devices while delivering stable data transmission. Its normally black display mode and 65% typical NTSC color gamut ensure clear, vibrant visuals, even in low-light conditions. Whether used in wearables, IoT sensors, or mini industrial controls, this display balances miniaturization, performance, and durability — a hallmark of ESEN’s product philosophy.

The 0.42'' Mini TFT Display meets industrial and consumer electronics standards, with detailed parameters tailored to small-form-factor needs:

Display & Optical Parameters

• Display Type: Industrial-grade TFT LCD (Thin-Film Transistor)
• Resolution: 96×RGB×54 pixels (total 96x54) — optimized for simple data visualization
• Display Mode: Normally Black — reduces power consumption in bright environments
• Viewing Direction: Full-angle (360° IPS) — no color distortion from any perspective
• Color Gamut (NTSC): 65% typical — delivers natural, vivid colors for small-screen content
• Backlight: 1 white LED — energy-efficient with long operational lifespan (50,000+ hours)

Physical & Mechanical Parameters

• Module Size: 12.32mm (W) × 12.09mm (H) × 1.5mm (D) — ultra-slim for tight installations
• Active Area: 9.216mm (W) × 5.184mm (H) — maximizes screen usage within mini dimensions
• FPC Design: 16-pin soldering FPC — secure connection for long-term use
• Mechanical Tolerances:
  • LCD cutting chipping: ≤ 1/3 of glass thickness (prevents edge damage)
  • Flat warpage: ≤ 0.35mm (ensures fit in rigid device housings)

Electrical & Environmental Parameters

• Driver IC: ST7735P3 — industry-standard chip for stable TFT control, compatible with most MCUs
• Interface Type: 4SPI (Serial Peripheral Interface) — low-pin-count, high-speed transmission
• Operating Temperature: -10℃ to +60℃ — reliable in mild extreme conditions (e.g., indoor industrial environments)
• Storage Temperature: -20℃ to +70℃ — safe storage without component degradation
• Compliance: RoHS directive — free from hazardous substances (Pb, Hg, Cd)

Choosing ESEN’s 0.42'' Mini TFT Display delivers tangible value for global buyers:

• Reduced Device Size & Cost

  The ultra-mini design lets you shrink your product’s overall size, eliminating the need for large enclosures. This reduces material costs and makes your product more competitive in markets where portability matters (e.g., wearables, IoT).

• Faster Time-to-Market

  Standardized 4SPI interface and pre-tested ST7735P3 driver cut R&D time. ESEN provides datasheets, pinout diagrams, and sample code, so your team can integrate the display in days instead of weeks. Sample orders (available with no minimum) let you validate designs quickly.

• Stable Supply & Scalability

  With a monthly supply capacity of 300K units, ESEN meets both small-batch (1000 PCS) and large-scale production needs. Direct partnerships with LCD glass and IC suppliers ensure no component shortages, even during global supply chain disruptions.

• Global Compliance & Risk Reduction

  RoHS compliance avoids regulatory fines and delays in key markets. Strict quality control (100% pre-shipment testing) ensures a defect rate below 0.1%, reducing returns and customer complaints. ESEN also provides batch test reports for audit purposes.

• Flexible Customization

  From touch panel integration to FPC length adjustments, customization options let you tailor the display to your exact needs. This eliminates the need to compromise on design or functionality, ensuring your product stands out.

The 0.42'' Mini TFT Display adheres to international standards, ensuring compatibility with global markets:

1. RoHS Compliance (EU Directive 2011/65/EU)

This certification restricts 10 hazardous substances (including lead, mercury, and cadmium) in electronic components. ESEN’s display is fully RoHS-compliant, making it eligible for sale in the European Union, United States, Japan, South Korea, and other regions with similar regulations. Each batch comes with a RoHS test report, simplifying customs clearance and product registration.

2. Industrial-Grade Quality Standards

While not a formal certification, the display meets ESEN’s internal industrial-grade criteria, including:

• Mechanical durability testing (vibration, shock resistance).
• Environmental stress testing (temperature cycling, humidity exposure).
• Optical performance testing (brightness uniformity, color accuracy).

These tests ensure the display performs reliably in harsh industrial and consumer environments.

3. Datasheet & Technical Documentation

ESEN provides a comprehensive datasheet for the T042B008 model, available for download here: TFT042B008.pdf. The datasheet includes detailed electrical diagrams, pin definitions, and performance curves — essential for engineering teams integrating the display into their products.

ESEN offers flexible customization to match your project’s unique needs — 95% of its TFT LCD Displays are tailored to customer requirements. For the 0.42'' Mini TFT Display, key options include:

• FPC Customization

  Adjust FPC length (standard: 20mm; custom: 5mm–30mm) to fit your PCB layout. Modify pin definitions (e.g., reassign CS or RESET pins) to avoid conflicts with other components. High-temperature FPC materials are available for applications exposed to 60℃+ environments.

• Touch Panel Integration

  Add a touch panel for interactive functionality:

  • CTP (Capacitive Touch Panel): G+F structure (thin, cost-effective) or G+G (durable, scratch-resistant) — supports 1-point touch for small screens.
  • RTP (Resistive Touch Panel): 4-wire design — ideal for gloves or wet environments (e.g., medical devices).
• Backlight & Brightness Adjustment

  Customize the 1-LED backlight to suit your environment:

  • Low-brightness (150cd/m2): Reduces power consumption for battery-powered wearables.
  • High-brightness (300cd/m2): Enhances readability for outdoor-facing devices (e.g., portable sensors).
  • Backlight color: Warm white (3000K) for consumer products or cool white (6500K) for industrial use.
• Surface Treatment

  Apply coatings to improve usability:

  • AG (Anti-Glare): Reduces reflections in bright indoor environments (e.g., office IoT devices).
  • AF (Anti-Fingerprint): Repels smudges for touch-enabled wearables or medical devices.
• OEM/ODM Services

  Full ODM support for end-to-end product development: ESEN’s R&D team can design custom display modules (including PCB integration) to match your device’s form factor and functionality. Logo printing on the display module or packaging is also available for branding.

To request a customization quote, provide your requirements (e.g., FPC length, touch type, quantity) via ESEN’s official contact channels. A technical assessment and cost estimate will be provided within 3 business days.
