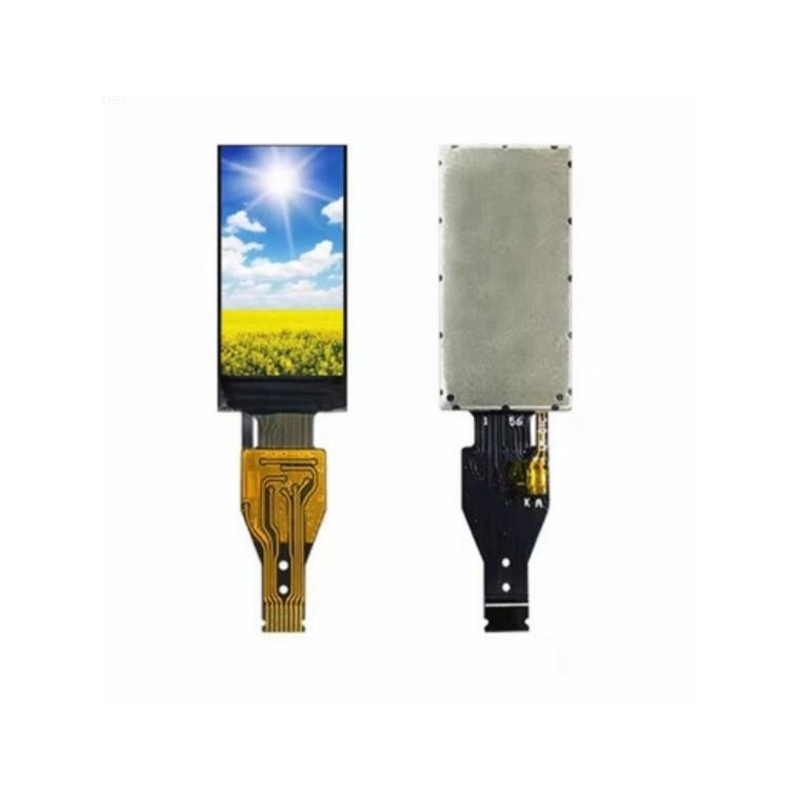

ESEN introduces the 0.96 Inch Mini TFT Display (Model: T096C08) — a compact, high-performance TFT LCD screen designed for space-constrained applications. Combining IPS technology, ST7735S driver IC, and SPI interface, it delivers exceptional clarity and stable transmission, ideal for global buyers seeking quality in small-form-factor displays.

Measuring 13.5mm (W) × 27.95mm (H) × 1.5mm (D), this small TFT LCD excels in environments like in-car dashboards and wearables. With 80×160 resolution, 400cd/m2 brightness, and IPS technology (360° viewing angles), it outperforms traditional TN displays. Backed by ISO 9001 certification, it operates reliably in -20℃ to 70℃ conditions.

The 0.96 Inch Mini TFT Display (T096C08) meets strict technical standards for industrial, automotive, and consumer electronics. Key specifications:

Display & Physical Parameters

• Display Size: 0.96 inches (diagonal) — ideal for compact integration
• Resolution: 80(H)RGB × 160(V) pixels — balances clarity and power
• Dot Pitch: 0.135mm (H) × 0.1356mm (V) — sharp text and graphics
• Active Area: 10.8mm (H) × 21.7mm (V) — efficient screen usage
• Module Dimensions: 13.5mm × 27.95mm × 1.5mm (max) — ultra-slim profile
• Display Technology: IPS — eliminates color shift at off-center angles

Driver & Interface Parameters

• Driver IC: ST7735S — industry-proven, compatible with Arduino, Raspberry Pi
• Interface Type: SPI — low-pin-count (8-pin FPC), high-speed transmission
• Pin Functionality:
  • 1 (LEDA): LED Anode (backlight power)
  • 2 (GND): Power Ground
  • 3 (RESET): Active-low reset signal
  • 4 (RS): Data/command selection
  • 5 (SDA): SPI input/output pin
  • 6 (SCL): SPI serial clock
  • 7 (VDD): Analog power supply
  • 8 (CS): Chip selection (low enable)

Optical & Environmental Parameters

• Luminance: 400cd/m2 (typical) — readable in indoor/outdoor environments
• Operating Temperature: -20℃ to +70℃ — stable in extreme conditions
• Storage Temperature: -30℃ to +80℃ — safe storage without degradation

Electrical Parameters

• Supply Voltage: 2.5V (min) to 3.3V (max, typical 2.8V) — low power
• LED Backlight Voltage: 2.9V (min) to 3.1V (max, typical 3.0V)
• Logic Input Voltage: -0.3V to VDD+0.3V — compatible with standard circuits

ESEN’s 0.96 Inch Mini TFT Display stands out with technical innovations, durability, and customer-centric design. Key features:

1. IPS Full-Viewing-Angle Technology

Unlike traditional TN displays, IPS technology aligns liquid crystals parallel to the panel, enabling uniform light transmission from all angles. Users enjoy clear visibility from 0° to 360°, eliminating the need to adjust viewing position — critical for multi-user or dynamic applications.

2. ST7735S Driver IC for Stable Performance

The ST7735S IC offers stability and efficiency, supporting low-power modes (ideal for wearables/IoT) and reducing signal interference. ESEN uses original chips and tests each for compatibility, backed by a 12-month warranty for non-artificial defects.

3. SPI Interface: Easy Integration

The 8-pin SPI interface minimizes connections, saving PCB space — essential for compact devices. It enables high-speed transfer (up to 10MHz) with lower power than parallel interfaces. ESEN provides sample code and pinout diagrams, reducing R&D time.

4. Ultra-Mini Size + 400cd/m2 Brightness

At 1.5mm thick, it fits smallest housings, while 400cd/m2 brightness ensures visibility in bright environments. ESEN tests for uniform brightness across the active area, ensuring consistent readability for critical data.

5. Rigorous Quality Control

Every display undergoes 100% pre-shipment testing:

• Functional testing: SPI communication, backlight, pixel integrity
• Environmental testing: Temperature cycling and humidity resistance
• Mechanical testing: FPC flexibility (10,000+ cycles)

This ensures <0.1% defect rate, reducing downtime and replacement costs.

The 0.96 Inch Mini TFT Display meets global quality, environmental, and safety standards:

1. ISO 9001:2015 (Quality Management)

Validates rigorous quality control from raw materials to final testing:

• 100% inspection of LCD glass and ST7735S ICs
• Functional checks at every production stage
• Random sampling for brightness, viewing angle, temperature resistance

2. ISO 14001:2015 (Environmental Management)

Eco-friendly practices reduce environmental impact:

• 90% recycling of production waste
• 15% reduction in factory energy consumption
• RoHS compliance (no hazardous substances)

3. RoHS 2.0 Compliance

Meets EU Directive 2011/65/EU, restricting 10 hazardous substances. Mandatory for EU markets and accepted globally. Batch-specific certificates simplify customs and registration.

ESEN offers tailored options for the 0.96 Inch Mini TFT Display (95% of products are custom-made):

• FPC & Pin Customization

  Adjust FPC length (5mm–50mm) or pin definition to match PCB layout. Reassign CS, RS, or RESET pins to avoid conflicts. High-temperature FPC available for harsh environments.

• Touch Panel Integration

  Add CTP or RTP for interactive applications:

  • CTP: G+G or G+F structures, 2-point multi-touch, 100,000+ touches
  • RTP: 4-wire/5-wire designs, glove-friendly operation
• Brightness & Backlight Customization

  Modify brightness for specific needs:

  • Low-brightness: 200cd/m2 (25% power reduction)
  • High-brightness: 600cd/m2 (outdoor applications)
  • Custom backlight color: white, warm white (3000K), cool white (6500K)
• Surface Treatment

  Specialized coatings improve usability:

  • AR: Reduces glare by 80% (outdoor use)
  • AG: Diffuses light (in-car displays)
  • AF: Repels oil/smudges (touch-enabled devices)
• Control Board Integration

  Turnkey solutions with HDMI/USB control boards or MCU-equipped PCBs (Arduino/ESP32) reduce BOM costs by up to 15%.

• Packaging Customization

  Beyond standard packaging:

  • Blister trays for automated assembly
  • Branded packaging with company logo
  • Moisture barrier bags for humid storage

?

Mark Wilson, Engineering Director at AutoTech Solutions

“ESEN’s 0.96 Inch display is perfect for our in-car backup kits. IPS viewing angle lets customers see clearly from any seat — a big improvement over our previous TN display. SPI integration was easy with their sample code. 50,000 units ordered, zero defects. 8–12 day lead time keeps production on track.”

Sarah Lee, Product Manager at HealthWear Tech

“As a startup, ESEN’s no-MOQ samples (delivered in 7 days) were crucial for our pitch. Custom FPC length fit our slim design, and low power extended battery life to 10 days — a key investor selling point. Now in mass production, their 300K/month capacity meets demand. Great technical support fixed SPI issues quickly.”

Thomas Müller, Procurement Manager at Industrial Controls GmbH

“We use these displays in factory sensor panels. -20℃ to 70℃ range handles our environment, 400cd/m2 cuts workshop glare. ESEN’s quality control includes detailed batch reports — essential for our ISO 9001 certification. AG coating customization is popular with our technicians. Reliable supply even during chip shortages.”
