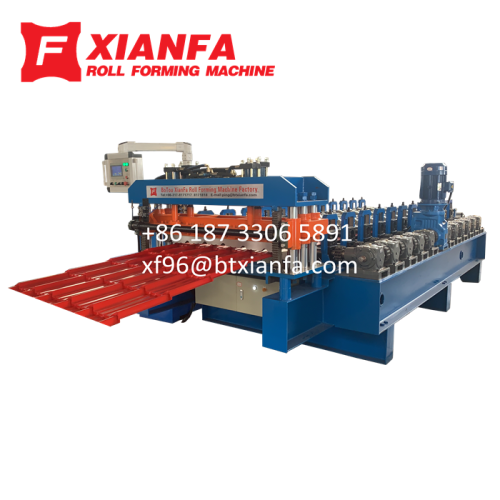

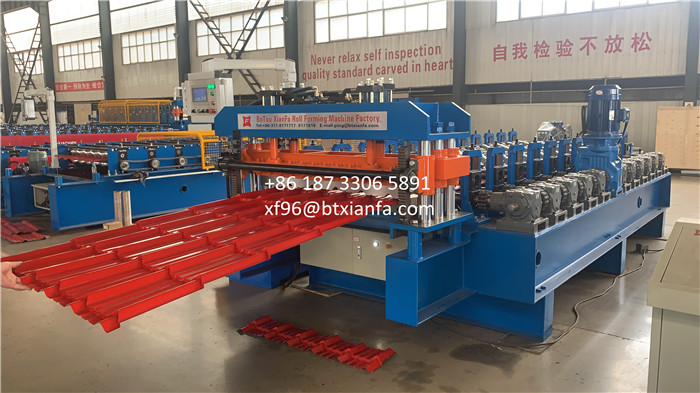

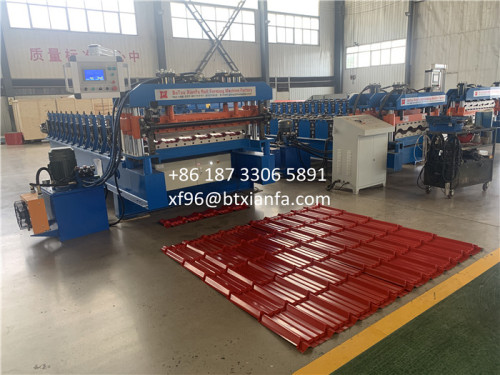

1000 Step Tile Roof Machine for Nigeria. The driven system of Step Tile Roll Forming Machine is gearbox. This Roof Roll Forming Machine also named step tile machine. Step Classic Forming Machine with high speed, up to 6-8m/min. And stations of Step Tile Forming Machine is 12.  Roll Forming Machine with touch screen， Delta PLC. So the client will easily to operate. If add a Hydraulic Car Coil Holder, the production line will be perfect.

Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity:5 Tons.  Inner diameter: 470-530 mm

Roller

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also

can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic and Control Systems

Hydraulic oil: 46#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted.

Computed mode has two modes: automatic and manual one. The system is easy to operate and use

Delta PLC and Touch Screen

Press Form

Material of blades: Cr12,quenching treatment

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

Step Tile Roofing Machine Packaging & Shipping

1.We have professional technicians for loading

  Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you
