The Roofing Sheet Machine is a specialized equipment used for the construction industry, specifically for producing step roofs. It offers several applications and functions that are suitable for the Dominican market:

1. Roofing Industry: The Metal Roof Machine is primarily used in the roofing industry for manufacturing step roofs. Step roofs are commonly found in residential and commercial buildings, providing an aesthetically pleasing design while efficiently draining rainwater. This machine enables the production of step roofs with precision, speed, and consistency.

2. Construction Projects: The Step Roof Machine plays a vital role in various construction projects, including new construction and renovation. It allows contractors to produce step roofs onsite, eliminating the need for outsourcing or manual fabrication. This leads to improved efficiency, reduced costs, and greater control over the project timeline.

3. Customization: With the Step Tile Forming Machine, it is possible to customize step roofs according to specific requirements. This includes adjusting the dimensions, angles, and patterns of the steps to suit different architectural designs. This flexibility ensures that the step roofs produced meet the unique demands of each construction project.

4. Productivity and Efficiency: The machine automates the process of step roof production, resulting in enhanced productivity and efficiency. It can efficiently cut and shape metal sheets, reducing manual labor and minimizing material wastage. Additionally, the machine's rapid operation allows for faster completion of projects compared to traditional manual methods.

5. Quality and Accuracy: The Spanish Tile Forming Machine ensures consistent quality and accuracy in the production of step roofs. It utilizes advanced technology and precise measurements to create precise step patterns and angles. This results in structurally sound and visually appealing step roofs that comply with industry standards.

Overall, the step roof machine offers a range of applications and functions that cater to the needs of the Dominican market. It improves efficiency, customization capabilities, and overall quality in step roof production for the roofing and construction industries.

Industrial Process And Component Specification

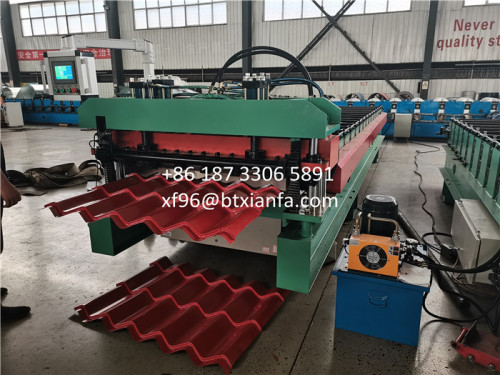

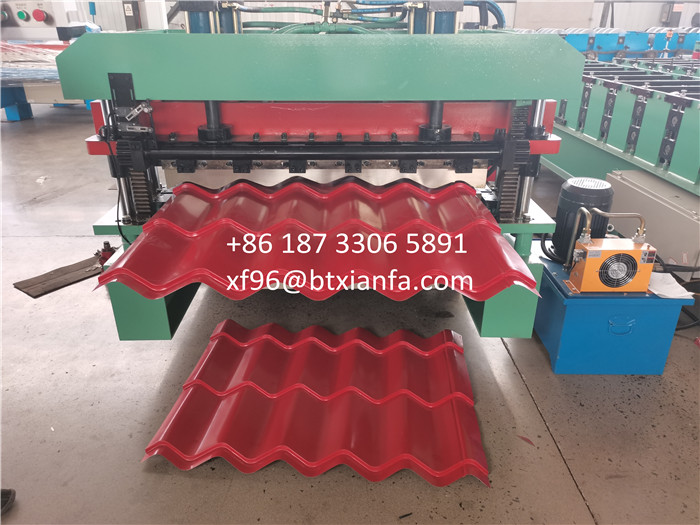

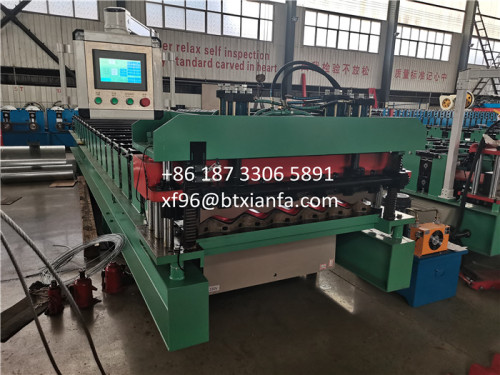

Step Tile Roll Forming Machine

Component Specification

1. Manual Uncoiler:

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity: 5T

Inner diameter: 500-508mm

2. Feeding Table:

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3. Main Roll Forming Machine:

Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding. Plate surface smooth and not easy to be marked when it is being stamped

4. Hydraulic System:

Hydraulic oil:46#.

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

5. Shearing Mechanism: It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.

6. Computer Control Cabinet: The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Plc: EURA

Packaging & Shipping

1. We have professional technicians for loading

Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold

Our Services

1. Warranty

One year,and we will provide technical support for wholelife of the equipment.

2. Installation And Charge

Purchaser pays all charges during period of install to overseas,

(include charges of food,lodging and round trip air tickets ,etc.)

Moreover,pay subsidy 60USD/day until Installation finished.
