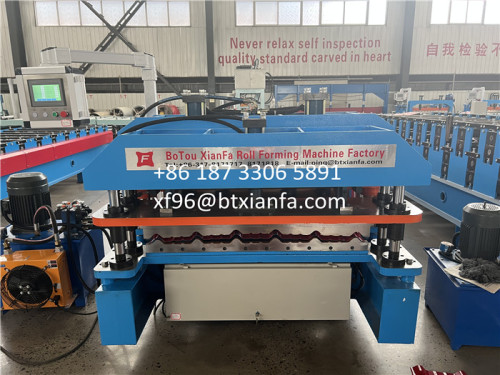

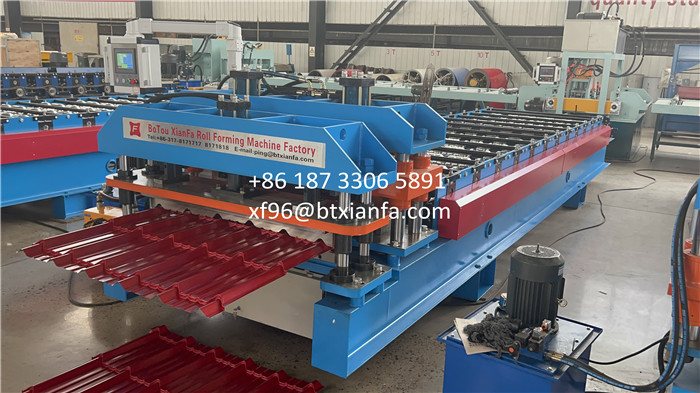

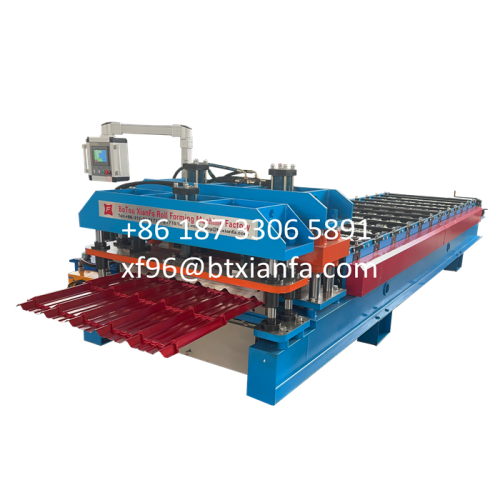

Roof Sheet Forming Machine for Chile. The power of Roofing Sheet Machine is 5.5+5.5 Kw. The speed of Roofing Roll Forming Machine is 4m/min. The width of Sheet Metal Roll Forming Machines could 1000mm and 1219mm. If you need Roll Forming Machine Series, such as Roof Sheet Forming Machine,  IBR Roll Forming Machine,pls provide the drawing and thickness. Then detailed quotation will share with you.

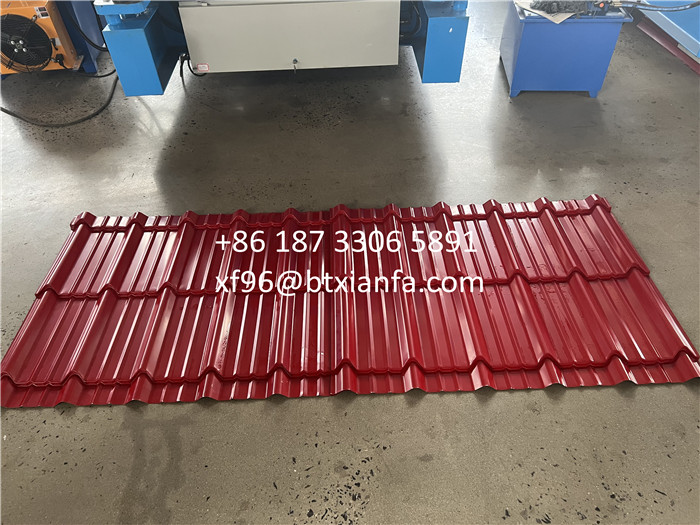

Glazed Tile Machine Quick Detail

1.Suitable to process: Color steel plate

2.Width of the raw material: 1000/1219 mm

3.Rollers:12 rows

4.Dimensions: 8.6*1.55*1.91 m

5.Power: 5.5+5.5 kw

6.Thickness of the plate:0.3-0.6 mm

7.Diameter of the roller:Φ70 mm

8.Weight: About 4.2 Tons

9.Voltage: 380 V 50 Hz 3 phases

10.Hydraulic: 40#

11.Processing precision: Within 1.00 mm

12.Control system: PLC control

Glazed Tile Machine Equipment including components

Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity:5 Tons.  Inner diameter: 470-530 mm

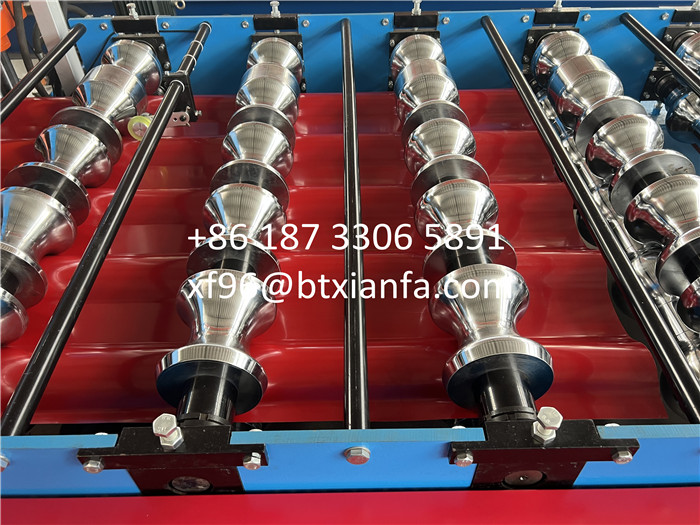

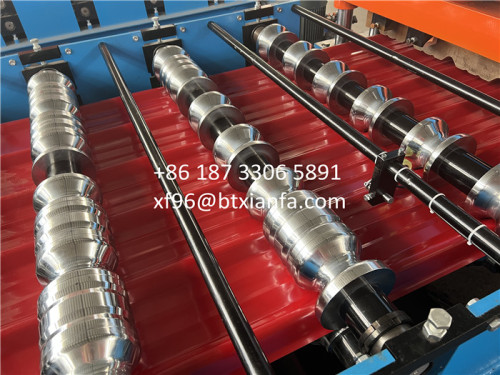

Roller

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also

can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic and Control Systems

Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted.

Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC: EURA(Can customize as customer require)

Press Form

Material of blades: Cr12,quenching treatment

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

Glazed Tile Machine Packaging & Shipping

1.We have professional technicians for loading

  Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 40 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you

Glazed Tile Machine Payment method

Method 1:30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Method 2:L/C is also acceptable.

Installation, Commissioning, Test and Training

1. The engineers from the Seller shall supervise the installation on site and fulfill the commissioning.

They should start off within 10 days after they get the information from the Buyer.

2. The Buyer shall pay for the international air tickets and the local, such as board and lodging, daily transportation, communication,Insurance,

etc. The Buyer shall pay USD 100 /day /person to the Seller for the commissioning.

3. The Buyer shall prepare an interpreter for better communication between the two sides.
