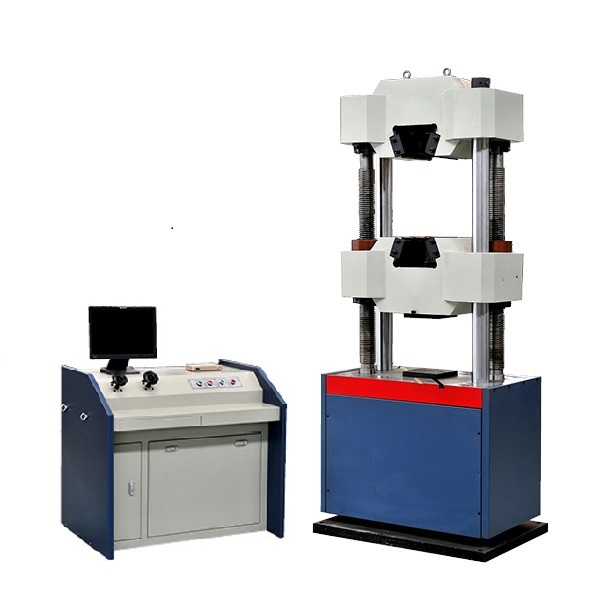

100KN Computer Display Hydraulic Universal Testing Machine
Basic Info
| Model No. | WEW-100B |
|---|---|
| Brand Name | Chenda |
| Type | Universal Testing Machine |
| Maxcapacity | <1000KN |
| Accuracy Grade | 1 |
| Load Way | Mechanical Load |
| Loading Method | Static Load |
Product description
WEW Series machine is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameters like loading force, stroke, etc. this machine is adopting manual control mode and computer collecting and displaying methods to process the testing machine parameter. The software based on windows system is able to make automatic calculating of test result, i.e. tensile strength, up/low yield strength, non proportional stress point etc. report creation function makes it is very simple to make testing report in needed format. This machine is widely used in different areas and facilities.
1> Full computer displayed of testing process
2> Manual loading speed will meet your appropriate testing speed.
3> Adopt manual/oil hydraulic automatic clamps which can be operated from separated control box.
4> Timely control software will provide accurate record of testing process
5> Report guide will create your testing report very simply
6> Overload protection will secure operators.
Frame: 2 columns and 2 screws
|
No. |
Technical |
Specification |
|
1 |
Max test force kN |
100 |
|
2 |
relative error of test force |
≤±1% |
|
3 |
Measurement range of test force |
2%~100% |
|
4 |
Clamping ways |
Hydraulic clamping |
|
5 |
Round specimen fixture mm |
Φ4~Φ20 |
|
6 |
Flat specimen fixture mm |
0-15 |
|
7 |
The width of flat specimen mm |
80 |
|
8 |
Max. Tensile test space mm |
550 |
|
9 |
Max. Compression test space mm |
500 |
|
10 |
Control cabinet packing Dimensions mm |
1180*620*850 |
|
11 |
Host packing Dimension mm |
720*580*1860 |
|
13 |
Host net weight kg |
1072 |
|
13 |
Cabinet net weigth |
300 |
|
14 |
Column clearance (mm) |
450 |
|
15 |
Upper and lower platens size mm |
Φ140 |
|
16 |
Maximum piston stroke mm |
200 |
|
17 |
Piston movement speed mm/min |
60 |
Standard delivery:
|
No. |
Name |
Specification |
quantity |
Remark |
|
1 |
Host |
|
1set |
Chenda |
|
2 |
Control Cabinet |
|
1set |
Chenda |
|
3 |
Measurement system |
|
1set |
Chenda |
|
4 |
Oil pressure transducer |
|
1Set |
Jiangsu |
|
5 |
Optical encoder |
|
1set |
Jinan |
|
6 |
Computer |
|
1set |
Lenovo |
|
7 |
Printer |
|
1set |
HP |
|
8 |
Round specimen specification mm |
Φ4~Φ10,Φ10~Φ20, |
Each of the specification 1 |
|
|
9 |
Flat specimen specification mm |
0-15 |
Each of the specification 1 |
|
|
10 |
Compression fixture mm |
|
1set |
Chenda |
|
11 |
Bending fixture |
|
1set |
Chenda |
|
12 |
Pump |
|
|
|
|
13 |
Motor |
|
|
|
|
14 |
Accompany documents |
User manual, packing list Certificate |
|
|
Detail photo:

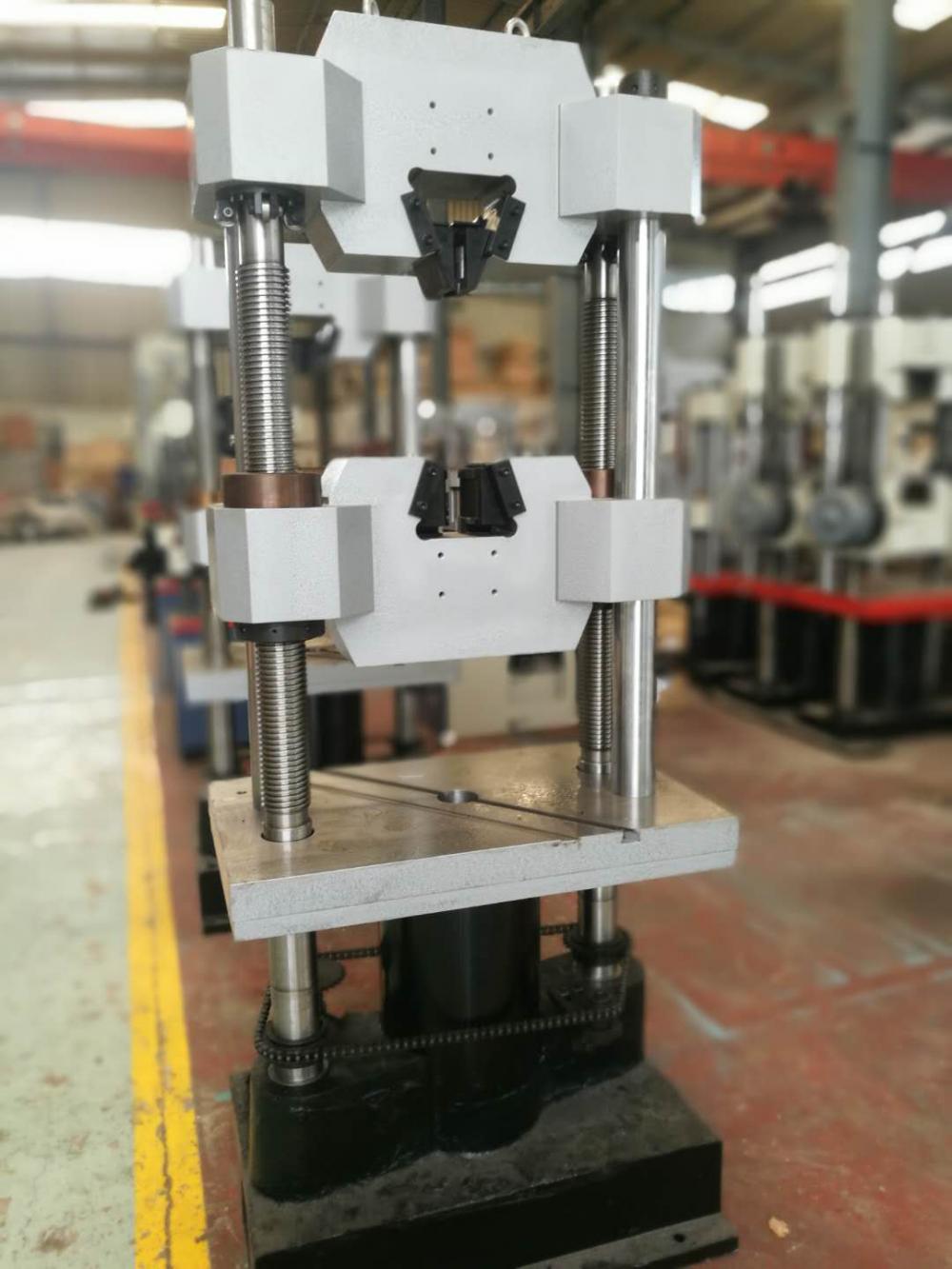

Host Photo:

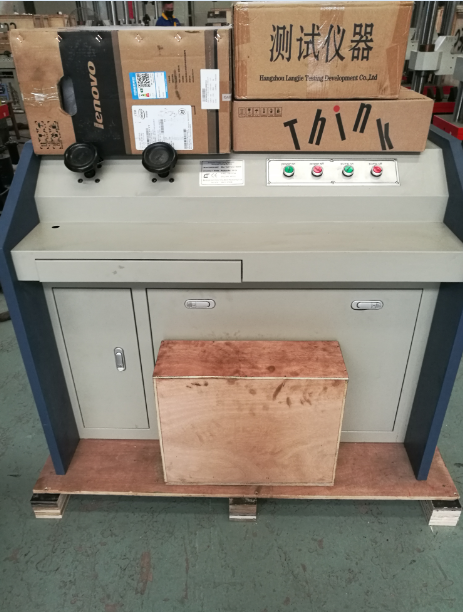

Cabinet photo:
Working Shop:
