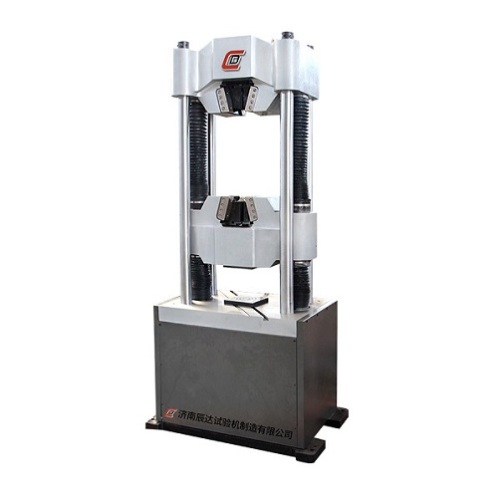

Computer Display 4 Columns Testing Machine WEW-1000D

1 / 4

Computer Display 4 Columns Testing Machine WEW-1000D

Get Latest Price

You might also like

Universal Testing Machine Specification

1 Set/Sets (MOQ)

WEW-600B Metal Material Testing Machine

1 Set/Sets (MOQ)

WEW-600B UTM Machine 600KN

1 Set/Sets (MOQ)

WEW-300B Universal Testing Machine

1 Set/Sets (MOQ)

WEW-600B Tensile Strength Measuring Instrument

1 Set/Sets (MOQ)

WEW-300B Tensile Strength Test Equipment

1 Set/Sets (MOQ)

100KN Computer Display Hydraulic Universal Testing Machine

1 Set/Sets (MOQ)

WEW-1000D PC Display Hydraulic Universal Testing Machine

1 Set/Sets (MOQ)

Computer Display 4 Columns Testing Machine WEW-1000D

1 Set/Sets (MOQ)

Computer Display Hydraulic Universal Testing Machine 1000KN

1 Set/Sets (MOQ)

Basic Info

Model No.	WEW-1000D
Brand Name	Chenda
Type	Universal Testing Machine
Maxcapacity	>1000KN
Accuracy Grade	1
Load Way	Mechanical Load
Loading Method	Static Load
Display	Digital
Control	Manual Control
Weight	>2000Kg
Power Source	AC380V
Oil Cylinder Position	Under
Cabinet Size	85012001400mm
Frame Size	80010002200mm

Product description

Standard Delivery:

No.	Product name	Specification	Quantity
1	Frame		1
2	Servo control cabinet
3	Measurement system		1
4	Oil pressure transducer		1
5	Optical encoder		1
6	Computer		1
7	Printer		1
8	Round specimen specification mm	Φ13~Φ26 Φ26~Φ40 Φ40~Φ60	Each for one
9	Flat specimen specification mm	0-20 20-40	Each for one
10	Compression platen mm	200x200mm	1 set
11	Bending fixture		1 set
12	Accompany tools		1 set
13	Accompany document		1 set
14	Cover		1 set

Features:

WEW Series machine is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameters like loading force, stroke, etc. this machine is adopting manual control mode and computer collecting and displaying methods to process the testing machine parameter. The software based on windows system is able to make automatic calculating of test result, i.e. tensile strength, up/low yield strength, non proportional stress point etc. report creation function makes it is very simple to make testing report in needed format. This machine is widely used in different areas and facilities.

1> Full computer displayed of testing process
2> Manual loading speed will meet your appropriate testing speed.
3> Adopt manual/oil hydraulic automatic clamps which can be operated from separated control box.
4> Timely control software will provide accurate record of testing process
5> Report guide will create your testing report very simply

6> Overload protection will secure operators.

Frame: 4 columns and 2 screws

Technical Specification:

Specification	WEW-1000D
Max. capacity (KN)	1000
Measuring range	2%-100%
Relative error of reading	≤±1%
Clamping method	Hydraulic clamping
Round specimen clamping range(mm):	Φ13~Φ60
Flat specimen clamping thickness(mm):	0-40
Flat specimen clamping width(mm):	80
Max. tension test space (mm)	590
Max. compression test space (mm)	500
Cabinet packing dimension(mm)	85012001400
Frame packing dimension(mm)	80010002200
Weight	Approx. 4000kgs
Column net distance (mm)	580
Power supply (KW)	220V 60HZ
Motor power (kw)	2.5
Safety devices	Software and machinery protection
Span of bending roller (mm)	500
Width of bending roller (mm)	140
Diameter of bending roller (mm)	Φ40
Compression platen size (mm)	204x204mm
Max. piston stroke (mm)	250
Piston max. speed (mm/min)	Approx.60
