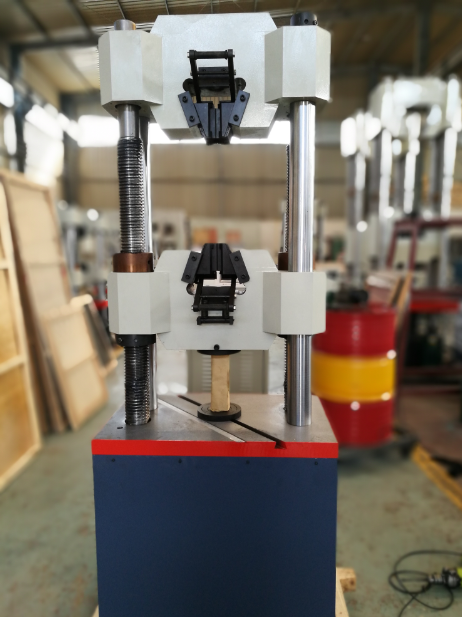

WEW-600B Metal Material Testing Machine
Basic Info
| Model No. | WEW-600B |
|---|---|
| Brand Name | Chenda |
| Type | Universal Testing Machine |
| Maxcapacity | <1000KN |
| Accuracy Grade | 1 |
| Load Way | Mechanical Load |
| Loading Method | Static Load |
Product description
WEW Series machine is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameters like loading force, stroke, etc. this machine is adopting manual control mode and computer collecting and displaying methods to process the testing machine parameter. The software based on windows system is able to make automatic calculating of test result, i.e. tensile strength, up/low yield strength, non proportional stress point etc. report creation function makes it is very simple to make testing report in needed format. This machine is widely used in different areas and facilities.
1> Full computer displayed of testing process
2> Manual loading speed will meet your appropriate testing speed.
3> Adopt manual/oil hydraulic automatic clamps which can be operated from separated control box.
4> Timely control software will provide accurate record of testing process
5> Report guide will create your testing report very simply
6> Overload protection will secure operators.
Frame: 2 columns and 2 screws
Technical Specification:
No.
Technical
Specification
1
Max
test force kN
600
2
relative
error of test force
≤±1%
3
Measurement
range of test force
2%~100%
4
Clamping
ways
Hydraulic
clamping
5
Round specimen
fixture mm
Φ13~Φ40
6
Flat specimen fixture mm
15~30
7
The width of flat
specimen mm
80
8
Max.
Tensile test space mm
600
9
Max.
Compression test space mm
500
10
Control
cabinet packing Dimensions mm
1200*800*1400
11
Host
packing Dimension mm
750*630*2170
12
Motor
Power kW
2.1
13
Host
weight kg
2000
14
Column
clearance (mm)
450
15
Upper
and lower platens size mm
Φ140
16
Maximum
piston stroke mm
200
17
Piston
movement speed mm/min
60
Standard delivery:
No.
Name
Specification
quantity
Remark
1
Host
1set
Chenda
2
Control Cabinet
1set
Chenda
3
Measurement system
1set
Chenda
4
Oil pressure transducer
1Set
Jiangsu
5
Optical encoder
1set
Jinan
6
Computer
1set
Lenovo
7
Printer
1set
HP
8
Round
specimen specification mm
Φ13~Φ26,Φ26~Φ40,
Each
of the specification 1
Standard delivery is 3 sets
tensile fixtures. The client's can choice according to your requirement
9
Flat
specimen specification mm
15~30
Each
of the specification 1
10
Compression
fixture mm
1set
Chenda
11
Bending
fixture
1set
Chenda
12
Pump
13
Motor
14
Accompany
documents
User manual, packing list
Certificate

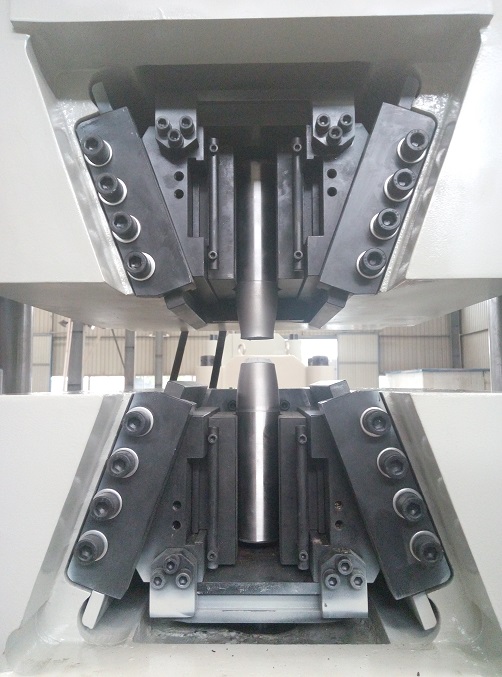

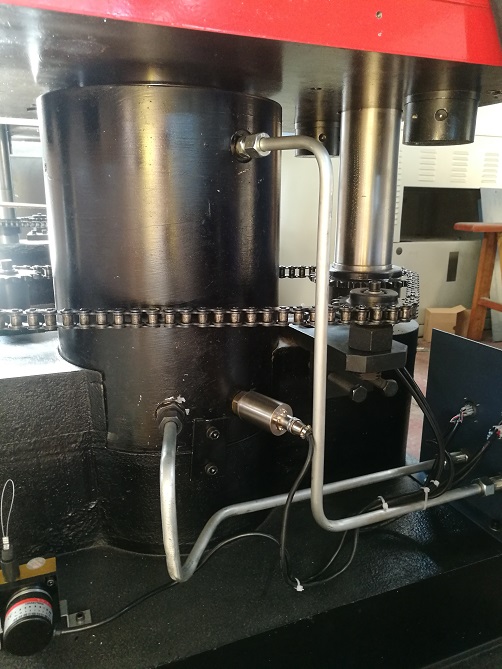

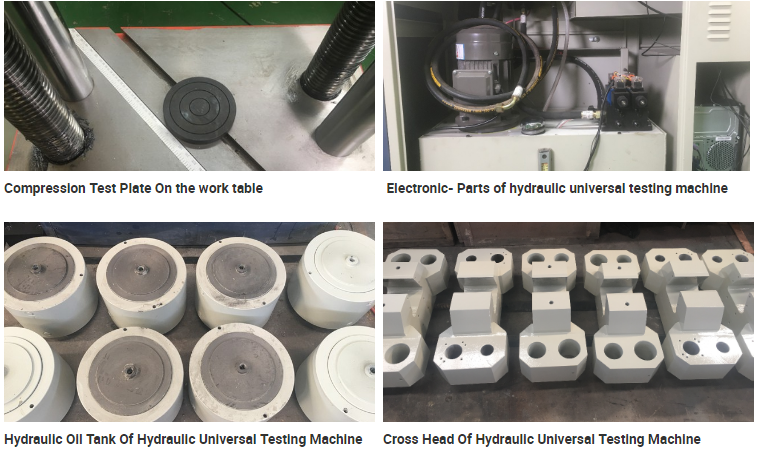

Detail photo:

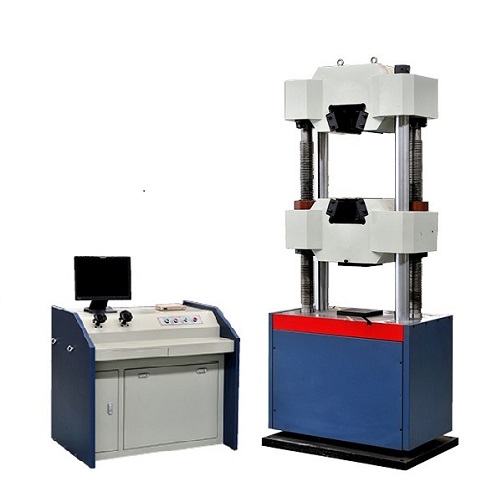

Host Photo:
Cabinet photo:
Working Shop:
Company :
- 11yrs
- Manufacturer
- Trade Company
- OEM service
