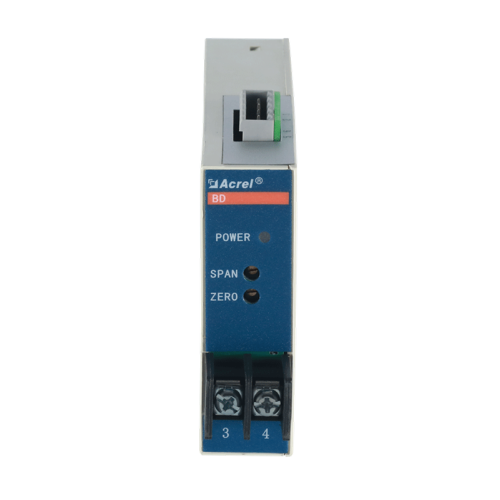

2 Wire current transmitter for motor

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.

Features

Isolation withstand Voltage:The input and output withstand voltagecan reach 2000V

Strong Anti-interference:Full analog circuit mode is adopted.Effectively suppress the interference in the line.

Load bearing capacity:High input impedance,Load resistance range>300Ω

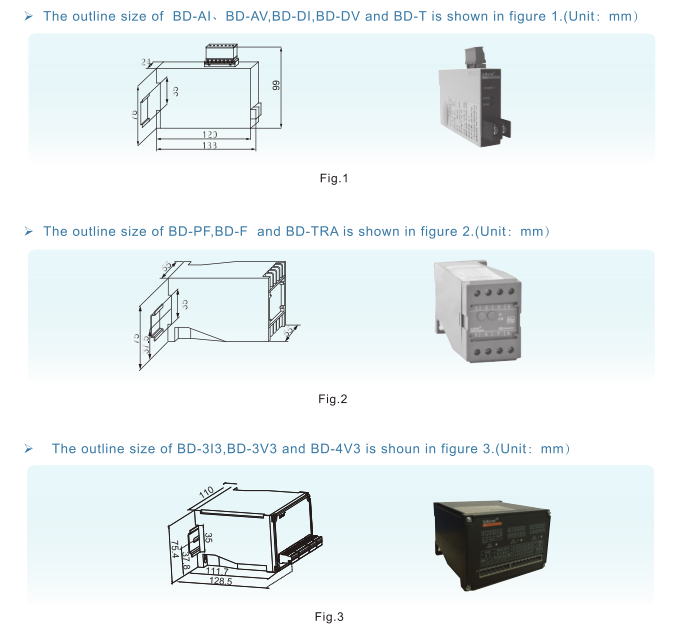

Dimension

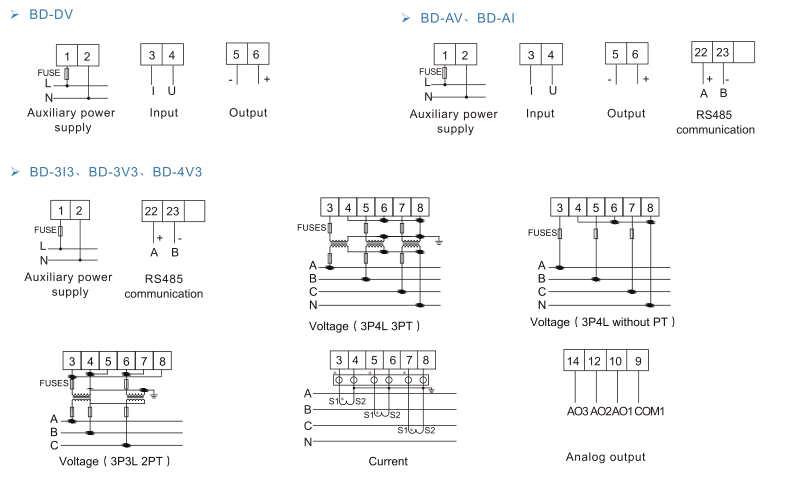

Wiring

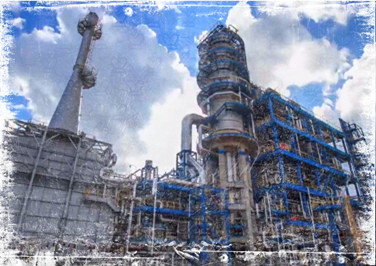

Application

MINIMUM PACKAGE
MINIMUM PACKAGE	Package dimensions(1 PC) 17*15.5*12.5cm		Package Weight(1 PC) 0.25Kg
WHOLE BOX PACKAGE	Package dimensions(10 PCS) 45.5*26*19.5		Package Weight(36 PCS) 3.5kG
PRODUCT HS CODE	9030339000
