AC power and panel mounted meter with modbus

Video

1 / 5

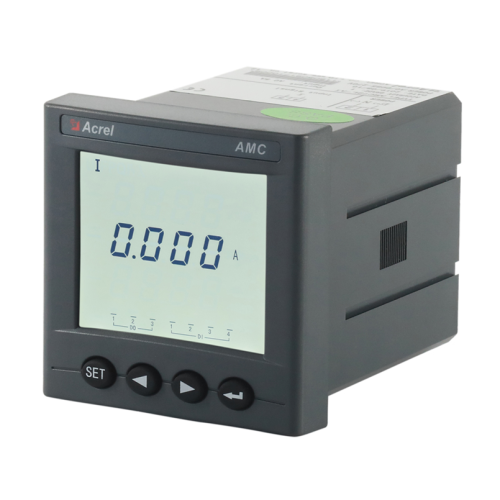

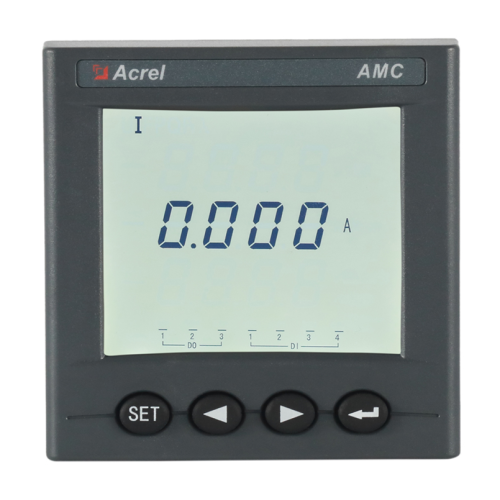

AC power and panel mounted meter with modbus

$37.14

≥1 Set/Sets

Options:

AMC72-AI
AMC72L-AI
AMC72-AI3
AMC72L-AI3
AMC48-AI
AMC48L-AI

Get Latest Price

You might also like

progammable ac volt single phase panel energy meter

1 Set/Sets (MOQ)

AMC72 secure kwh panel mount energy meter

1 Set/Sets (MOQ)

AC power and panel mounted meter with modbus

1 Set/Sets (MOQ)

Monitoring device energy meter for panel mounted

1 Set/Sets (MOQ)

Monitoring secure kwh energy panel meters

1 Set/Sets (MOQ)

Power monitoring energy meters panel board

1 Set/Sets (MOQ)

AMC series panel mounted energy meters

1 Set/Sets (MOQ)

Acrel price ac panel energy meter

1 Set/Sets (MOQ)

Power monitor module ac meter panel from Acrel

1 Set/Sets (MOQ)

Smart analyzer panel mount power quality meter

1 Set/Sets (MOQ)

Basic Info

Model No.	AMC72L-AI
Brand Name	Acrel
place of origin	China
Display method	Analog And Digital
Phase	Single Phase
Place Of Origin	Jiangsu, China
Brand Name	Acrel
Communication	Rs485 Port Modbus-Rtu Protocol
Standard	Iec62052-11/Iec62053-21
Frequency	45hz-65hz
Output Voltage	100v/230v380v
Display Type	Lcd&Led
Range	0-999999.9kwh
Model Number	Amc72l-Ai
Product Name	Acrel Price Ac Panel Energy Meter

Product description

AC power and panel mounted meter with modbus

This series of AC power and panel mounted meter with modbus adopts AC sampling technology, ac panel energy square meter can separately measure the current, voltage, power, power factor and electric energy in the power grid. The magnification can be set through the panel membrane switch. With RS-485 communication interface, using Modbus protocol; ac power panel meter digital can also convert the power signal into a standard DC analog signal output; or with switch input/output, relay alarm output and other functions。

Specification

Technical parameter	Value
Input	ACvoltage: AC100V, 220V, 380V; AC current: AC1A, 5A
Over load	Voltage: 1.2 times continuous, 2 times continuous 1 second; Current: 1.2 times continuous, 10 times continuous 1 second
Frequency	45~65Hz
Power consumption	Power consumption of each voltage, current Input circuit is less than 0.5VA
Accuracy class	Frequency 0.05Hz,other 0.5 class

Dimensions

AMC72 Panel Size

AMC96 Panel Size

AMC72 Cut Out

AMC96 Cut Out

Packing & Delivery

Company Profile

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Warmly welcome you to visit and investigate our factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
