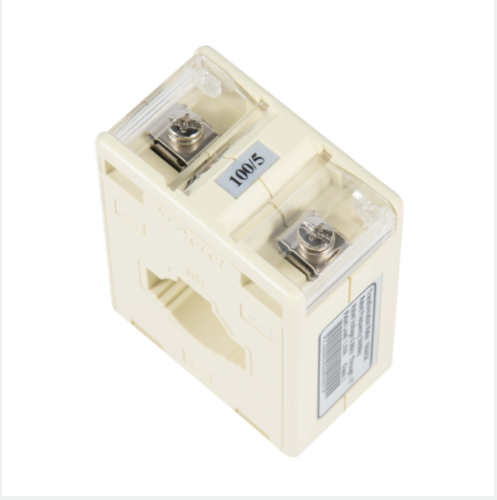

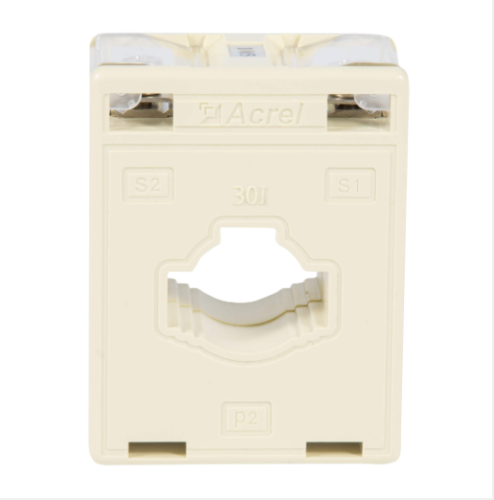

AKH 400A CT split core type transformer
$7.00
≥1 Piece/Pieces
Options:
- AKH-0.66 I
Basic Info
| Model No. | AKH-0.66 I |
|---|---|
| Brand Name | Acrel |
| place of origin | China |
| principle | Current Sensor, Hall Sensor |
| Output | Analog Sensor, Digital Sensor |
| technology | Hall Effect |
| Usage | Current |
Product description
General
Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.
Characteristics
|
 |
 |
|
● Security factor: FS＜5 ● Maximum system voltage: 720V AC ●Test voltage: 3kV AC(1min) ●Standards:IEC/EN61869-1, IEC/EN61869-2 |
● Rated frequency: 50/60Hz ● Rated short-time thermal current: Ith=40~60In ● Rated dynamic current: Idyn=2.5Ith ● Rated secondary current: X/5A (X/1A upon request) ● Rated primary current: Ranging up to 3000A |
● Continuous overload: 120%In ● Protection level: IP30 ● Casing: Non-flammable, polycarbonate self-extinguishing ABS ● Environment:
Operating temperature: -25℃-+50℃ |

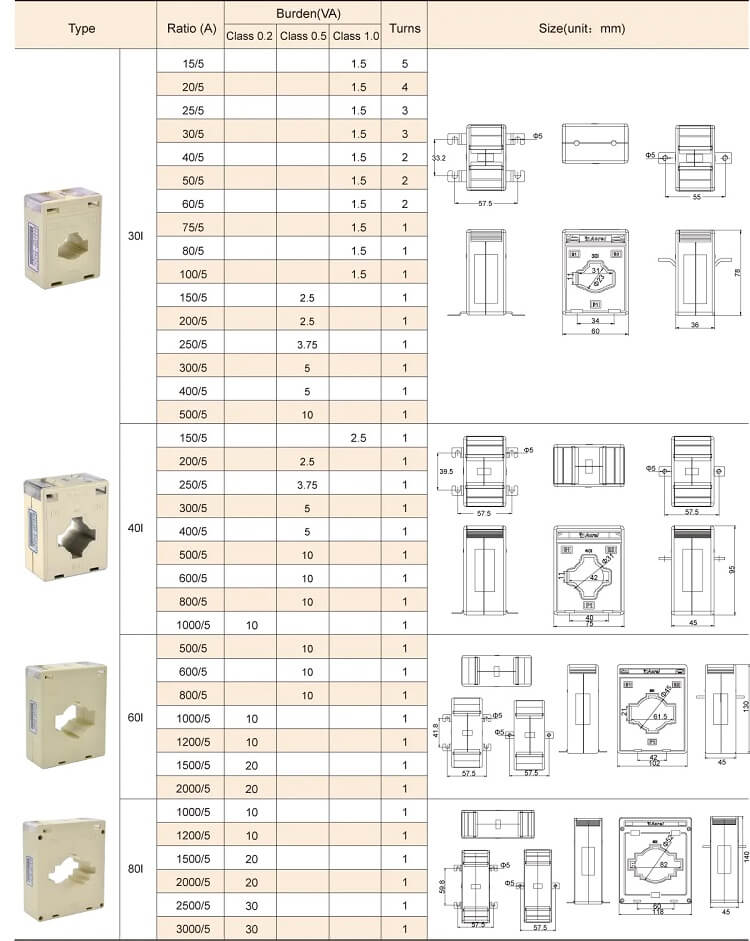

Parameter
Installation
Wiring
Application
Video
AKH-0.66 series （1）
AKH-0.66 series （1）
AKH-0.66 series （1）
AKH 400A CT split core type transformer
$7.00
≥1 Piece/Pieces
Options:
- AKH-0.66 I
