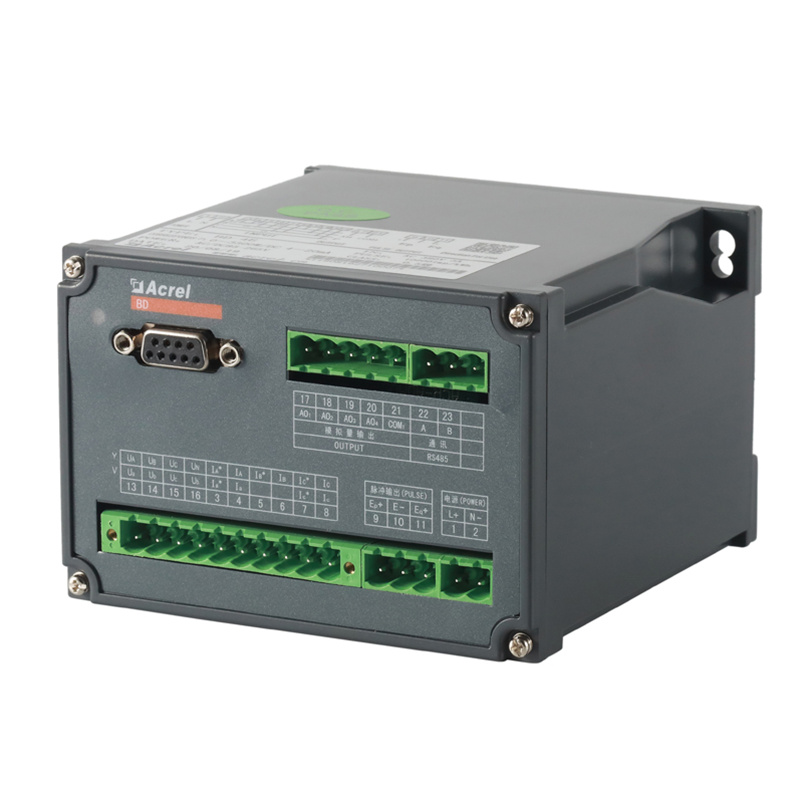

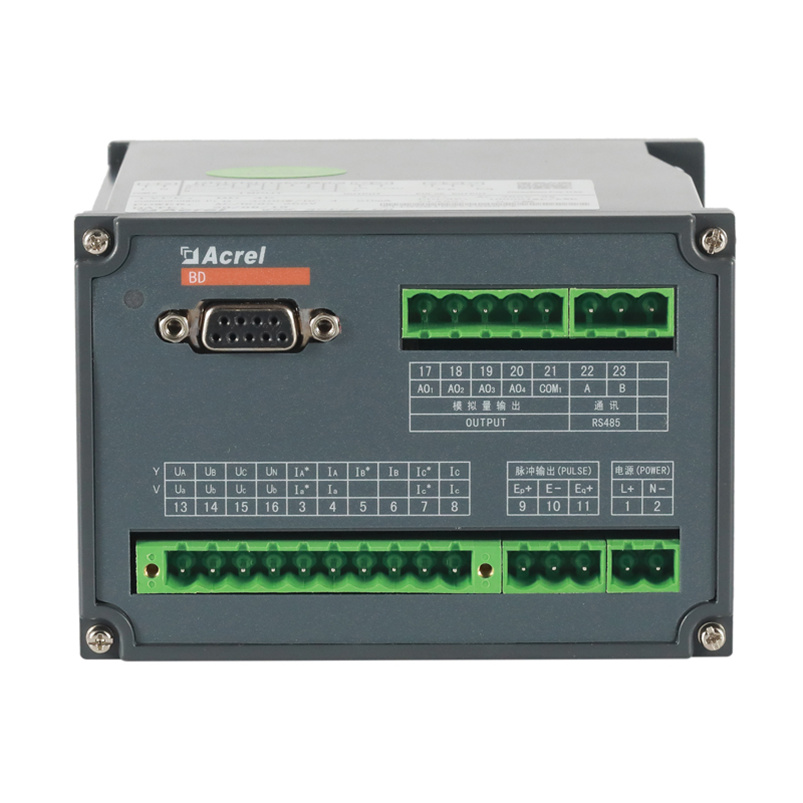

Analog output current loop transmitter

$215.00

≥1 Set/Sets

Options:

BD-AI
BD-AV
BD-DI
BD-DV
BD-3P
BD-4E

Get Latest Price

Basic Info

Model No.	BD-4E
Brand Name	Acrel
Place of origin	Jiangsu, China
Brand Name	Acrel
Model Number	Bd-4e
Type	Current Loop Transmitter
Usage	Measuring Current
Theory	Electromagnetic Induction
Output	4-20ma
Description	Ac Current Transmitter
Product Name	Analog Output Current Loop Transmitter
Power Supply	Dc12v/24v
Communication	Rs485 Port Modbus-Rtu Protocol

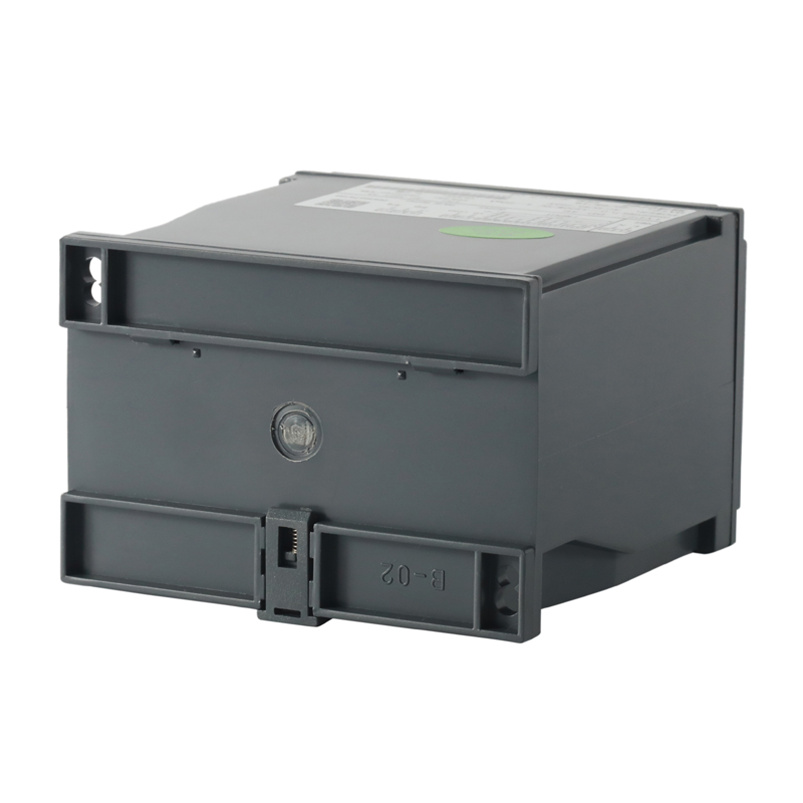

Installation	Din Rail Installation

Product description

Analog output current loop transmitter

BD series Analog output current loop transmitter is olate and convert electrical parameters(e.g.current,voltage,frequency,power and power factor) in the power grid into DC analog signal or digital signal.current loop pressure transmitter complies with GB/T13850-1998 and IEC-688.

Specification

Type	Function
BD-AI	Input:AC 0-1/5A; Output:4-20mA; Power:AC/DC85-270V
BD-AV	Input:AC0-100/300/500V; Output:4-20mA; Power:AC/DC85-270V
BD-DI	Input:DC4-20mA,0-20mA; Output:4-20mA or 0-5V; Power:AC/DC85-270V or DC24V
BD-DV	Input:DC0-10V,0-75mV; Output:4-20mA or 0-5V; Power:AC/DC85-270V or DC24V
BD-3I3	Input:3 phase AC 0-1/5A; Output:4-20mA; Power:AC/DC85-270V
BD-3(4)V3	3P3W/3P4W,Input:0-120/300/500V; Output:4-20mA/0-5A; Power:AC/DC85-270V or DC24V
BD-3(4)P	3P3W/3P4W,Input:0-1/5A,0-125/250/450V; Output:4-20mA; Power:AC/DC85-270V,1 channel analog output
BD-3P/Q/I	3P3W input, measuring P,Q; Power:AC/DC85-270V;3 channels analog output
BD-4E	3P3W, measuring I,U,P,Q,F,PF,kWh,Kvarh,etc; 1 channel analog output,2 channels energy impulse output,RS485 Modbus-RTU
BD-4EA	3P3W,measuring and displayingmeasuring I,U,P,Q,F,PF,kWh,Kvarh,etc;1 channel analog output,2 channels energy impulse output,RS485 Modbus-RTU

Measurement
- Voltage\Current\Power\Power factor\Frequency
- Overload: 1.2 times of rated value
- Analog Output DC 0-5V/0-10V/0-20mA/4-20mA

Quotation Sheet

Packing&Delivery

Company Profile

Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]
Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.
