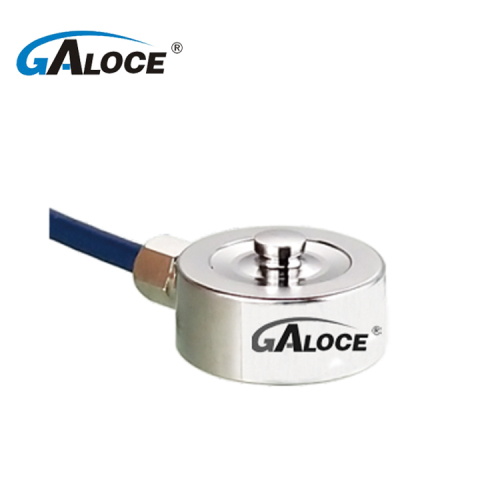

Arbor Press Verification application miniature load cell
Basic Info
| Model No. | GML655 |
|---|---|
| Brand Name | GALOCE |
| place of origin | China |
| Output | Analog Sensor |
| Place Of Origin | Shaanxi, China |
| Output | Analog Sensor |
| Usage | Pressure Sensor |
Product description
GALOCE GML655 miniature load cell is button force load cell, it can measure the compression force sensor. stainless steel 17-4PH material, the rated capacity is 3, 5, 10 ,20, 30, 50, 100kg. miniature force sensor are mainly used for automonile parts assembly, automated assembly,3C product testing, new energy product assembly, medical testing,robotics,mold assembly and other industrial automation fields with small space.
What features of GML655 miniature load cell ?
1. Stainless Steel;
2. Miniature Structure;
3. It is suitable for a variety of small space force measurement;
4. Mainly used in automobile parts assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial automation fields.

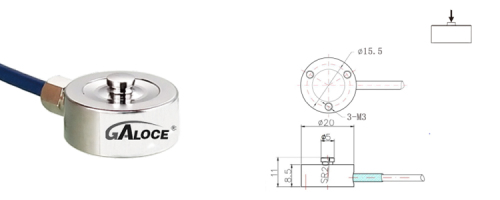

Dimension of GML655 miniature load cell ?
What specifications of GML655 miniature load cell ?
|
Specifications |
|
|
Rated Capacity |
3, 5, 10 ,20, 30, 50, 100kg |
|
Comprehensive error |
≤±0.1% |
|
Rated output |
1.0~1.5mV/V |
|
Zero balance |
±2%F.S |
|
Non-linearity |
0.1% |
|
Creep |
±0.1%F.S/30min |
|
Input resistance |
350±5Ω |
|
Output resistance |
350±5Ω |
|
Insulation resistance |
≥2000MΩ/50VDC |
|
Temp. effect on span |
±0.05%F.S/10℃ |
|
Temp. effect on zero |
±0.05%F.S/10℃ |
|
Compensated temp range |
-10~+60℃ |
|
Operating temp Range |
-20~+80℃ |
|
Excitation voltage |
5~15V |
|
Safe overload |
120%F.S |
|
Ultimate overload |
200%F.S |
|
Defend grade |
IP66 |
