Small Button Type Small Compression Size Load Cell
$29.00
~ $49.00
/ Piece/Pieces
Options:
- stainless steel
Get Latest Price
You might also like
Basic Info
| Model No. | GML669 |
|---|---|
| Brand Name | GALOCE |
| place of origin | China |
| Output | Analog Sensor |
| Theory | Resistance Sensor |
| Material | Stainless Steel |
| Place Of Origin | Shaanxi, China |
Show More
Product description

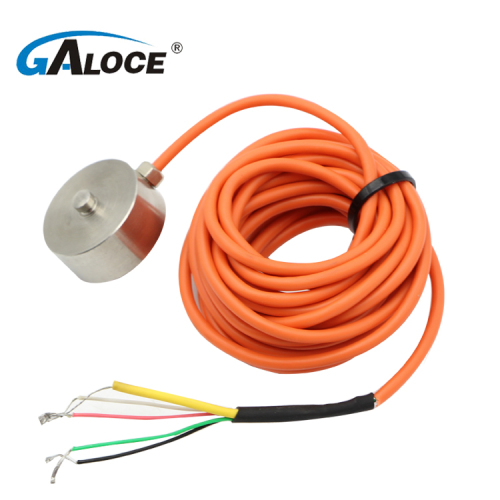

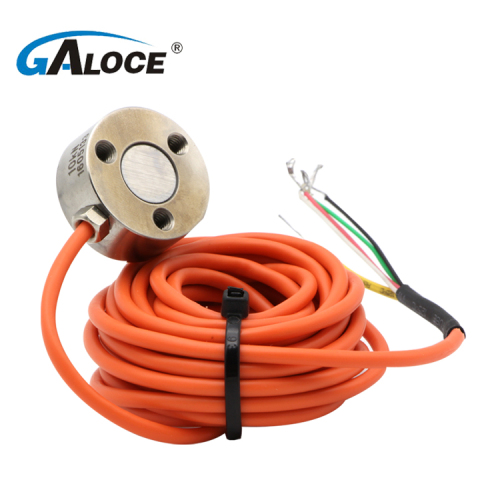

GALOCE GML669 miniature load cell is button force load cell, it can measure the compression force sensor. stainless steel 17-4PH material, the rated capacity is from 0.1-20KN. miniature force sensor are mainly used for automonile parts assembly, automated assembly,3C product testing, new energy product assembly, medical testing,robotics,mold assembly and other industrial automation fields with small space.
What features of GML669 miniature load cell ?
Details Images
Specification
|
vRange (KG)
|
10,20,30,50,100,200,300,500,1000,2000(kg)
|
|
|
||
|
Comprehensive precision
|
0.5%F.S
|
Sensitivity
|
1.0~1.5mV/V
|
||
|
Zero output
|
±1%F.S
|
Creep
|
0.05%F.S/30min
|
||
|
Input resistance
|
350±20Ω
|
Output resistance
|
350±3Ω
|
||
|
Temp. effect on zero
|
±0.05%F.S/10℃
|
Temp. effect on output
|
±0.05%F.S/10℃
|
||
|
Operation temp.range
|
-20~+65℃
|
Insulation resistance
|
≥5000MΩ
|
||
|
Safe Overload
|
150%F.S
|
Excitation voltage
|
10VDC
|
||
|
Material
|
Stainless steel
|
Wiring
|
Input+: Red Input-:Black
Output+:Green Output-:White
|
||
Dimension
|
Range
|
|
Dimension
|
|
|
|
|
|
|
|
||||||||
|
KN
|
KG
|
?A
|
?C
|
?D
|
H
|
E
|
M
|
H1
|
SR
|
||||||||
|
0.1~2
|
10~200
|
20
|
2.5
|
15.5
|
12
|
10
|
M3
|
3.5
|
6
|
||||||||
|
3~10
|
300~1000
|
26
|
5
|
18.5
|
15
|
11.5
|
M4
|
3.5
|
6
|
||||||||
|
20
|
2000
|
30
|
6
|
20
|
18
|
14
|
M4
|
3.5
|
15
|
||||||||
Company Overview
GALOCE is a high-tech Internet brand integrating R&D, production and sales and committed to becoming an excellent brand service provider in the field of weighing measurement and control.
At present, it mainly produces all kinds of weighing sensors, torque sensors, wireless dynamometers, portabl
View More
Company Photos
Production Certification
GALOCE (XI'AN) M&C TECHNOLOGY CO., LTD.
- 5yrs
Xian,
Shaanxi,
China
- Manufacturer
- Trade Company
- OEM service
Video

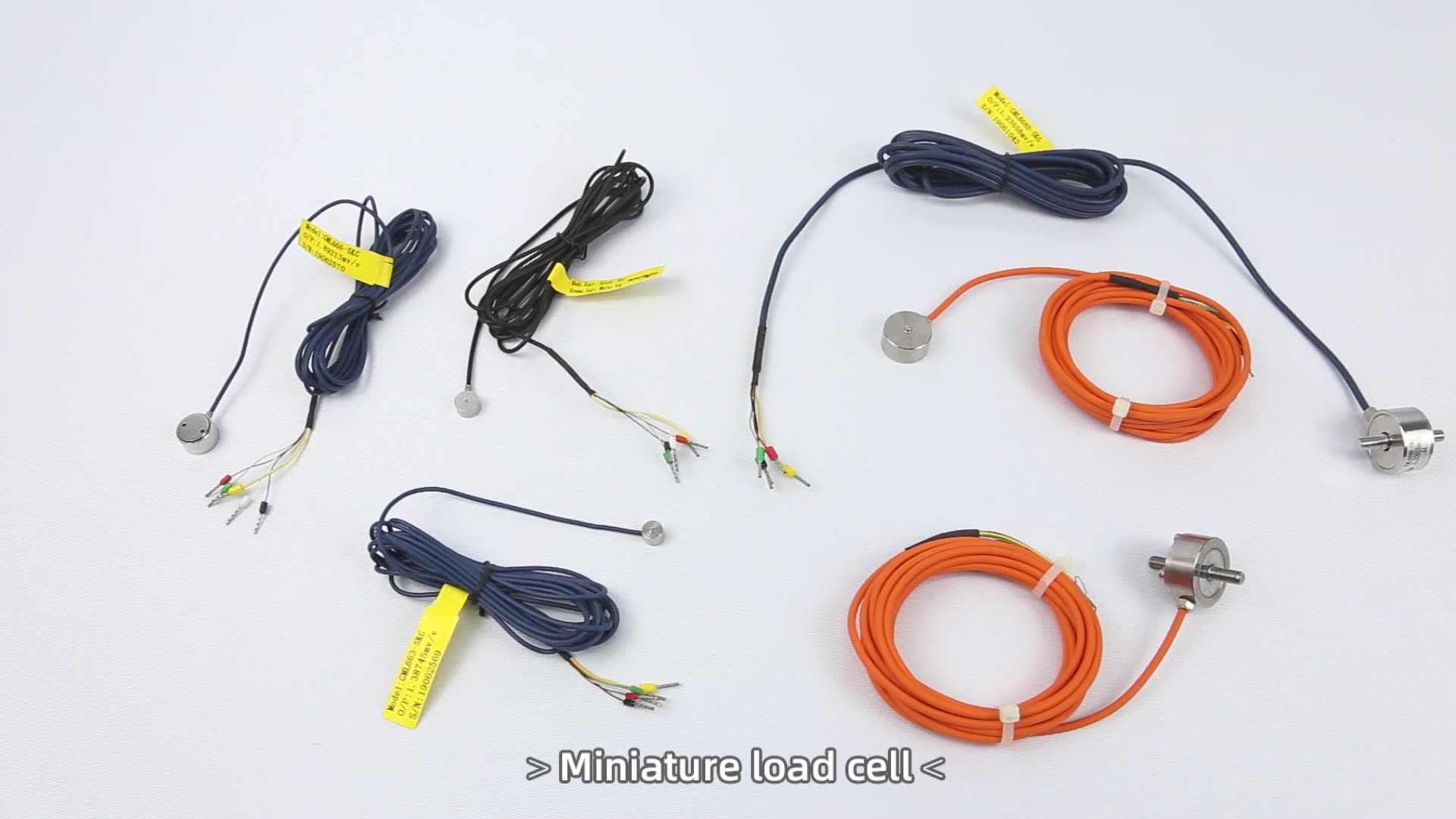

miniature load cell small force sensor
