Automatic Bonnell Spring Assembling Machine

Get Latest Price

Model No.
Brand Name
Certification	CE
Condition	New

Product Description:

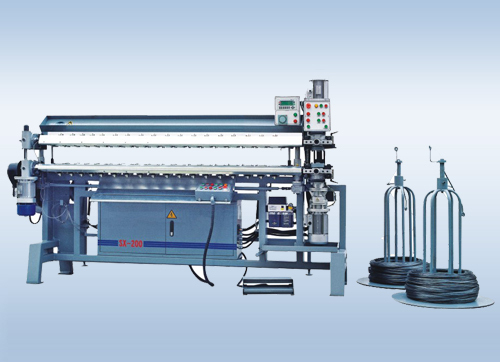

Automatic Bonnell Spring Assembling Machine is specially designed for producing spring units for mattresses, furniture and motor vehicle upholstery.

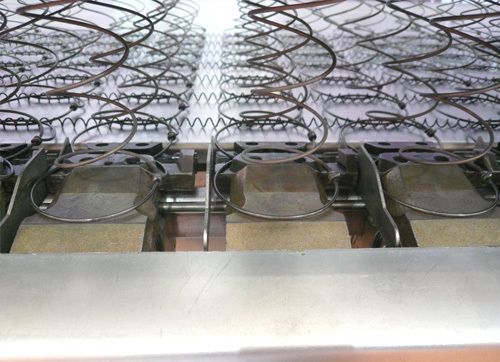

It can assemble upper and lower springs at the same time and it is operated only by one person. The user can set up machine for various sizes of spring units, the thickness of wire, the height of the spring and diameter of the end ring. The knotting of springs and the forwarding of spring units are performed automatically. Because of mechanical protection devises and safety switches, the machine guarantees maximum safety to operator.
The technical parameters such as rolls can be set in computer. Control panel performs the machine settings and displays messages on LCD Display to the operator. Machine is also equipped with horn that is warning about completing spring unit. Mobile button box is another device in the assembling machine that will lighten the work of operator.
Both the electrical parts and the structure of the machine are up to the CE. so that it is more safe and user-friendly.

Technical characteristics:

1. For Processing up to 28'000 springs per shift (8 hours).
2. Fast and easy change of the size.
3. Without compressed air.
4. Low maintenance.
5. With SPS.

Spring Type	Bonnell
Production Speed	80Pcs/8 Hours (1800×2000mm)
Diameter Adjustment	+ / -1mm
Max Width	2M
Helical Wire	Φ1.3-Φ1.5mm (option: Φ1.6mm)
Spring Wire Diameter	Φ1.8-Φ2.4mm (option: Φ2.5mm)
External Spring Diameter	68MM Jaws: Φ62-Φ70mm
	78MM Jaws: Φ68-Φ75mm
	88MM Jaws: Φ75-Φ82mm
	98MM Jaws: Φ82-Φ95mm
Spring Height	80-190mm (option:190-210mm)
Spring Coils	4-7 Coils
Lubrication	Fully Automatic Standard
Control	LCD
Power Requirements	380V/220V 50HZ/60HZ
Total Power	3KVA
Machine weight	1000KG
