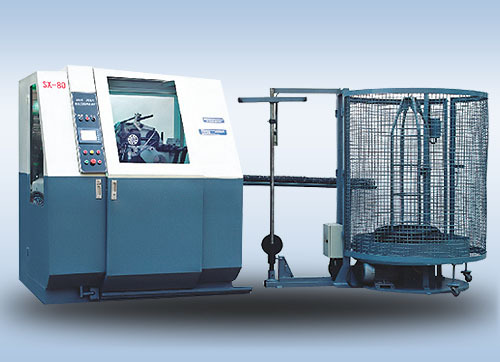

High Speed Bonnell Spring Coiling Machine

Name: High Speed Bonnell Spring Coiling Machine
Brand: NINGBO TANA IMP.&EXP. CO., LTD
Rating: 4.4 (28 reviews)

Get Latest Price

High Speed Bonnell Spring Coiling Machine is an auto machine that is making mattress springs. It combines coiling, knotting, heating and outputting total four procedures in one machine. The speed is at 80 springs one minute. The coiler SX-80i utilizes a fully integrated computerized Programmable logic controller (PLC) and servo control system. All machine functions include wire feeding length, knotting, heat treatment, lubrication and self-protecting are automatically controlled.
Both the electrical parts and the structure of the machine are up to the CE. so that it is more safe and user-friendly.

Spring Type	Pocket
Production Speed	48 Spring/Minute
Spring Diameter	Φ35 – 80mm
Spring Wire Diameter	Φ1.5-Φ2.2mm
Spring Height	80 – 200mm
Spring Coils	4-8 Coils
Fabric Rolls Width	Max. 540mm
Fabric Material	50 – 100G/M2
Fabric Roll Diameter	Max. 600mm
Lubrication	Fully Automatic Standard
Tempering	Standard
Control	PLC
Safety	Coiler Sound Enclosure and other features
Power Supply	380V/220V 50/60Hz 3.8 KVA
Ait Consumption	30 M3/H 0.8MPA
Operative Temperature	0oC- +45oC
Machine weight	2360KG

Main Features

1. Investment in low-cost high returns in short-term.
2. Years perfect machine.
3. Easy to operate master.
4. Produces center-sealed pocket springs that are trim and compact.
5. Electronic components are CE-conform and [off the shelf"(such as:Mitsubishi, SMC, CKD, Schneider-).
6. Ultrasonic horn is made of Titanium / Durable and Firm.
