TW-JH Multi-needle Sewing Machine

Name: TW-JH Multi-needle Sewing Machine
Brand: NINGBO TANA IMP.&EXP. CO., LTD
Rating: 4.5 (3 reviews)

Get Latest Price

Product Description:

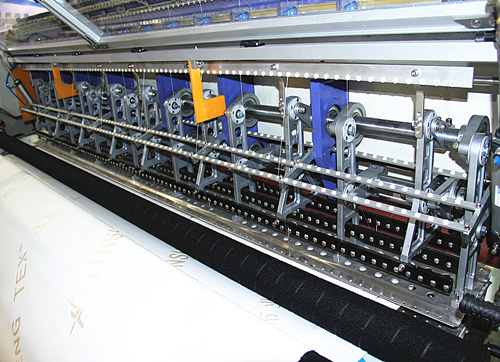

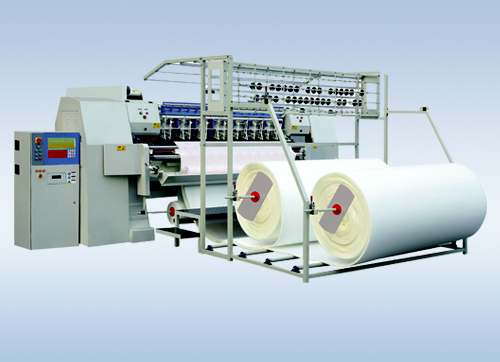

TW-JH High Speed Computerized Chain Stitch Multi-needle Quilting Machine is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.

Technical characteristics:

1. Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material.
2. Multi-span and independent patterns(360°and 180°patterns are available).
3. Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment.
4. CE Certificate.
5. No need to adjust the press plate' s position when the thickness of quilting material varies.
6. Outstanding features such as high rigidity, high running speed, low vibration and noise.
7. CNC precision control system.
8. Easy preparation of CAD drawings extremely precise.
9. Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes.
10. Fault detection function for ease of determining the running state of the machine at any given time.
15. The machine greatly simplifies the transmission structure, prolongs the service life and reduces the maintenance cost.

Technical Specification:

Dimension (LWH)	4940×1200×2020mm
Width of quilting	2480mm
Space between needle rows	50.8,76.2,127(5") 76.2,76.2,152.4(6")
Space between needles	25.4mm
X-axis movement distance	410mm
Thickness of quilting	≤80mm(for all patterns)
Length of step	3-8mm
Speed between production	60-230m/Hour
Model of needle	24/180 23/160 22/140 21/130
Speed of main shaft	200-990RPM
Power	7KW
Voltage	380V /220V 50HZ/60HZ
Machine weight	4800KG
