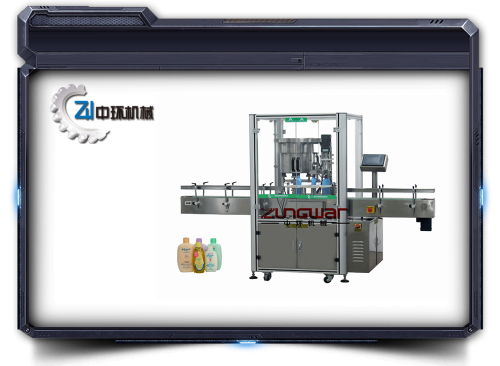

Automatic Locking Cap Machine

Feature:

No bottle or wrong position, it will not work.

The disk vibrate to drop the cap, and the manipulator picks the caps correctly, the caps are held by cylinder (the holding force can be regulated), there's no damage when revolving the caps.

The wresting force can be adjusted when locking different caps.

There's cushion setting on the head of the locking cap to further reduce the shattering rate.

The complete machine has got many self-inspection: the machine will automatically stop when no bottle to lock, blocking when out of exit, wrong orientation, dumpage of the bottle.

The locking head parts and the star tray can be replacing according to different container or bottle caps, the replacing operation is easy.

Technical Parameter

Model

ZHXG 50-Ⅰ ZHXG 50-Ⅱ ZHXG 50-Ⅲ

Kinds of revolving caps Screw thread revolving cap Screw thread AL. cap Aluminum Roll

Capacity 40-50b/min 40-50b/min 40-50b/min

Voltage

3φ380V 3φ380V 3φ380V

Power 1.2KW 1.2KW 1.2KW

Consuming tolerance 4Kg 30L/ min 4Kg 30L/ min 4Kg 30L/ min

Weight 700Kg 700Kg 700Kg
