Major Characteristics

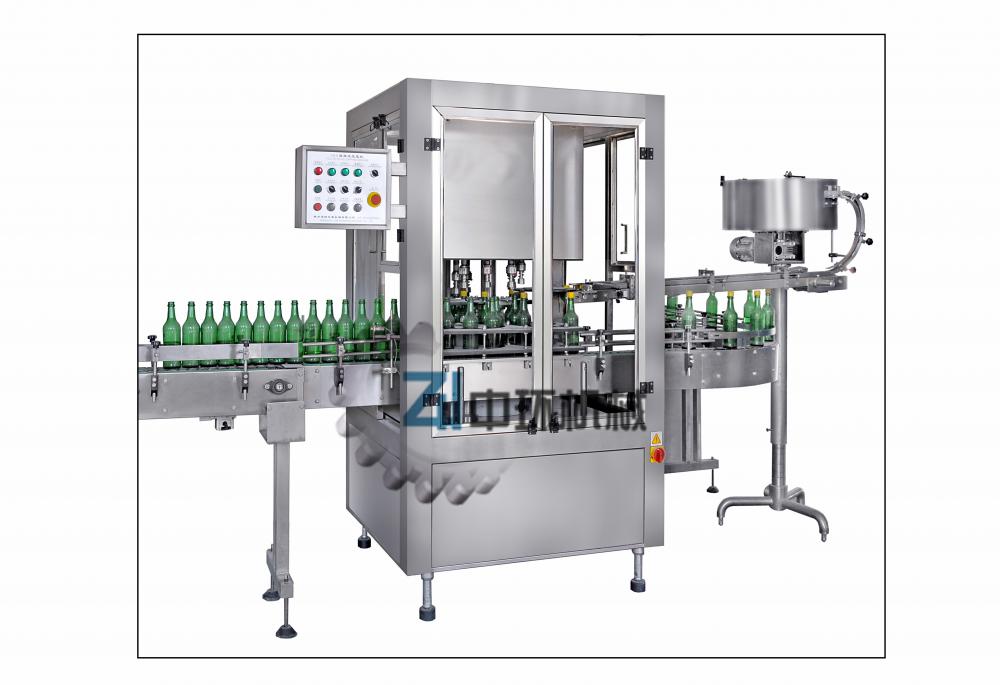

The pressed cap by the machine is good in sealing performance, and is convenient to open so that it plays a theftproof and anti-counterfeit role. Cap sorting applies electromagnetic concussion in order to protect aluminum cap from being damaged. In addition, it is accurate and fast in sorting caps. The hobs are made of specific materials with clean appearance and are wear resistant. Furthermore, the screw is clear and fine after sealing. The sealing speed is adjustable and is high in qualification rate. The surface are made of high-quality stainless steel. It can be adaptive to different conditions to work and is fine in appearance. Thus, it is an ideal packaging machine for agrochemical, pharmaceutical, chemical, foodstuff and cosmetic industries.

Main Performance parameter

Machine Dimension(L×W×H) 1700mm x 1400mm x 1700mm

Cap Application Aluminum cap

Bottle size diameter:Φ20 mm-Φ50 mm height: Φ80 mm-Φ150 mm

Diameter of bottle mouth Φ18 mm-Φ26 mm

Power of main frame 1.5Kw

Powder supply 220V

Number of capping heads 8heads

Production capacity 9000b/h

Weight 800kg
