1. This machine can be used in various configurations containers and irregular containers.

2. When cap tightening finished, bottle and cap relatively stop.

3. Clutch separate, bottle and cap are not injured.

4. Production capacity: 6 heads 4800 bottles/hour; 8 heads 6000bottles/hour

Major Characteristics

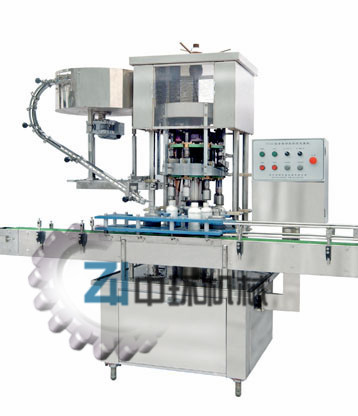

This machine has eight mechanical hands, dispatches caps in high speed with no inverse cap, which can be used in various configurations containers, irregular containers. It can be divided into scrape capping and grasp capping according to different caps. Supply cap machine and mechanical hands working with synch. When cap tighten finished, bottle and cap relatively stop. Clutch separate, bottle and cap are not injured.

Main Performance Parameter

Power supply: AC220V; 50Hz

Power: 1.5kw

Weight: 680kg

Suitable container:

Height: 80mm~280mm

Diameter: Ф30mm~Ф100mm

Production capacity:

heads 4800 bottles/hour

heads 6000bottles/hour

Suitable cap: Ф×H

Ф12mm~Ф50mm×15mm~50mm

External dimension (L×W×H): 2000mm×1200mm×2300mm
