2023Low Cost Fiber Laser Tube Cutting Machine Near Me

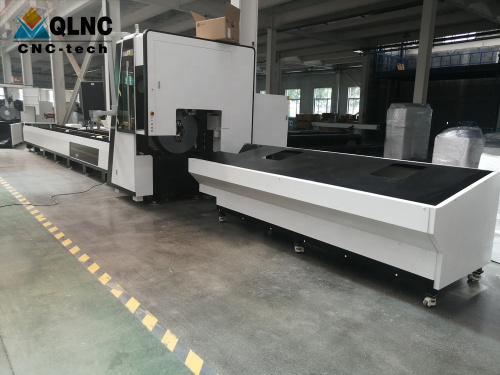

CNC Laser Machine automatic laser pipe cutting machine (automatic fiber optic pipe laser cutting machine, pipe laser cutting machine) introduces German fiber laser cutting equipment solutions, equipped with FSCUT numerical control system. The frame adopts welded structure, and the X-axis is driven by precision rack and pinion; the self-centering chuck design has the characteristics of stable structure, good rigidity, light weight and high dynamic response. Provide customers with high dynamic, high efficiency, low energy consumption fiber laser cutting system, improve economic efficiency, is a fully automatic laser tube cutting machine with excellent performance.

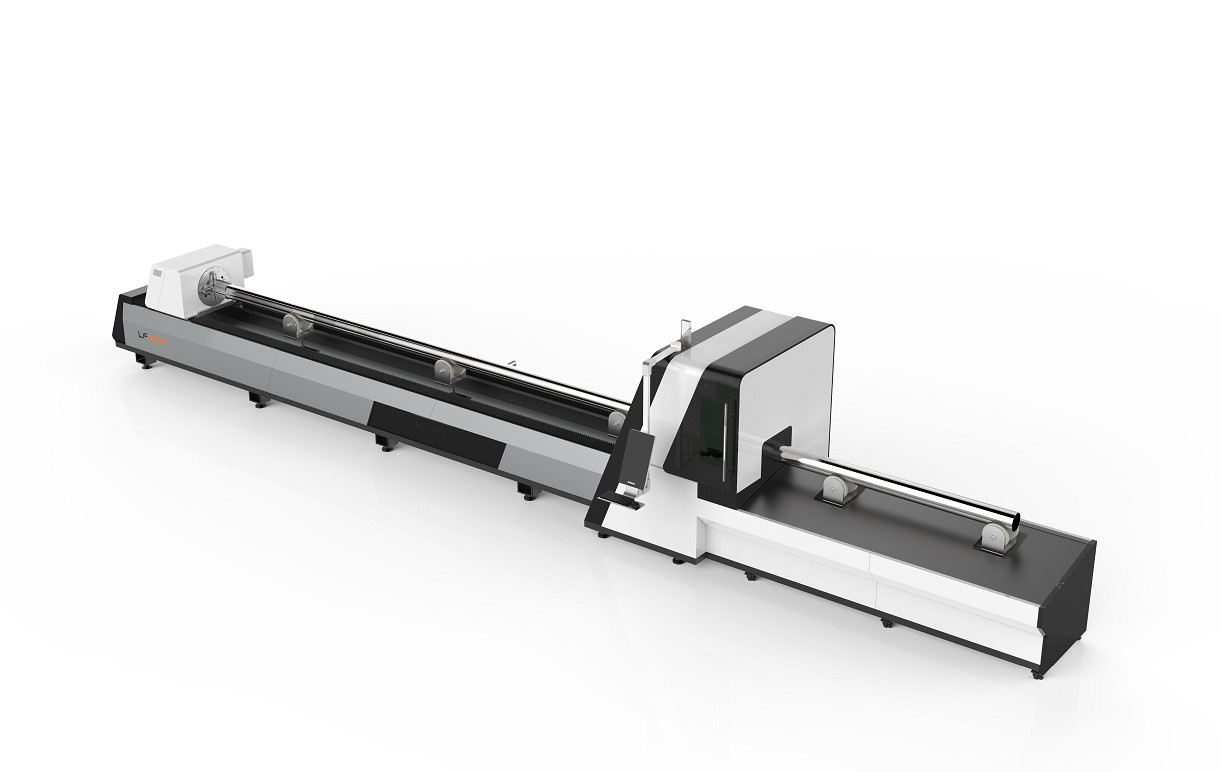

Automatic Laser Tube Cutting Machine

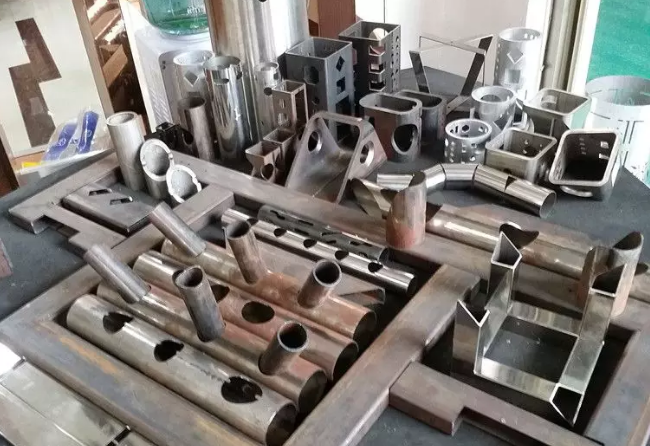

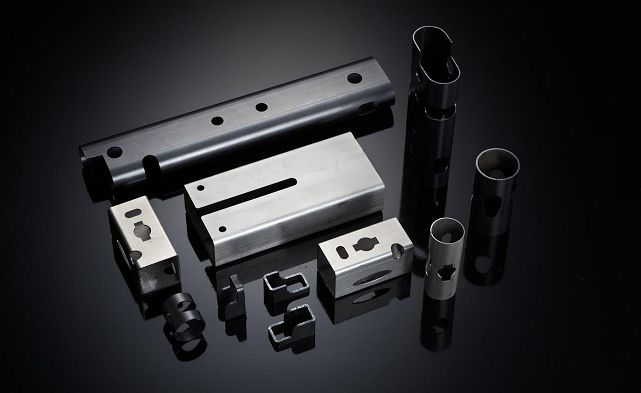

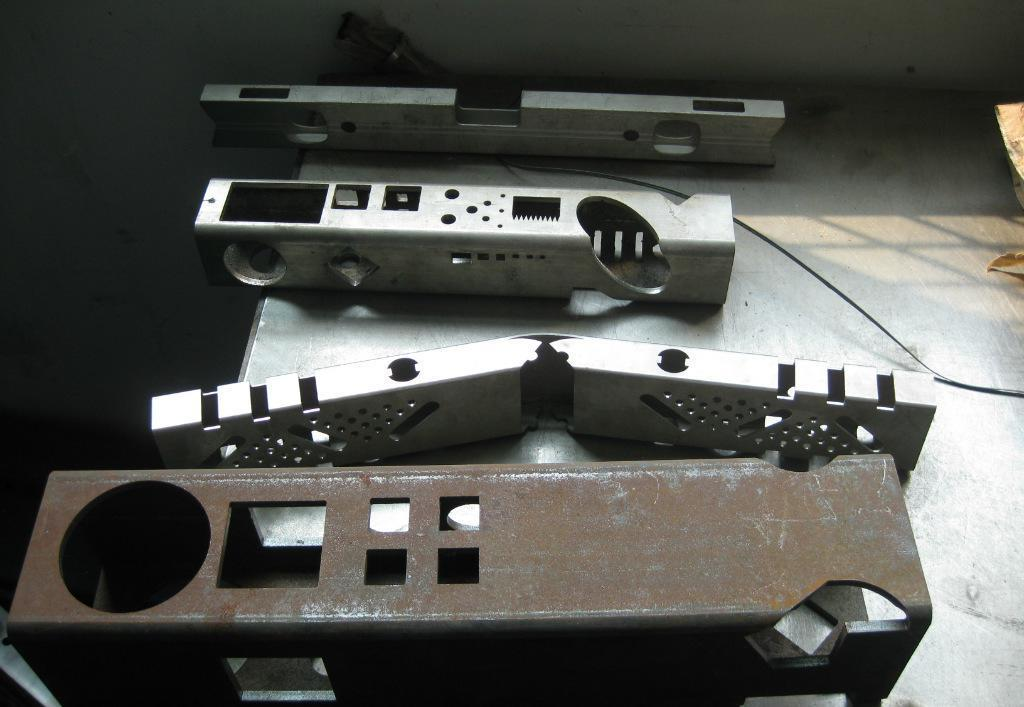

    Tube laser cutting machine cutting tube type: round tube, square tube, rectangular tube, D-shaped tube, triangular tube, oval tube, special-shaped tube angle steel, channel steel and H-shaped steel with equal diameters
    Laser Metal Cutting Machine cutting material: carbon steel, stainless steel, galvanized iron, alloy, copper, aluminum and other metals
The cutting system of the automatic laser pipe cutting machine can cut on any surface of the pipe or along the length of the pipe, and different processing procedures can be automatically completed in one piece of equipment. The system can cut square tubes, round tubes, rectangular tubes, oblate tubes and other metal materials such as stainless steel, carbon steel, aluminum alloy, titanium alloy and bronze. Sheet & Tube Laser Cutting Machine is a professional laser tube processing with small footprint, high degree of automation, faster processing efficiency, more flexible processing graphics and lower processing cost.
Optical fiber tube laser cutting machine (laser tube cutting machine):
     1. The core transmission components and control system of Fiber Laser Cutting Machine are all made of German original parts, with high acceleration and stable dynamic performance.

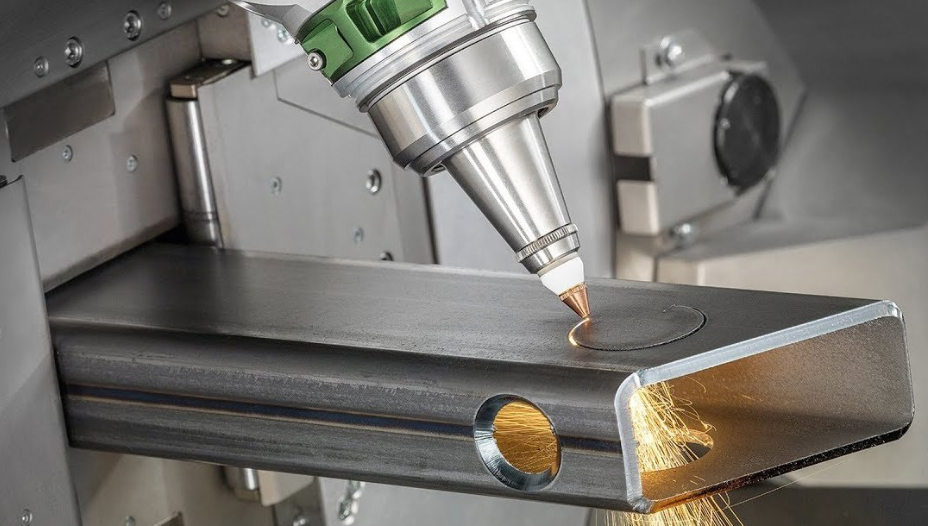

     2. The cutting head of the laser tube cutting machine adopts German Precitec-HP series, high dynamic 2D constant focal length cutting, when cutting workpieces of different thickness, the replaceable box can quickly change the focal length. At the same time, because the mechanical interface is consistent with other HP series processing heads, CO2 or fiber laser can be used alternately quickly.
     3. The Enclosed Fiber Laser Cutter can realize automatic feeding, align and measure the tube material, and realize efficient cutting.
     4. The electric control box is equipped with an intelligent temperature control and adjustment system to achieve stable operation in various extreme climates such as high temperature and low temperature.
     5. The intelligent dual-temperature control cooling water system realizes independent control of the laser and optical path system, and realizes stable operation in harsh environments and climates.
     6. The laser pipe cutting machine adopts an automatic discharge system to recycle the processed workpieces and reduce manual intervention.

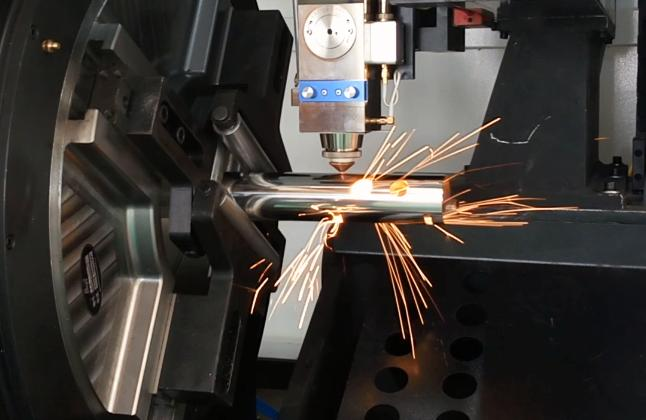

     7. The laser pipe cutting machine adopts a self-centering chuck design, which is light in weight, high in response dynamics, and the air source is rotated for supply.
     8. It can process and cut a variety of different pipe shapes, sizes and thicknesses.
     9. The control system of the laser pipe cutting machine adopts the FSCUT numerical control system, which has the adaptive look ahead function (Adaptive Look Ahead), and can preprocess 1000 NC program segments in real time. The "curvature optimization function" of the system can achieve excellent results in the processing of a large number of continuous small line segments, and better ensure the rapidity, continuity and stability of the processing process. Leapfrog jumping, retraction and high-speed electronic shutter functions can cut at high speed and high precision.
Exchange Table Fiber Laser Cutter Application Industry:
  High Power Metal Laser Cutter is used in sheet metal processing, electrical appliances, aviation, aerospace, electronics, machinery, subway accessories, automobiles, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal Various manufacturing and processing industries such as external processing.
  Sheet Metal Fiber Laser Cutter Applicable Materials:
It is mainly used for fast cutting of stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized sheet, galvanized sheet, copper and other metal materials.

1. Loading and cutting are carried out simultaneously, reducing non-production time and realizing efficient cutting.
2. The rocker-type industrial computer can be turned freely according to the position of the operator, and the design is humanized.
3. Electrical equipment group, strong electrical isolation and weak electrical isolation, minimize circuit board interference; easy to maintain, good heat dissipation, dustproof, anti-static interference.
4.Automatic intelligent high-speed feeding system
Loading and cutting are carried out simultaneously, reducing non-production time and realizing efficient cutting
Double-sided follow-up support device
5.The double-sided follow-up support device can automatically select the lifting surface according to the shape of the processed pipe to ensure the accuracy of the pipe cutting.

    "0" Tail material
Professional three-chuck configuration,full-stroke clamping,one machine can cut,open holes,cut arcs,hollow out,wear through,
which greatly saves the cost of raw materials

     Dual Use and Cost-saving
4015CR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

Clamp Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.

Fractional Automatic Support Installation

It employs intelligent tube support design,

which can solve the deformation problems in the process of long tube cutting.

Industry Applications

Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement.

Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

Full-automatic feeding and unloading material device
Automatic Feeding
Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
Automatic Unloading
The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.

6000W IPG Fiber Lasers Source

World Famous Brand
laser cutting machine YLS-CUT series high power fiber laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.
Long Service Life
The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely.
Stable Cutting Performance
Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.
6000W IPG Fiber Lasers Source
World Famous Brand
Laser cutting machine YLS-CUT series high power fiber laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 20mm.
Long Service Life
The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely.
Stable Cutting Performance

Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.
