CNC Metal Plate Tube Laser Cutting Machine

Overview:

Pipe laser cutting machine can also be called automatic laser pipe cutting machine, metal laser pipe cutting machine, fiber laser pipe cutting machine, profile laser cutting machine, the pipe laser cutting equipment can be used for metal pipes, profiles, angle iron, channel steel, I-beam, H-beam, and other long strip metal materials are finely cut. Suitable for stainless steel pipe, carbon steel pipe, alloy steel pipe, silicon steel pipe, galvanized steel pipe, nickel-titanium alloy pipe, inconel alloy pipe, titanium alloy pipe and other pipe materials.
     Sheet & Tube Laser Cutting Machine is widely used in round tube square tube stainless steel guardrail anti-theft net, machinery manufacturing, elevator manufacturing, advertising production, household appliance manufacturing, sports equipment, anti-collision guardrails, river guardrails, bridge guardrails, new stair handrails, lighting guardrails , Landscape guardrails, wrought iron guardrails, wrought iron railings, landscape lampposts, metal external processing services and other manufacturing industries.
    Laser Metal Cutting Machine adopts bilateral servo motor and guide rotation mechanism, high cutting precision, W-axis idle speed ≤ 80 rpm, professional display software can be used to design various graphics at will or instant processing of text, flexible processing, simple operation, Convenient, equipped with professional laser control system, Raycus laser, Shanghai Jiaqiang laser head, applied to high-speed pipe cutting, with high speed and stability.
High Power Metal Laser Cutter Mechanical Motion System
    1. The Fiber Laser Cutting Machine bed adopts tube-sheet steel structure. After the internal stress is naturally eliminated as a whole, it is finished by one-time precision machining in a large-scale machining center, which has high rigidity, precision and stability; the cantilever beam is made of aluminum alloy, that is, It ensures extremely high strength and reduces the weight of the machine, reduces the inertia of the whole machine when it runs at high speed, and ensures high acceleration.
    2. Using precision helical gear rack and P-level linear guide rail as the transmission components, it has high precision and fast speed. The Y running speed is ≤80m/min, the positioning accuracy is ±0.05mm/m, and the repeat positioning accuracy is ±0.03mm.
    3. X-axis, Y-axis racks and guide rails, W-axis synchronous wheels and other transmission devices are protected by protective leather chambers. The entire equipment is fully sealed to prevent dust from affecting the linear guide rails, gear racks, and synchronous belt synchronous wheels of the machine tool. pollution, prolonging the service life of the machine and ensuring the safety of the operator.
    4. The Z-axis device of Sheet Metal Fiber Laser Cutter can control the Z-axis motor to drive the cutting head to move up and down through a non-contact sensor, so that the distance between the nozzle and the cutting sheet remains constant during cutting, ensuring the cutting quality.
    5. The X-axis, Y-axis, and Z-axis movements are all controlled by the system soft limit and limit switch. At the same time, both ends are protected by elastic cushions, which effectively guarantees the safety of the movement.
Advantages of this pipe laser cutting machine:
    1. Enclosed Fiber Laser Cutter can perform high-speed and high-quality laser cutting on round tubes, square tubes, rectangular tubes, oval tubes and other special-shaped tubes.
    2. With high speed and high precision, it can realize pipe opening, cutting, intersecting line cutting and precision cutting of various special-shaped complex graphics that are difficult to achieve in conventional processing. After programming on professional pipe nesting software, it can realize what you see That's what you get.
    3. One-time forming, avoiding multiple processing processes such as cutting and grinding in traditional processing, saving costs and improving efficiency.
    4. The price of Fiber Laser Pipe Cutting Machine is economical and affordable, and it is suitable for batch processing of the same type of pipes. This model is suitable for factory-type customers with large pipe volume and infrequent pipe change. This model has simple structure, low failure rate, and easy operation. The manual refueling time for batch processing pipes of the same model is 10 seconds.
    5. One piece of Fiber Laser Tube Cutter is both an intersecting wire cutting machine and a cutting machine, which can cut various shapes on steel pipes, and cut different shapes of cross-sections according to different butt joint surfaces.

Features:

RAILS+GEAR TRANS SYSTEM
 Hiwin rails + YYC gear trans system make cutting head runs smoothly ,Maintain the accuracy of cutting, keep long-term durability ,Italy WKTe Linear Square rails + Germany SDIBORG Gear optional
PRECISE CUTTING HEAD

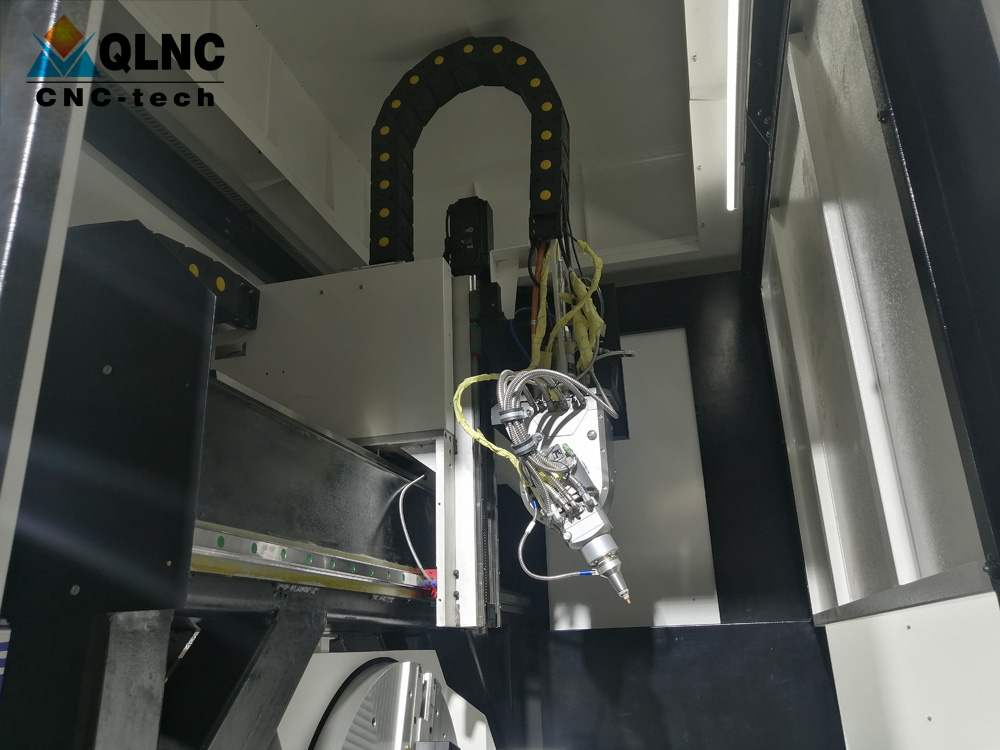

Raytools laser cutting head BM111,laser cutting head Support AU3TECH/PRECITEC/WSX optional,if you want hands free ,you can choose auto focus laser cutting head ,auto adjusting and easy to oparate ,greatly improving cutting speed.
 STABLE MACHINE FRAME
Weld steel machine frame can support heavy material cutting and it is less affected by heat and invariable for long-term use  ,and It is stable when cutting, so as to minimize the error.the weight of machine bed 3000x1500 about 2T,other size like 2513/4015/4020/6020/6025/8025/12025/16030 can be customed ,also you can choose exchage table ,double table can improve production efficiency
CYPCUT PLANE CONTROL SYSTERM(2000)
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting
industry,easy to use, rich in functions, suitable for various processing occasions.
Edge finding aid

YASKAWA SERVO MOTOR
1.Accuracy: realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor;
2.Rotating speed: high speed performance, general rated speed can reach 2000~3000 rpm;

Application:

Applicable materials for laser cutting machine for metal:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube),, Iron Plate(tube),, Galvanized Iron(tube),, Galvanized Sheet, Aluminum Plate(tube),, Copper Sheet(tube),, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Application Industries :
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc

As reference, different power, different cutting thickness, please check the following cutting paramater.
If you have any questions, please contact us, we are always here, and we support do the free sample testing.
Cutting Thickness parameter：
Different Power can be chosen, RAYCUS, IPG , MAX,  NIGHT, JPT, etc.
