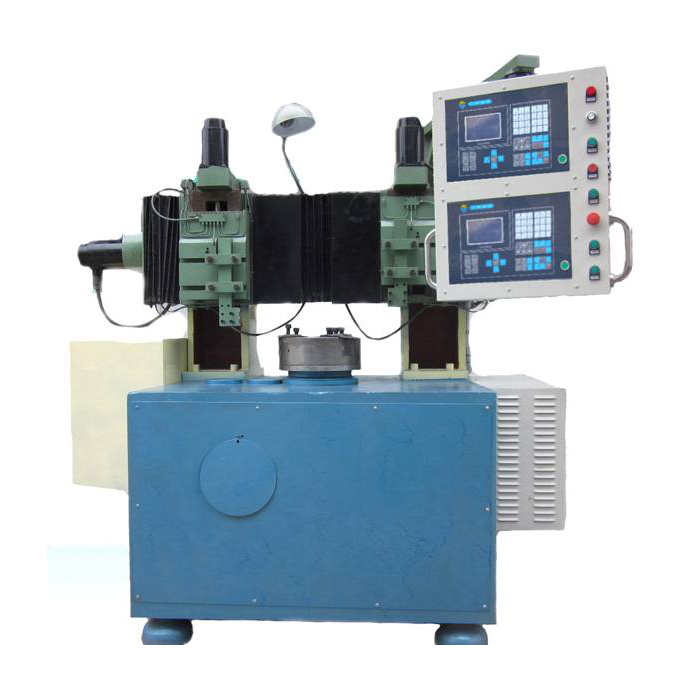

Automatic vertical cnc lathe machine

$18000.00

≥1 Others

Options:

40mm

Get Latest Price

You might also like

Automatic vertical cnc lathe machine

1 set (MOQ)

Basic Info

Model No.
Brand Name
Condition	New
TYPE	Vertical
Year	New
Max. Length Of Workpiece (mm)	800
Dimension(LWH)	160CM220CM210CM
Brand Name	amitycare
Model Number	DY-ZLC-C630
Warranty	1 Year
Applicable Industries	Construction works
Key Selling Points	High-Accuracy
CNC or NOT	Cnc
Automatic Grade	Automatic
After-sales Service Provided	Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Overseas service center available
Max. Swing Diameter (mm)	40
Power (kW)	7.5
color	Customized
Material	Steel
Diameter	300-1000mm
Application	china automatic vertical cheap cnc lathe machine price
Weight	2800kg
Max. Swing Diameter	40mm
Power(W)	22KW
status	New
Types of	Vertical
place of origin	China
CNC system	Siemens
warranty period	1 Year
Out-of-warranty service	Video Technical Support, Online Support
Applicable industry	Construction Works, Manufacturing Plant
Core selling point	High-Accuracy
Where to provide local services (in which countries are there overseas service outlets)	None
Showroom location (in which countries are there sample rooms overseas)	None
Marketing type	Ordinary Product
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1 Year
Core components	Bearing, Motor, Engine
Place of Origin	Jiangsu, China
Voltage	380V50HZ
Weight (KG)	2800
Certification	ISO,CE

Product description

product description

china automatic vertical cheap cnc lathe machine price

Diameter	300-800mm
Speed of mainshaft	118r/min
Motor Type	Y180M-4
Power	22KW
Voltage	380V50HZ
Angling?cylinder	P22-160
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Travel?of?piston	max35mm
Pressure	max3.5Mpa
Push-pull?effort	max58900daN
Limit?speed	4500r/min
Active?area	189cm2
Install Capacity	23KW

? ?

Device application:

Conduct the turning process of pipe pile plank in end(excircle, seam allowance and plane)

Applicable product specification (Unit: mm)

DY-ZLC-C630 : ?300, ?400, ?500, ?600

DY-LC-B1060 : ?600, ?700, ?800, ?900, ?1000

china automatic vertical cheap cnc lathe machine price

Device characteristics

1.This product is mainly composed of spindle, hydraulic chunk, tool turrets on both sides, CNC system and automatic lubrication system

2.The mechanical parts are casted by adopting qualitative materials, it has enough strength

3.The vertical hydraulic inner circle holding material is simple and convenient to operate

4.Frequency converter is equipped to realize stepless speed regulating and improve the product quality

5.It adopts CNC control system, it is easy and simple to handle with high precision

6.The double tool turrets adopt dovetail groove guide rail, the ball screw is driven by stepping motor, the cutting feed is accurate, flexible and convenient, the production efficiency is quite high
