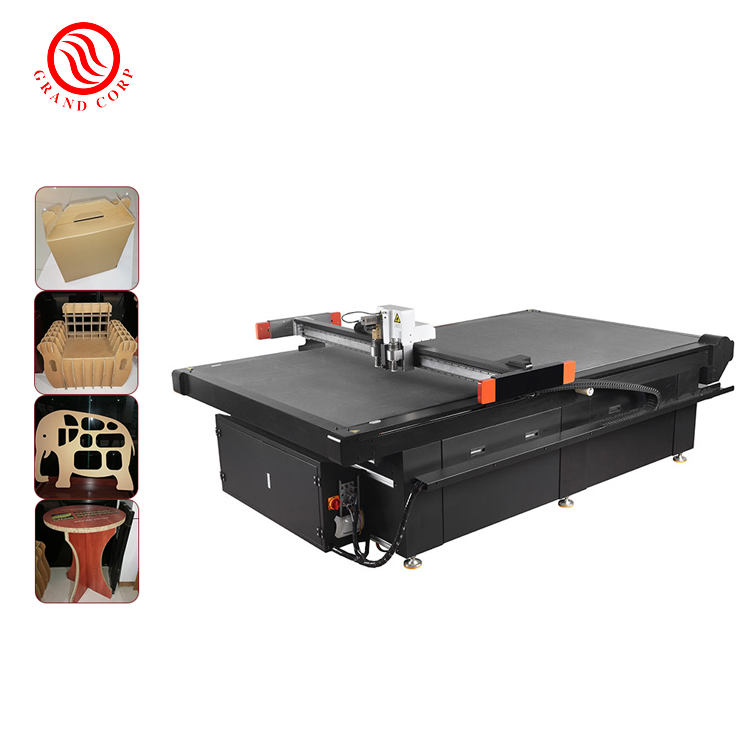

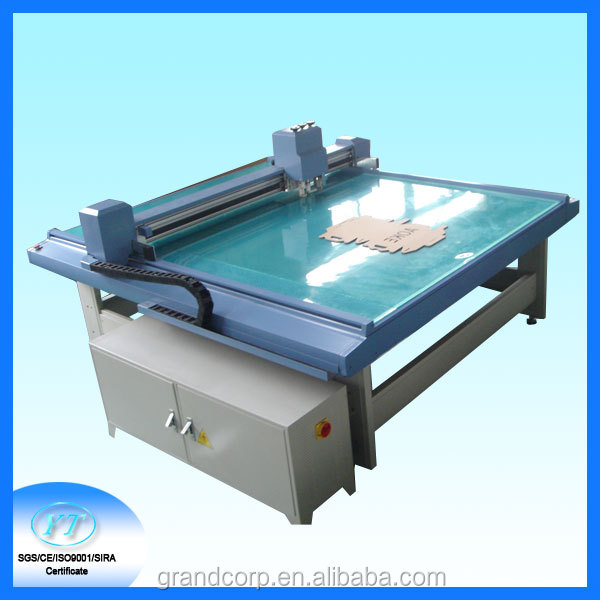

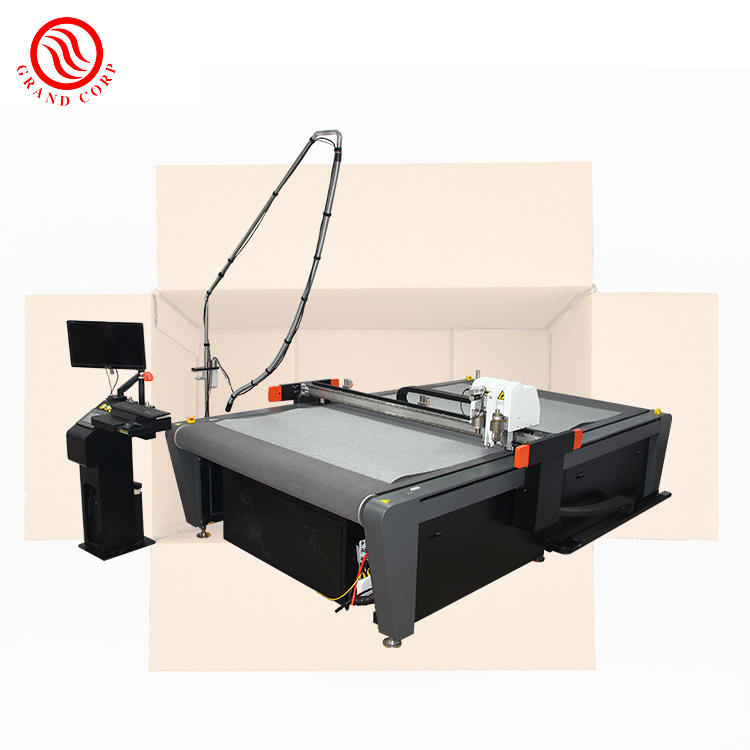

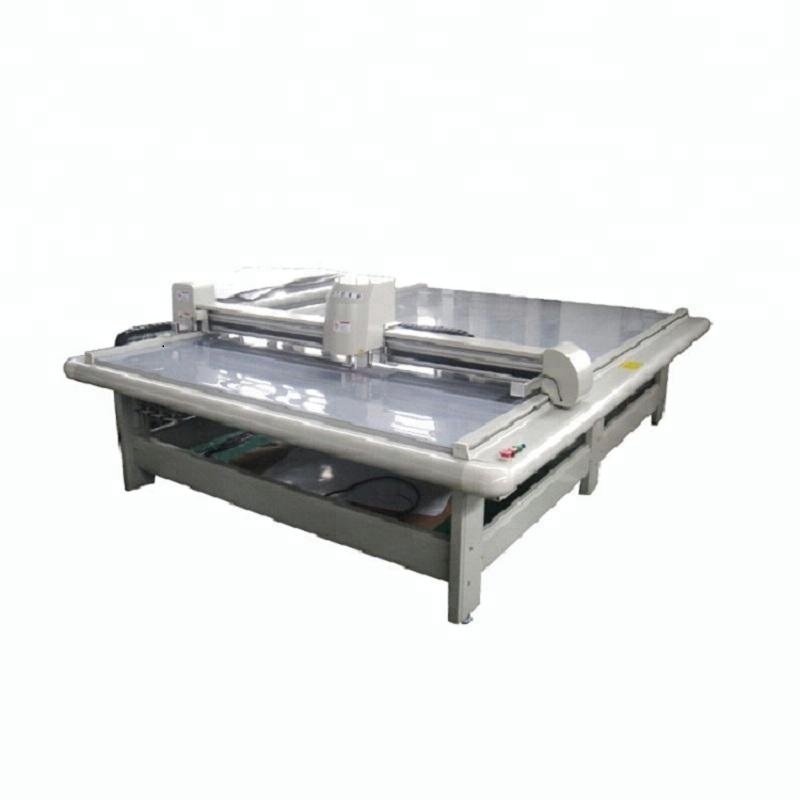

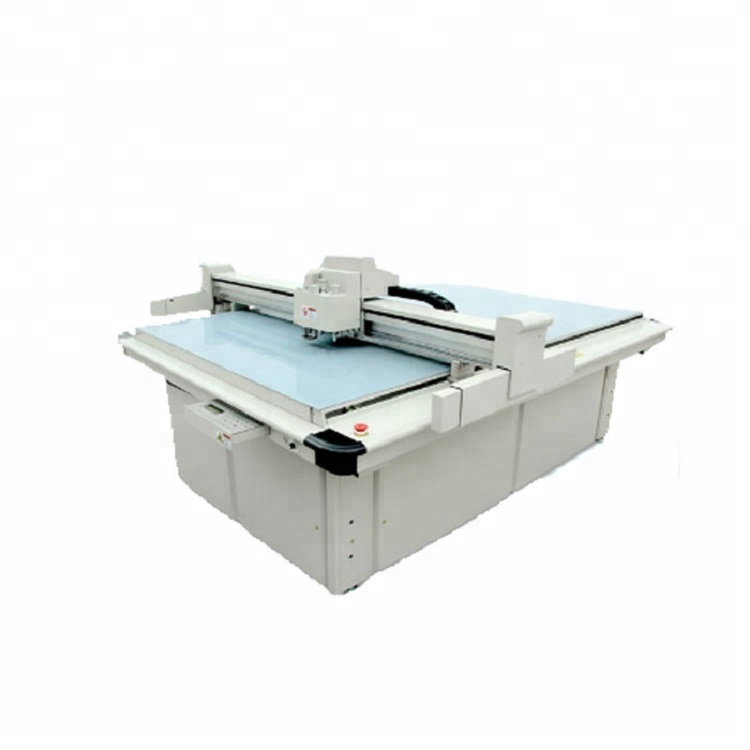

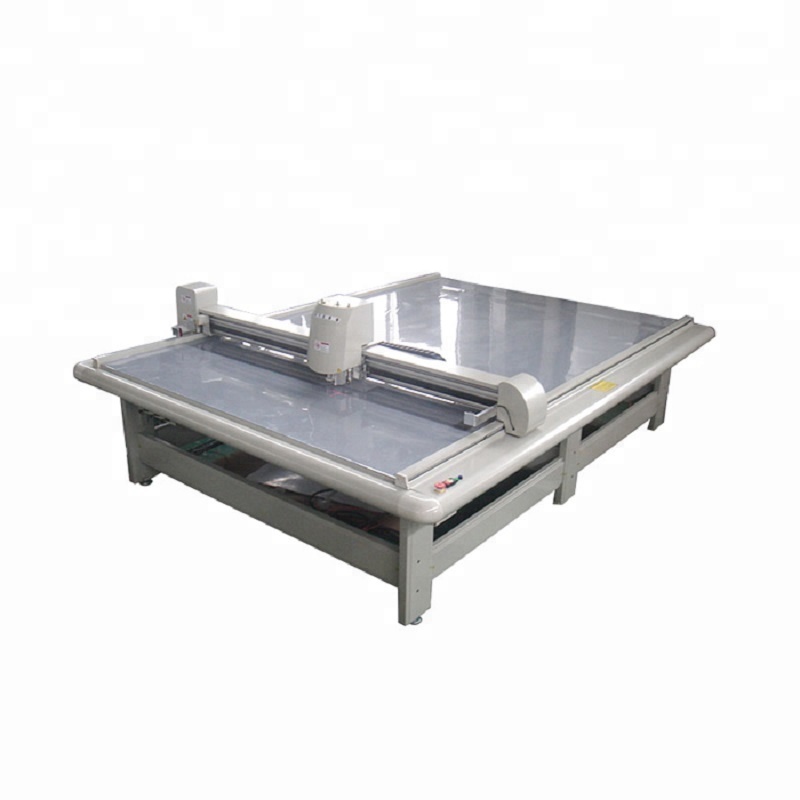

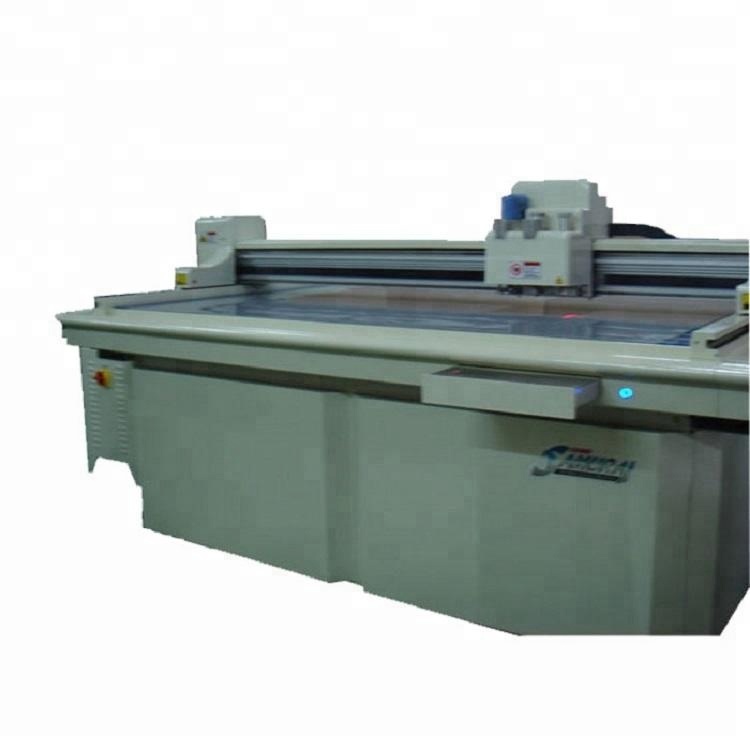

Box Sample Plotting Machine to Cut Corrugated Cardboard Paper Box

Specification

?

Model	502516	501713	501310
Effective cutting area(mm)	2500*1600	1700*1300	1300*1000
Configuration	Oscillating knife,drag knife,pen,creasing tool
Max speed	1000mm/s
Max cutting thickness	15mm
Smallest cutting diameter	6mm
Precision	≤0.1mm
Voltage	220V±10% 50HZ
Input cushion	32MB
Vacuum	5.5KW
Control system	Servo
Data format	HPGL, DXF, PDF
Data port	??????????????????????????????? PCI port
Data transmission speed	10MB/S
Option	?? Video registration system,V cut knife, foam cutting knife, convey belt
Occupy dimension(L*W*H) (mm)	3400*2460*1180	2600*2160*1180	2200*1860*1180
Note: Other sizes can be customized

?

Features?

1. Cutting function of oscillation tool

It can cut many different materials (such as corrugated paper, cardboard, offset??paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )

2. Folding function

It can fold corrugated paper, card paper and offset board into perfect folding line.

3. Function of dotted line

It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.

4. Location

??? Location with laser.

5. Drawing function

It can draw various high precision drawing cutting materials: corrugated board,??foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl?etc.

?

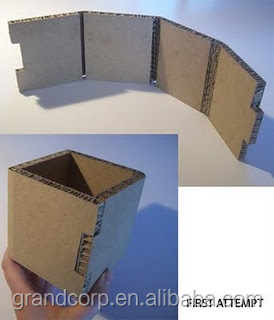

Cutting samples show to you, my dear friends!

?

?

?

?

Customized Content

A. Product Range

?Flat & rotary die board, cutting rules, creasing rules, creasing matrix, anvil cover, doctor blade, manual die making machine, auto-bender machine, sample making machine, nick grinder, trash-cleaning machine ,Folding gluer machine and so on. We are the general agent of Spanish polycut anvil cover and ?American Trupoint doctor blade in China .?

B. Our advantage

1.We are factory providing die making whole parts

2. MOQ or No MOQ

3. Delivery 7-30days on time

4. Top quality guaranteed by skilled workers, managing system and status of??facilities

5. Advanced equipment, such as, laser cutting machine, automatic bender machine. Sample making machine, etc

6. Customized size and spec /OEM available

7. Near Ningbo and Shanghai, convenient transportation?

8. With famous Grandcorp Brand and new YT brand

9. The general agent of Spanish Polycut anvil cover and American Trupoint doctor blade in China

C. Better service

1.QC System:100% inspection before shipment.

2.Drawing format: CAD / PDF/ DWG/ IGS/ STEP

3.Packaging: Standard package / Pallet or container / As per customized specifications

4.Payment Terms: 30 -50%T/T in advance,

70-50% balance before delivery; L/C, PayPal or Western Union is acceptable.

D. Shipment Terms

DHL, UPS, EMS, TNT, Fedex, sea transportation are available

E. Trade terms:

EXW, FOB, CIF preferred

?

?

?

The picture for you reference

?

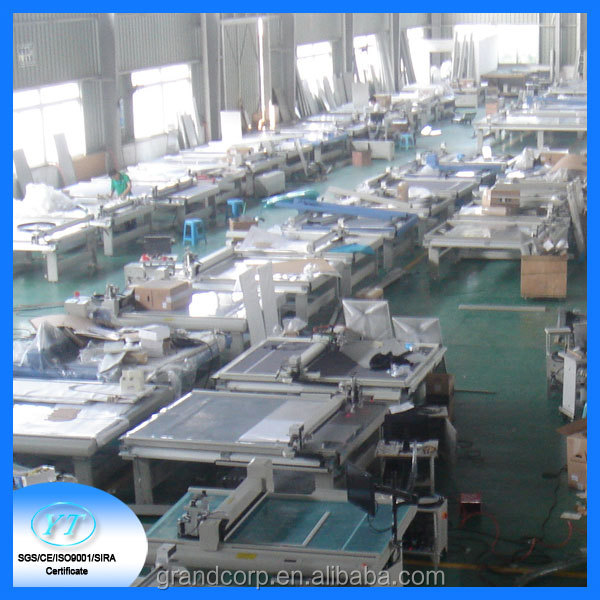

Our factory

?

Certificate?& Awards

??

Warranty

?

On-sale Service

We treat every customer sincerely, enthusiastically and equally. No matter who you are, once you need us help, our dedicated salesman and professional technicians will support at once.

After-sale Service

1. Warmly welcome you to our head office to have a professional training and observation

2. Our guarantee period is 1 year

3. Within one year, in case some a part of the machine is broken, except the consumable parts, such as the blade and cutting mats. We will exchange a new one for you, you should return the broken ones back to us if the broken parts are expensive and pay for the freights

4. After?1?year,?you?should?buy?the?new?parts?from?us

5. If you need help, you can send email to us or contact us by Skype or MSN online chatting tools. We offer 24h online service

?

?

?

?
