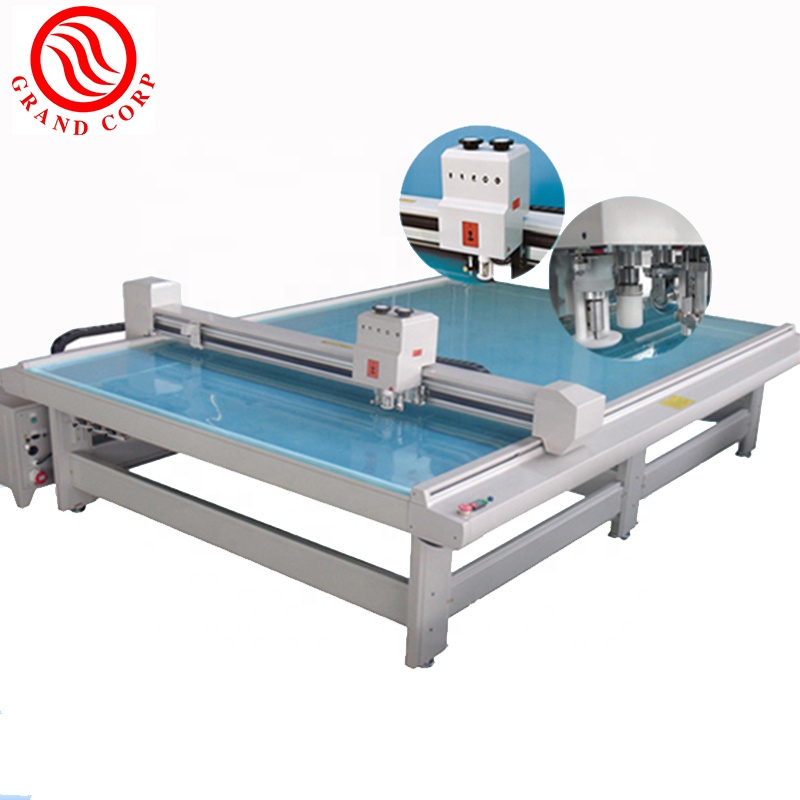

Carton box sample maker cutting table Cutting plotter with creasing wheel

?

GSP?Series?Costume?Pattern?Cutting?Plotter:

?

GSP?series?costume?pattern?cutting?plotter?is?the?star?product?in?the?pattern?cutting?machine,?and?occupy?a?large?market?share.?This?machine?is?designed?for?professional?costume?pattern?making.?It?can?meet?the?customer’s?demand?for?pattern?cutting?and?drawing?of?various?materials?by?its?cutting?and?drawing?function.?It?has?a?fast?writing?speed?and?good?cutting?quality?and?become?a?good?assistance?for?the?fashion?designer.

A.?Product?features:?

?1.?Cut?many?materials:?card?paper?kraft?paper,?red?hard?paper?etc

?2.?High?speed?cutting?and?high?cutting?accuracy

?3.?Import?synchronous?belt?for?power?drawing?

?4?Compatible?with?any?CAD?software?

?5?CE?Certified?

?6?Export?to?Worldwide

B.?Specifications:

?

Type	GSP0906	GSP1209	GSP1509
Effective?cutting?area(mm)	900*600	1200*900	1500*900
Driving?material	Import?synchronous?belt
Way?of?fixing?paper	Vacuum?holding
Cutting?Materials	Red?hard?paper,?plastic?board,?white?board,?kraft?paper,?fiber
Cutting?way	Drawing,?Half?cutting,?Whole?cutting
Cutting?thickness	0.5mm-2mm
Cutting?precision	<<=0.1mm
Overlapping?precision	<<=0.05mm
Resolution?ratio	0.025
Max?speed	1000mm/s
Working?time?and?character	Continuous?work,?operating?computer?and?cutting?at?the?same?time,?linear?high-speed?transmission?for?data.
Transmitting?port	International?standards:?parallel?port/RSC232?serial?port
Capacity?of?buffer?area	Buffer?area?of?large?capacity,?it?can?finish?high-speed?transmission?for?data?at?a?time
Instruction?set	International?standards:?HPGL?or?DMPL?form?can?be?selected,?it?is?compatible?with?all?kinds?of?CAD?softwares.
Numerical?control?board	LTD,?Chinese/English?operating?menu,?contact?button.
Tool?type	Special?steel?blade
Pen?type	General?signing?pen,?oil?pen,?ball?pen
Main?structure	Cutting?platform,?head,?driving?system,?control?cabinet,?control?panal,?vacuum?pump
Voltage	AC220V,?50HZ
Fuse?standard	5A

?

?C.?Tools:

D.?Company?Information:

?Our?cutting?plotter?factory?is?the?first?factory?to?produce?cutter?plotter?machine?in?china.?With?more?than?16?years?of?history?engaged?in?CNC?sample?cutting?machine,?in?2003,?it?developed?the?first?carton?box?sample?making?machine?in?China.?In?2007,?it's?sales?volume?leads?first?in?the?world.?In?2009,?the?factory's?10000?machine?is?produced.

E.?Application:

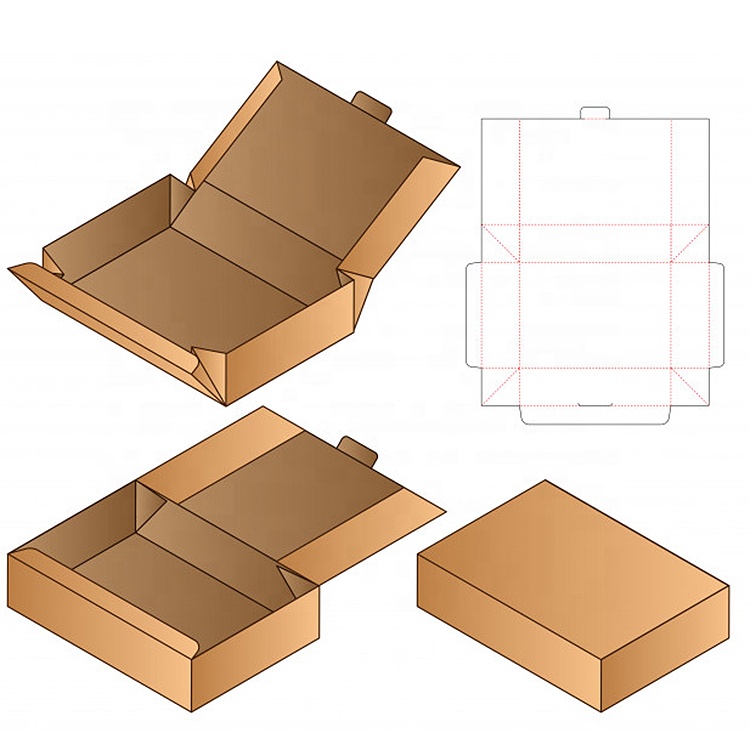

?Cutting?material:?all?kinds?of?cardboard,?kraft?paper,?plastic?board,?fibrous?cardboard,?rubber?sheet,?marking?film?etc.

?

F.?Packaging?&?Shipping:?

GSP0906:?

Plywood?carton?box?packing:?Size?1480mm*1200mm*500mm?CBM:?0.88mm?Weight:?200kgs

GSP1209:

Plywood?carton?box?packing:?Size?1780mm*1500mm*500mm?CBM:?1.33mm?Weight:?260kgs

GSP1509:

Plywood?carton?box?packing:?Size?2080mm*1500mm*500mm?CBM:?1.33mm?Weight:?280kgs

?

G.?Our?Services:

1.?QC?System:100%?inspection?before?shipment.

2.?Drawing?format:?CAD?/?PDF/?DWG/?IGS/?STEP

3.?Packaging:?Standard?package?/?Pallet?or?container?/?As?per?customized?specifications

4.?Payment?Terms:?30?-50%T/T?in?advance,

???70-50%?balance?before?delivery;?L/C,?PayPal?or?Western?Union?is?acceptable.

H.?Shipment?Terms:

DHL,?UPS,?EMS,?TNT,?Fedex,?sea?transportation?are?available

I.?Trade?terms:

EXW,?FOB,?CIF?preferred

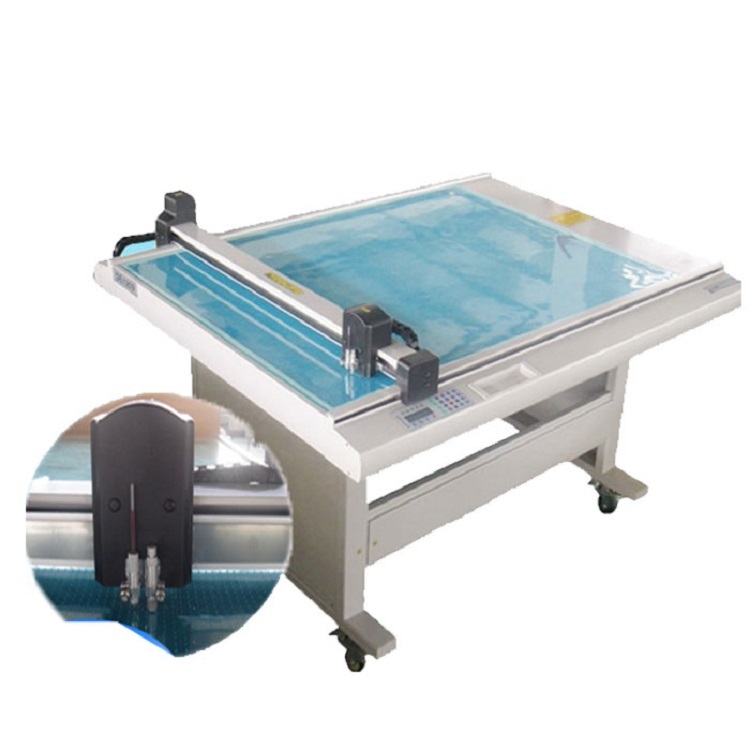

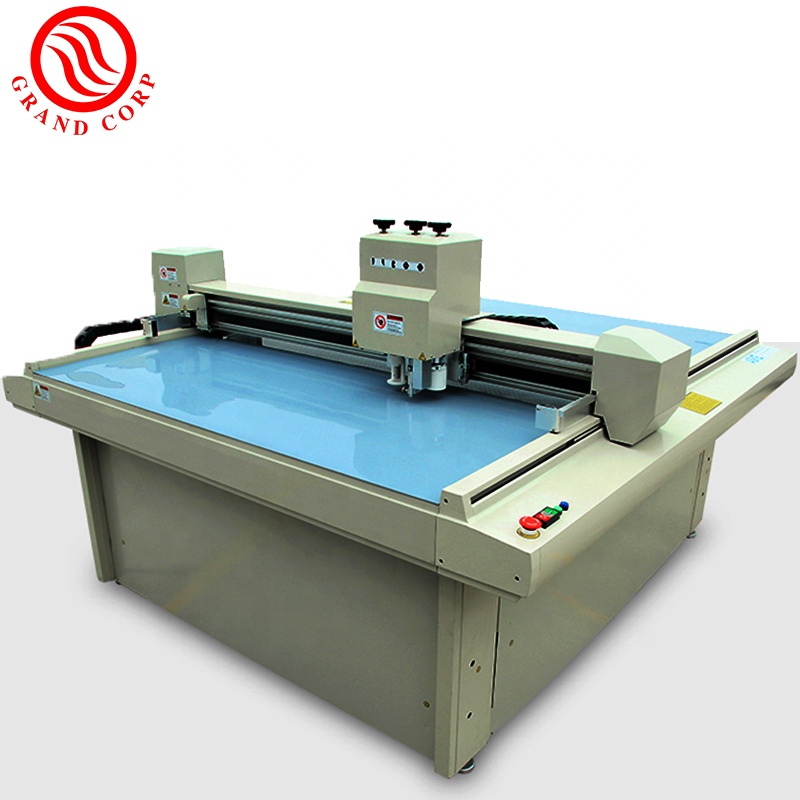

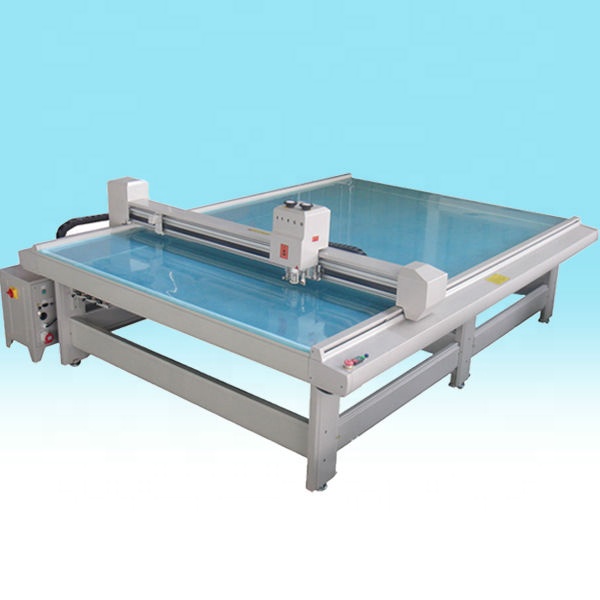

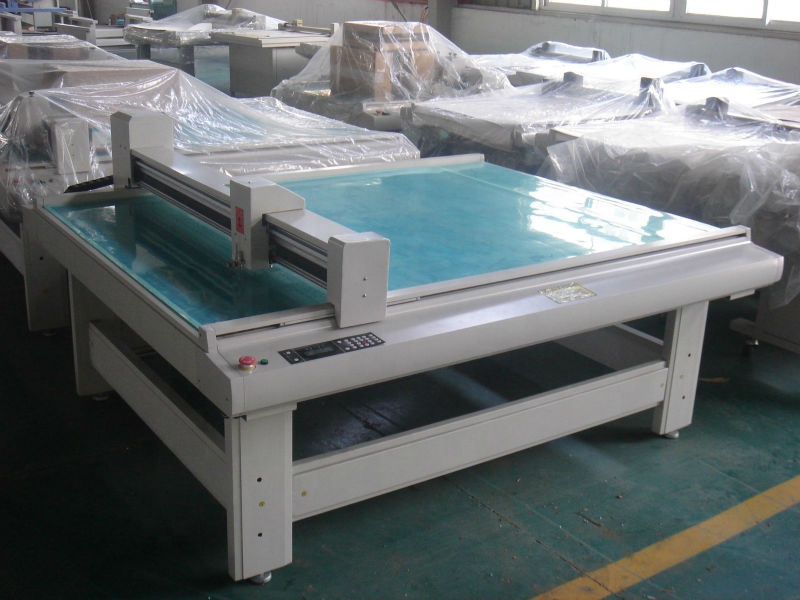

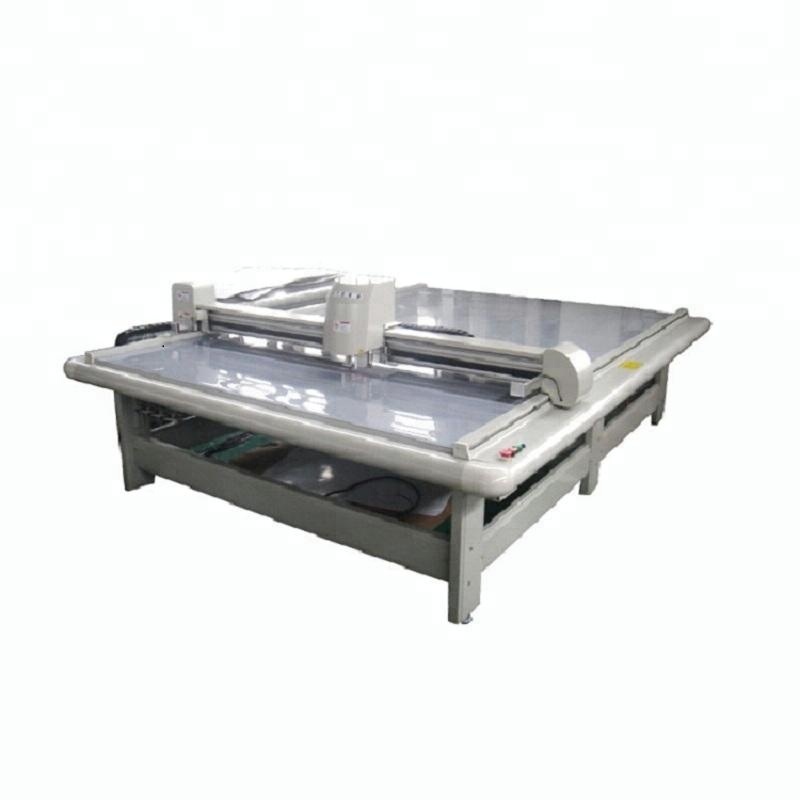

The?pictures?for?your?reference

?

?
