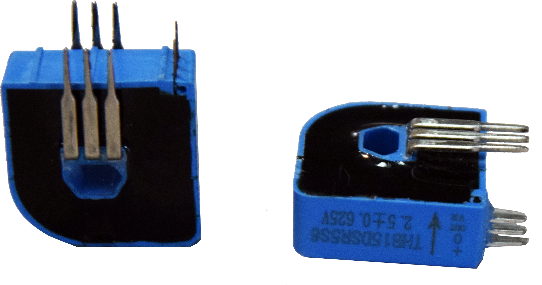

Closed loop Hall current sensor
Options:
Basic Info
| Model No. | THB_DS5S6 |
|---|---|
| place of origin | China |
| use | Electronic |
| Coil structure | Toroidal |
Product description
|
Product introduction： |
Application： |
|
? Single power supply: +5v DC ? Customized according to requirements; ? Both perforation and PCB measurement; ? Hall effect principle - closed loop current sensor; ? The output is a voltage signal with polarity and no negative value; ? It can measure the current of DC, AC, pulse and various irregular waveforms under the condition of electrical isolation; |
? Application on Inverter ? Standard battery monitoring ? Variable speed drive applications ? UPS uninterruptible power supply ? Solar power management system ? Drive control of variable frequency household appliances |
Electrical
characteristics：
Parameter
Symbol
THB06DS5S6
THB15DS5S6
THB25DS5S6
THB50DS5S6
Rated current
IPN(A)
06
15
25
50
Measuring range
IP(A)
0～±19.2
0～±48
0～±84
0～±150
Measure resistance
RM(Ω)
100±0.1%
50±0.1%
25±0.1%
25±0.1%
Coil turn ratio
NP/NS
1:960
1:1200
1:1000
1:2000
Output voltage
VO(V)
2.5±0.625*(IP/IPN)
Working power supply
VC(V)
+5V DC±5%
Insulation voltage
VD(V)
50/60Hz，1min，4kV；RMS
General parameters：
Project
Condition
Date
Unit
Accuracy XG
@ IPN,T=25℃
<±0.7
%
Zero offset voltage VOE
@ IP=0,T=25℃
<±20
mV
Current offset
temperature drift VOT
@ IP=0,-40～+85℃
<±0.2
mV/℃
Linearity εr
≤0.1
%FS
Follow accuracy di/dt
＞50
A/μs
Response time tra
@ 90% of IPN
<1.0
μs
Operating bandwidth BW
-1dB
DC-200
kHZ
Working temperature TA
-40～+85
℃
Storage temperature TS
-55～+125
℃
Static power consumption IC
10+Is
mA
Product weight m
10
g
Shell material
PBT material containing
30% glass fiber，Flame retardant grade：UL94-
V0;
Standard
IEC60950-1:2001 EN50178:1998 SJ20790-2000

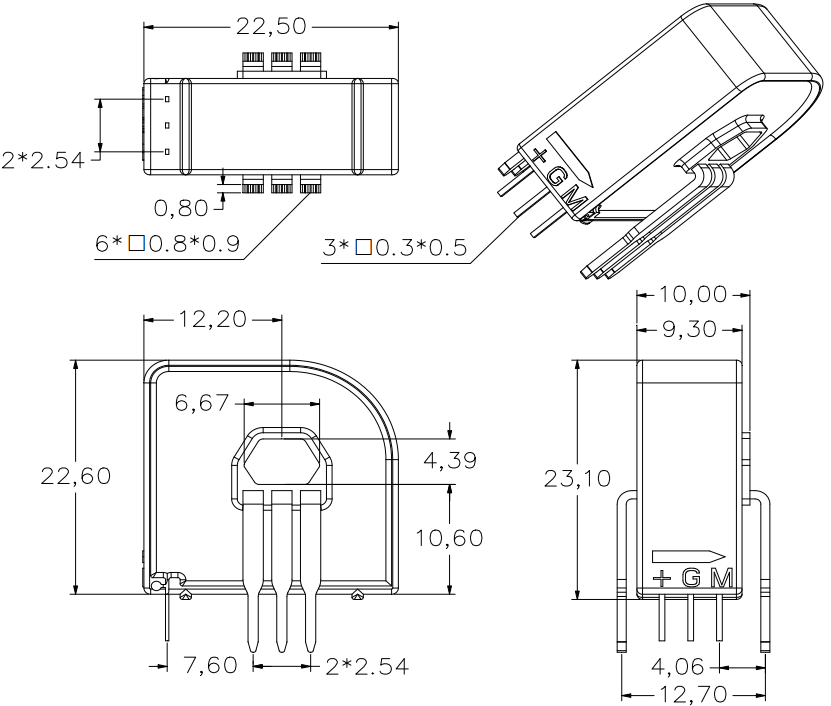

Structural drawing: (mm)

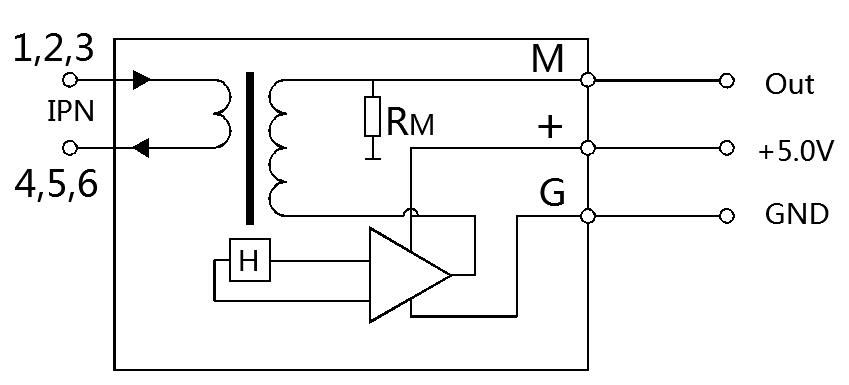

Connection diagram:
|
Primary wire turn |
Primary rated current (A) |
Output voltage (V) |
Enter PIN connection |
|
1 |
±6,±15,±25,±50 |
2.5±0.625 |
|
|

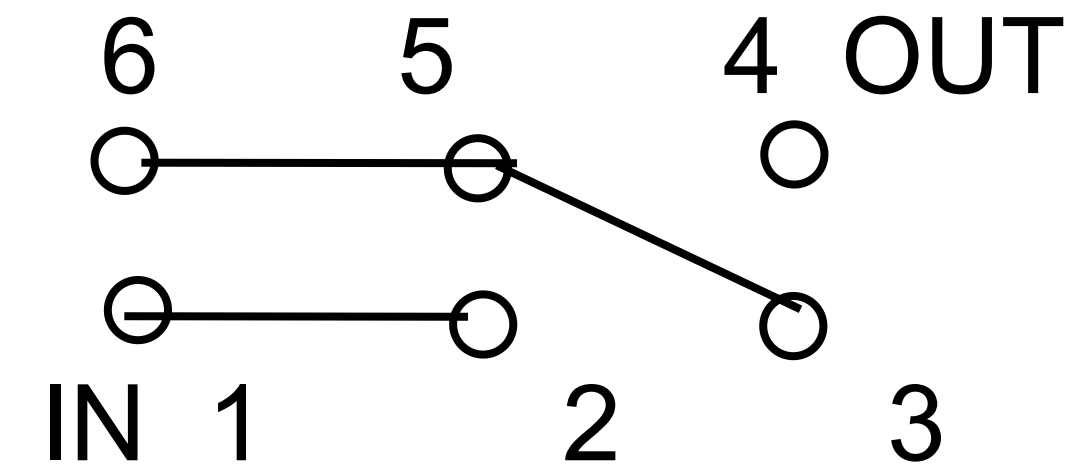

2 |
±3,±7.5,±12.5,±25 |
2.5±0.625 |
|
|

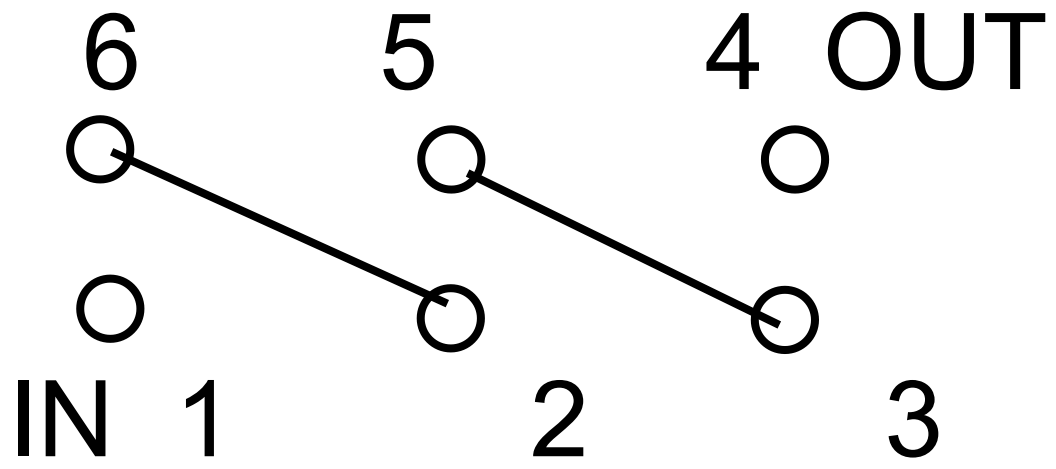

3 |
±2,±5,±8.3,±16.6 |
2.5±0.625 |
|
Remarks:
1. When the measured current passes through the primary pin of the sensor, there is a corresponding voltage signal output at the output end.(Note: wrong wiring may damage the sensor)
2. Products with different current ratings can be designed according to customers' requirements, and the output voltage of the sensor can be selected;
