Current monitioring high frequency transformer

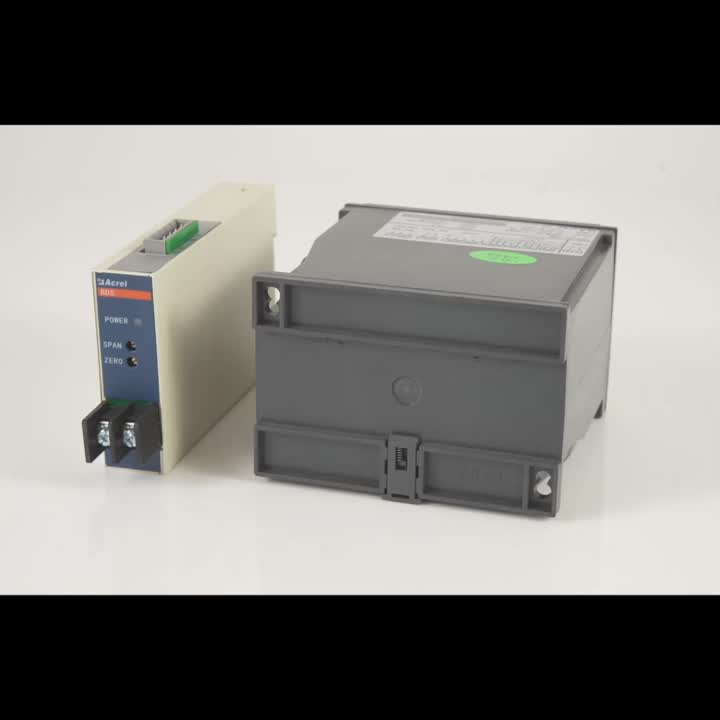

Video

1 / 5

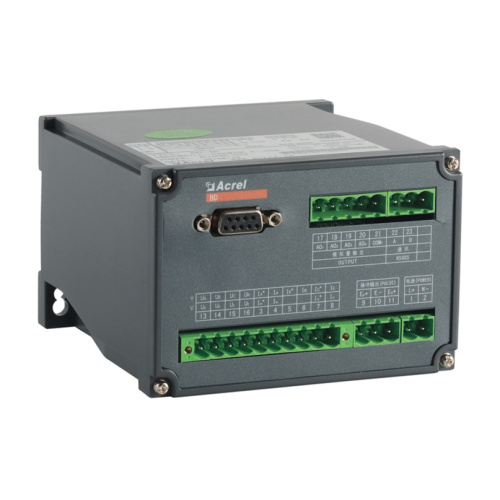

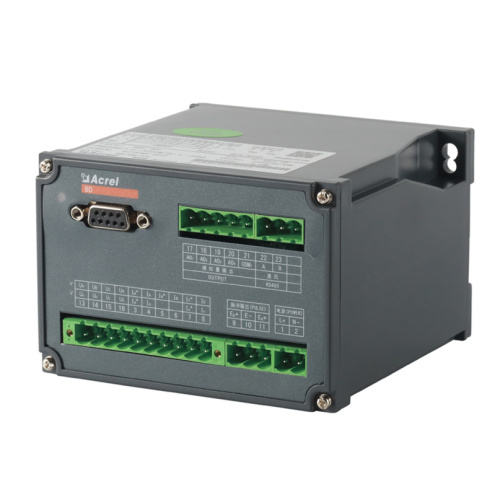

Current monitioring high frequency transformer

$215.00

≥1 Set/Sets

Options:

BD-AI
BD-AV
BD-DI
BD-DV
BD-3P
BD-4E

Get Latest Price

Basic Info

Model No.	BD-4E
Brand Name	Acrel
place of origin	China
use	Power, Current, Electronic, High Frequency
Coil structure	Toroidal
Number of coils	Autotransformer
Brand Name	Acrel
Output	4-20ma
Place of origin	Jiangsu, China
Usage	Measuring Current
Power Supply	Dc12v/24v
Communication	Rs485 Port Modbus-Rtu Protocol
Installation	Din Rail Installation
Type	Measuring Current Transducers
Theory	Current Transducer Dc 4-20ma
Model Number	Bd-4e
Description	Current Transducer Digital Output
Product Name	Current Monitioring High Frequency Transformer

Product description

Current monitioring high frequency transformer

BD series Current monitioring high frequency transformer is olate and convert electrical parameters(e.g.current,voltage,frequency,power and power factor) in the power grid into DC analog signal or digital signal.current transducer digital output complies with GB/T13850-1998 and IEC-688.

Specification

Type	Function
BD-AI	Input:AC 0-1/5A; Output:4-20mA; Power:AC/DC85-270V
BD-AV	Input:AC0-100/300/500V; Output:4-20mA; Power:AC/DC85-270V
BD-DI	Input:DC4-20mA,0-20mA; Output:4-20mA or 0-5V; Power:AC/DC85-270V or DC24V
BD-DV	Input:DC0-10V,0-75mV; Output:4-20mA or 0-5V; Power:AC/DC85-270V or DC24V
BD-3I3	Input:3 phase AC 0-1/5A; Output:4-20mA; Power:AC/DC85-270V
BD-3(4)V3	3P3W/3P4W,Input:0-120/300/500V; Output:4-20mA/0-5A; Power:AC/DC85-270V or DC24V
BD-3(4)P	3P3W/3P4W,Input:0-1/5A,0-125/250/450V; Output:4-20mA; Power:AC/DC85-270V,1 channel analog output
BD-3P/Q/I	3P3W input, measuring P,Q; Power:AC/DC85-270V;3 channels analog output
BD-4E	3P3W, measuring I,U,P,Q,F,PF,kWh,Kvarh,etc; 1 channel analog output,2 channels energy impulse output,RS485 Modbus-RTU
BD-4EA	3P3W,measuring and displayingmeasuring I,U,P,Q,F,PF,kWh,Kvarh,etc;1 channel analog output,2 channels energy impulse output,RS485 Modbus-RTU

Measurement
- Voltage\Current\Power\Power factor\Frequency
- Overload: 1.2 times of rated value
- Analog Output DC 0-5V/0-10V/0-20mA/4-20mA

signal module current transmitter

Quotation Sheet

voltage and current generating transducer

Packing&Delivery

Company Profile

Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]

Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory. Warmly welcome you to visit and investigate our factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
