customized three dimension force sensor factory supply

·High accuracy, strong Anti-side load

·IP66, easy to install

·could be customized according to client`s need

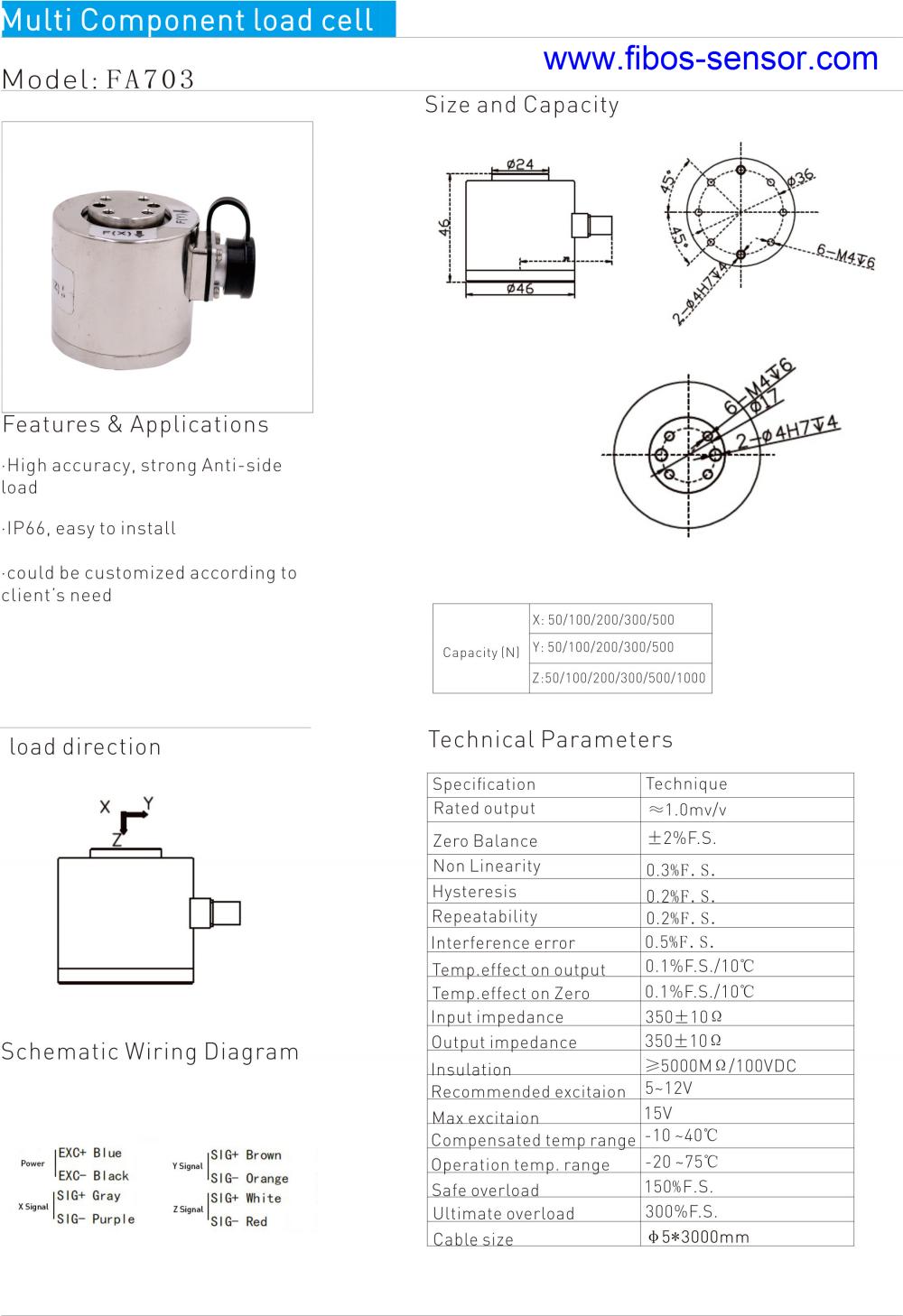

technical parameters
Specifications	Technique
Rated output	≈1.0mv/v
Zero balance	±2%F.S.
Non-linearity	0.3%F.S.
Hysteresis	0.2%F.S.
Repeatability	0.2%F.S.
Interference error	0.5%F.S.
Temp.effect on output	0.1%F.S./10℃
Temp.effect on zero	0.1%F.S./10℃
Input impedance	350±10Ω
Output impedance	350±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5-12V
Maximum excitation	15V
Compensated temp range	-10~40℃
Operation temp range	-20~75℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Cable size	φ5*3000mm

Professional customized load sell solution provider



1. MOQ?

Different load cell ,different MOQ. Samples available

2. How long will client get reply from us?
Usually within 12 hours. Please call the sales directly under emergency

3. Price?
Quality first, price reasonable

4. Visit factory?
Visit factory is welcome

5. Lead time?
Load cell sensor in stock, shipped within 1-2 working days.
Load cell sensor not in stock, usually 10-20 work days.

6. Payment terms?
T/T, Western Union, L/C, Escrow, paypal or Cash



7. Delivery?
DHL, Fedex, TNT ,EMS, UPS or by Sea etc.

8. Load cell sensor warranty?
   12 months.

9. after-sale service?

After-sale service is available since the load cell sensors are received. The after-sales service will be done through e-mail, skype, trade manager, telephone, wechat or QQ.
